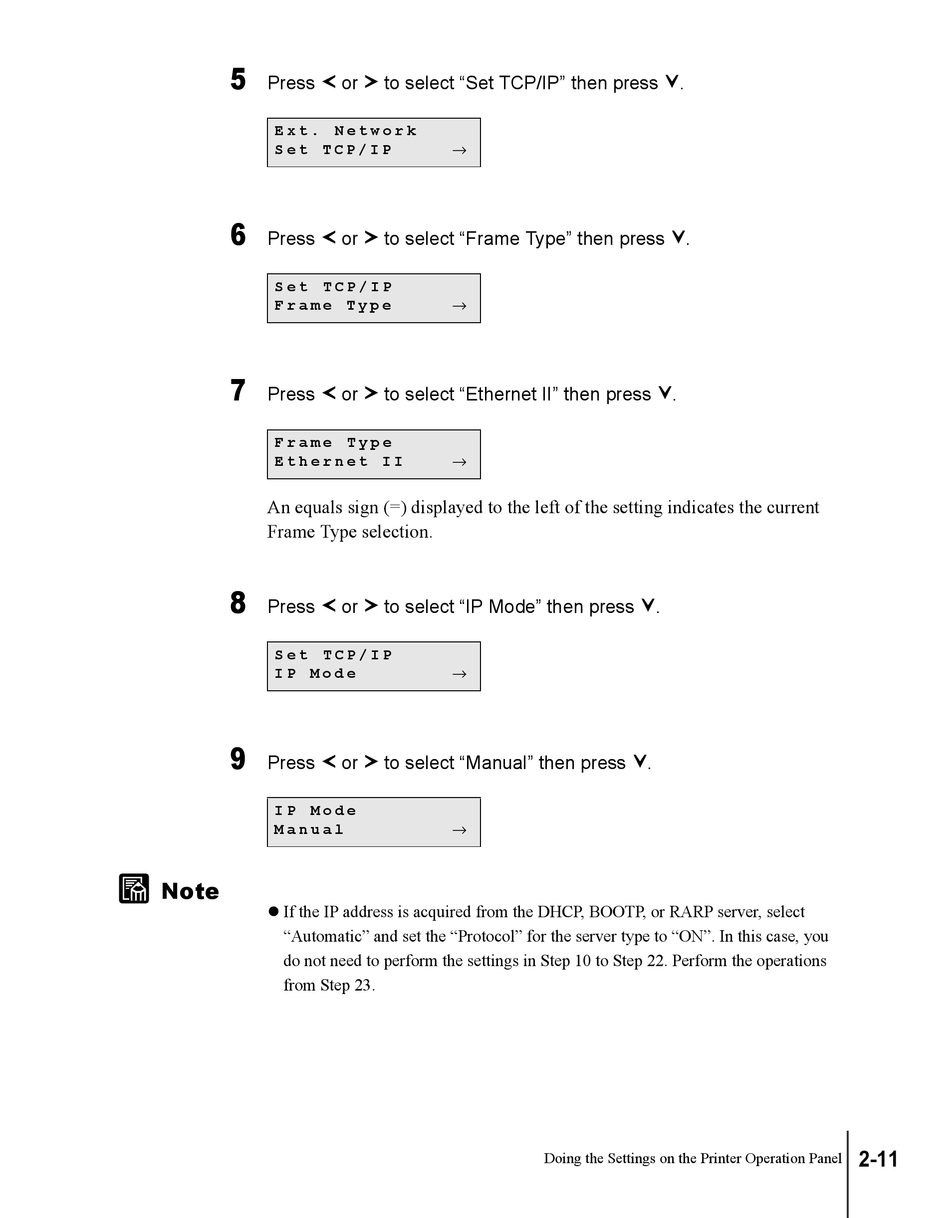

5
Press
E x t . N e t w o r k
S e t T C P / I P
6
Press
S e t T C P / I P
F r a m e T y p e
7
Press
F r a m e T y p e
E t h e r n e t I I
An equals sign (=) displayed to the left of the setting indicates the current
Frame Type selection.
8
Press
S e t T C P / I P
I P M o d e
9
Press
I P M o d e
M a n u a l
Note
z If the IP address is acquired from the DHCP, BOOTP, or RARP server, select
"Automatic" and set the "Protocol" for the server type to "ON". In this case, you
do not need to perform the settings in Step 10 to Step 22. Perform the operations
from Step 23.
or
to select "Set TCP/IP" then press
→
or
to select "Frame Type" then press
→
or
to select "Ethernet II" then press
→
or
to select "IP Mode" then press
→
or
to select "Manual" then press
→
.
.
.
.
.
Doing the Settings on the Printer Operation Panel
2-11
