8

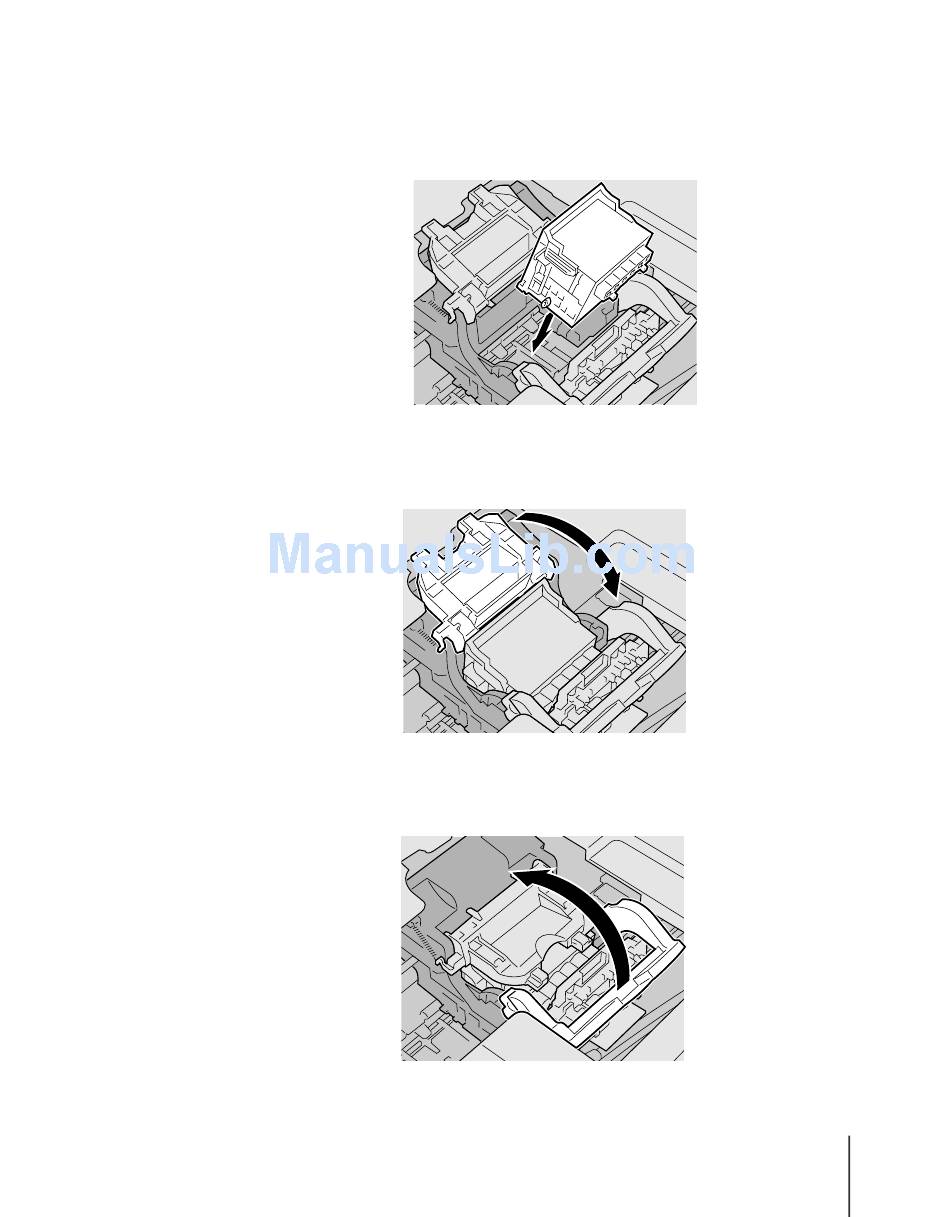

With the nozzles facing down and the electrical contacts facing in,
insert the printhead gently into the carriage below.
Make sure that the nozzles are not touching the carriage and the printhead is
inserted completely.
9
Pull the printhead lock cover toward you and lower it completely until
it locks.
10
Raise the printhead lock lever and push in toward the printer until it
locks.
1-15
4 Install the Printhead
