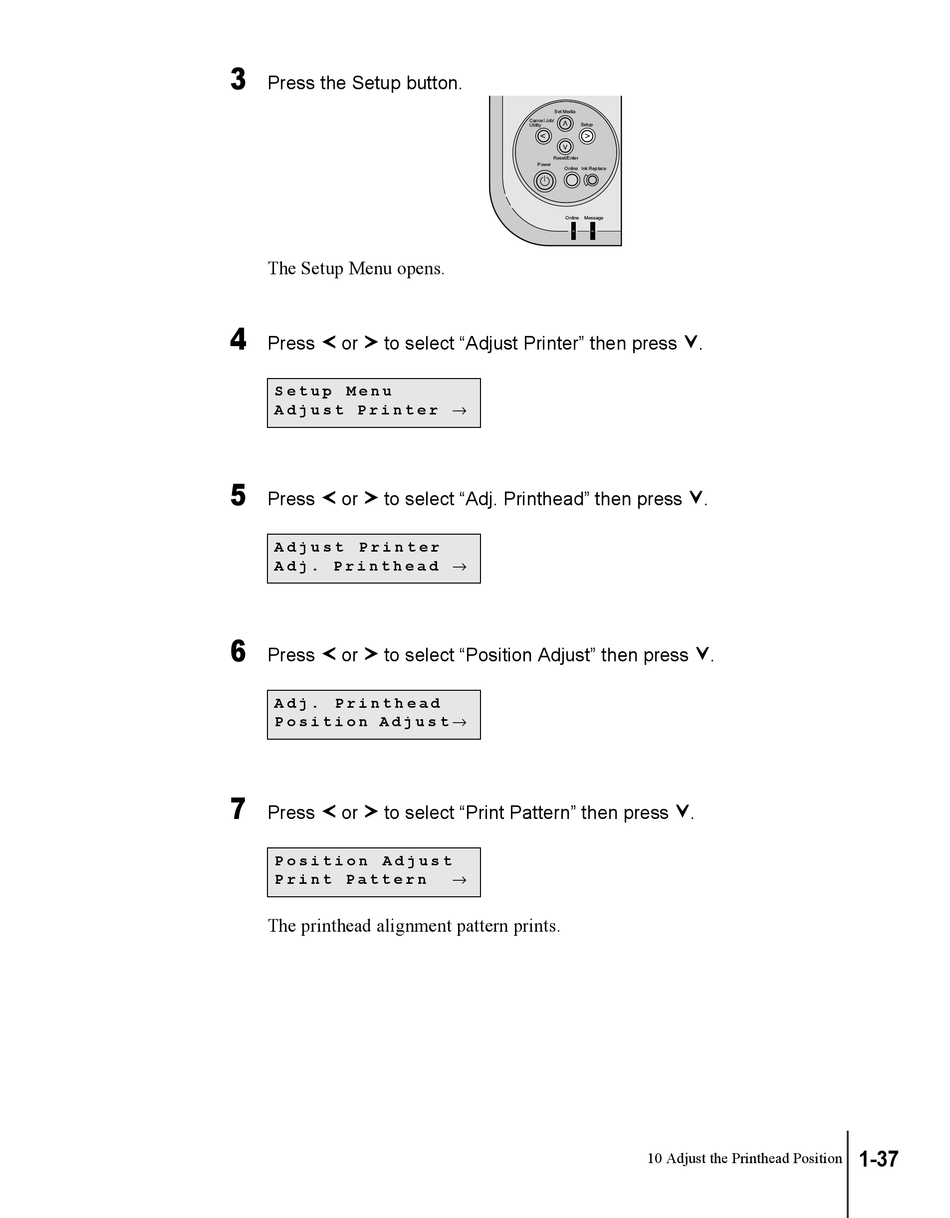

Canon imagePROGRAF W2200S Setup Manual page 49

3
Press the Setup button.
The Setup Menu opens.
4
Press or to select "Adjust Printer" then press
S e t u p M e n u
A d j u s t P r i n t e r →
5
Press or to select "Adj. Printhead" then press
A d j u s t P r i n t e r
A d j . P r i n t h e a d →
6
Press or to select "Position Adjust" then press
A d j . P r i n t h e a d
P o s i t i o n A d j u s t →
7
Press or to select "Print Pattern" then press
P o s i t i o n A d j u s t
P r i n t P a t t e r n
The printhead alignment pattern prints.
et Media
Cancel Job/
Utility etup
Reset/Enter
Power
Online Ink Replace
Online Message
→
.
.
.
.
10 Adjust the Printhead Position
1-37
