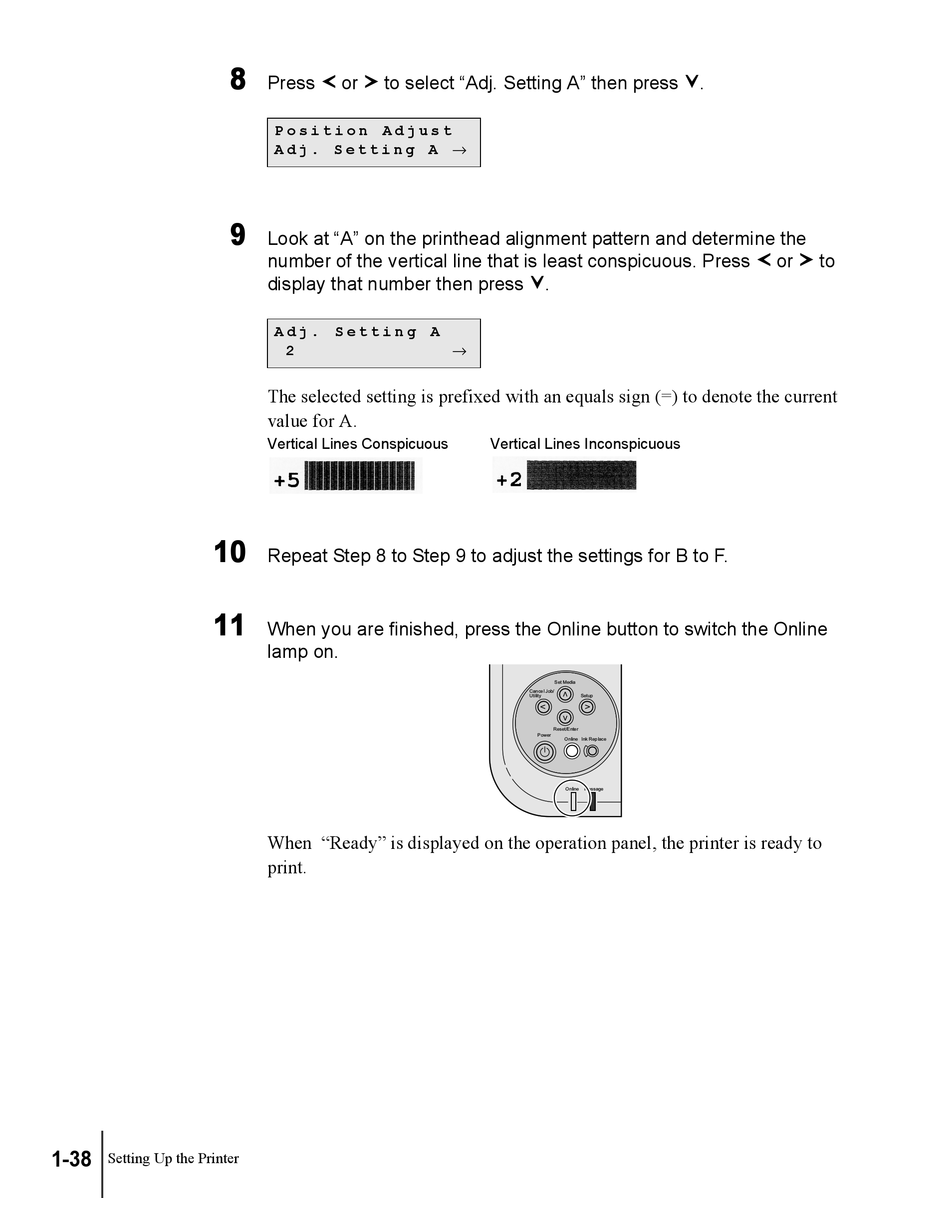

Canon imagePROGRAF W2200S Setup Manual page 50

8
9
10
11
1-38
Setting Up the Printer
Press or to select "Adj. Setting A" then press
P o s i t i o n A d j u s t
A d j . S e t t i n g A →
Look at "A" on the printhead alignment pattern and determine the
number of the vertical line that is least conspicuous. Press
display that number then press
A d j . S e t t i n g A
2
The selected setting is prefixed with an equals sign (=) to denote the current
value for A.
Vertical Lines Conspicuous
Repeat Step 8 to Step 9 to adjust the settings for B to F.
When you are finished, press the Online button to switch the Online
lamp on.
When "Ready" is displayed on the operation panel, the printer is ready to
print.
.
→
Vertical Lines Inconspicuous
et Media
Cancel Job/
Utility etup
Reset/Enter
Power
Online Ink Replace
Online Message
.
or to
