5.3 Installation

Inner side of door up to dead-bolt
stop (A)
17.35 mm to 18.85 mm
18.95 mm to 20.45 mm
20.55 mm to 20.95 mm
21.05 mm to 22.25 mm
22.35 mm to 23.85 mm
23.95 mm to 25.45 mm

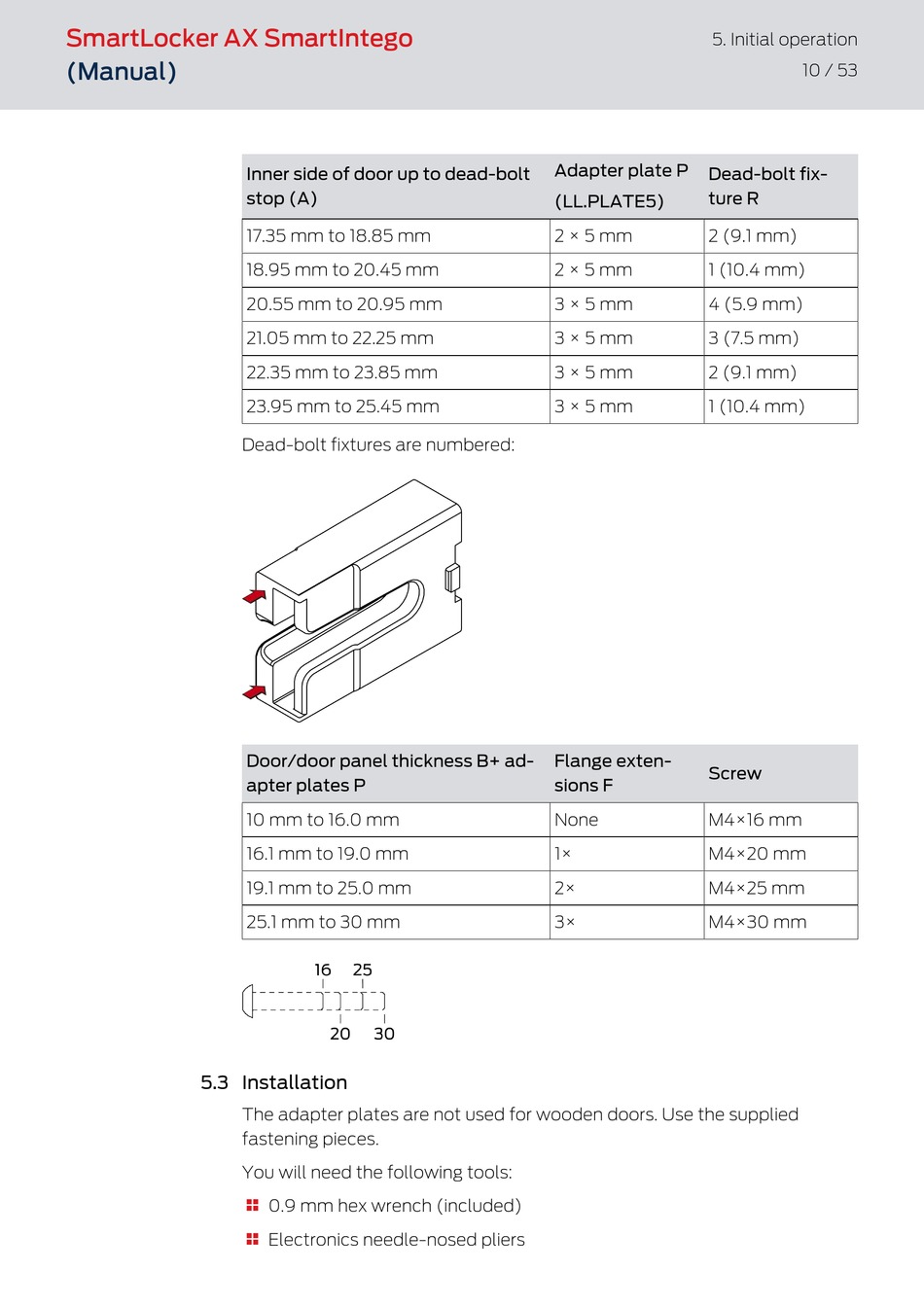

Dead-bolt fixtures are numbered:
Door/door panel thickness B+ ad-
apter plates P
10 mm to 16.0 mm
16.1 mm to 19.0 mm
19.1 mm to 25.0 mm
25.1 mm to 30 mm
The adapter plates are not used for wooden doors. Use the supplied
fastening pieces.
You will need the following tools:
0.9 mm hex wrench (included)

Electronics needle-nosed pliers

5. Initial operation
Adapter plate P
Dead-bolt fix-
ture R
(LL.PLATE5)
2 × 5 mm 2 (9.1 mm)
2 × 5 mm 1 (10.4 mm)
3 × 5 mm 4 (5.9 mm)
3 × 5 mm 3 (7.5 mm)
3 × 5 mm 2 (9.1 mm)
3 × 5 mm 1 (10.4 mm)
Flange exten-
Screw
sions F
None M4×16 mm
1× M4×20 mm
2× M4×25 mm
3× M4×30 mm
