SmartLocker AX

4.3 Installation

(Manual)

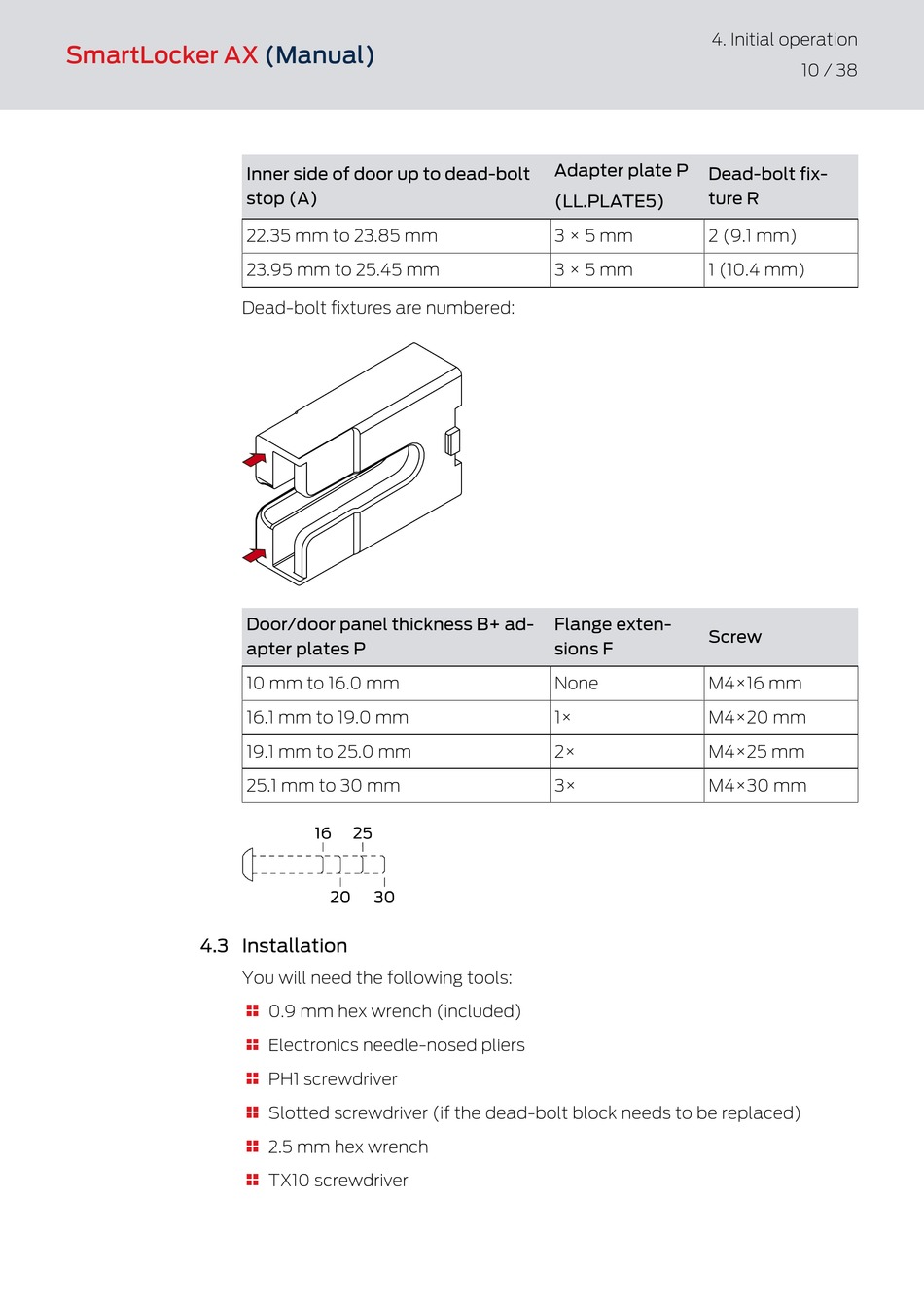

Inner side of door up to dead-bolt
stop (A)
22.35 mm to 23.85 mm
23.95 mm to 25.45 mm
Dead-bolt fixtures are numbered:
Door/door panel thickness B+ ad-
apter plates P
10 mm to 16.0 mm
16.1 mm to 19.0 mm
19.1 mm to 25.0 mm
25.1 mm to 30 mm
You will need the following tools:
0.9 mm hex wrench (included)

Electronics needle-nosed pliers

PH1 screwdriver

Slotted screwdriver (if the dead-bolt block needs to be replaced)

2.5 mm hex wrench

TX10 screwdriver

4. Initial operation
Adapter plate P
Dead-bolt fix-
ture R
(LL.PLATE5)
3 × 5 mm 2 (9.1 mm)
3 × 5 mm 1 (10.4 mm)
Flange exten-
Screw
sions F
None M4×16 mm
1× M4×20 mm
2× M4×25 mm
3× M4×30 mm
10 / 38
