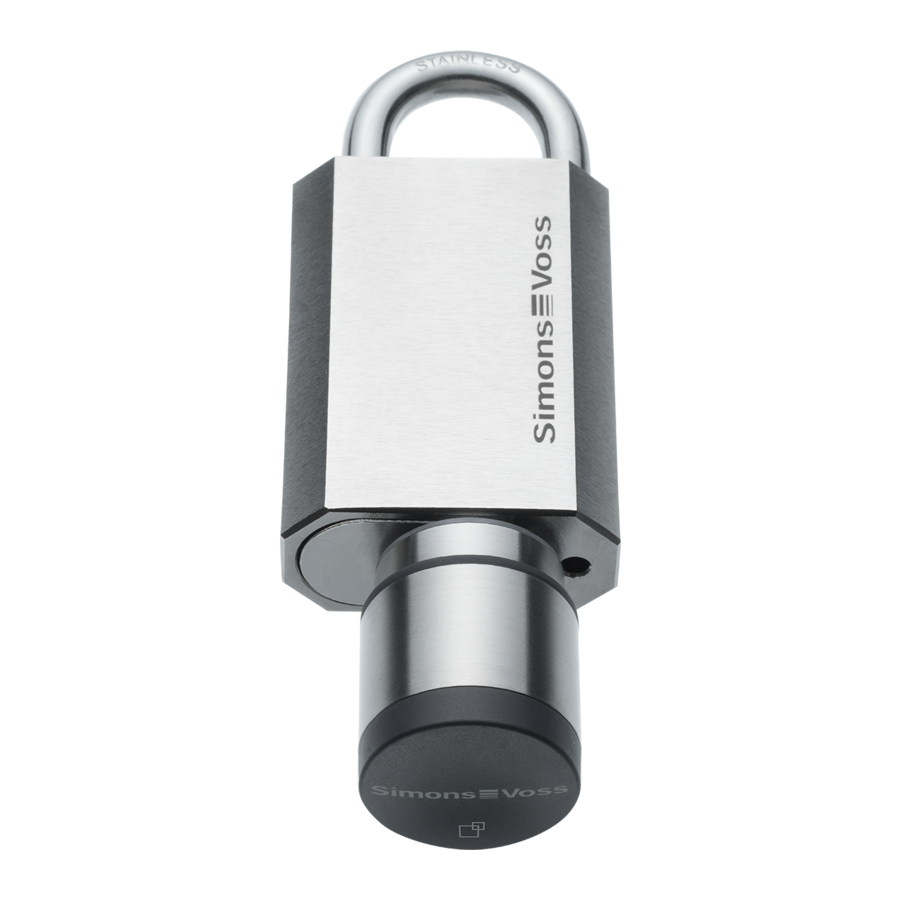

SmartIntego
PadLock AX
Manual
24.06.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartIntego PadLock AX and is the answer not in the manual?

Questions and answers

Related Manuals for Simons Voss Technologies SmartIntego PadLock AX

Summary of Contents for Simons Voss Technologies SmartIntego PadLock AX

  • Page 1 SmartIntego PadLock AX Manual 24.06.2021...

  • Page 2: Table Of Contents

    Contents SmartIntego PadLock AX (Manual) 2 / 21 Contents General safety instructions........................ 3 Product-specific safety instructions.................... 6 Operation.............................. 7 Battery replacement .......................... 9 Signalling .............................. 14 Technical specifications ......................... 15 Scale drawings.............................. 16 EU/UK Declaration of conformity.......................  19 Help and other information .........................  20...

  • Page 3: General Safety Instructions

    1. General safety instructions SmartIntego PadLock AX (Manual) 3 / 21 1 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury...
  • Page 4 1. General safety instructions SmartIntego PadLock AX (Manual) 4 / 21 CAUTION Fire hazard posed by batteries The batteries used may pose a fire or burn hazard if handled incorrectly. 1. Do not try to charge, open, heat or burn the batteries.
  • Page 5 1. General safety instructions SmartIntego PadLock AX (Manual) 5 / 21 Communication interference due to metallic surfaces This product communicates wirelessly. Metallic surfaces can greatly reduce the range of the product. Do not mount or place the product on or near metallic surfaces.

  • Page 6: Product-Specific Safety Instructions

    2. Product-specific safety instructions SmartIntego PadLock AX (Manual) 6 / 21 2 Product-specific safety instructions IMPORTANT Mechanical damage to the knob as a result of obstacles If the knob can knock against the wall or other objects as a result of the installation situation, it may become damaged.

  • Page 7: Operation

    3. Operation SmartIntego PadLock AX (Manual) 7 / 21 3 Operation Open 1. Activate your identification medium on the knob. 2. Turn the knob fully clockwise. Shackle unlocked. 3. Open the shackle. Padlock open. Closing 1. Close the shackle. SL version: Shackle locks into place automatically.
  • Page 8 3. Operation SmartIntego PadLock AX (Manual) 8 / 21 3. ML version only: Turn the knob fully counter-clockwise. Shackle locked. 4. Check for correct closure. Padlock locked.

  • Page 9: Battery Replacement

    4. Battery replacement SmartIntego PadLock AX (Manual) 9 / 21 4 Battery replacement NOTE Battery contact malfunction due to grease film When touching batteries, leave a thin film of skin grease on the batteries. This film deteriorates the contact between the electronics and the batter- ies.
  • Page 10 4. Battery replacement SmartIntego PadLock AX (Manual) 10 / 21 3. Align the special tool so that the logo is parallel to the recess. 4. Hold the special tool and knob cover firmly at the same time and turn them together 1-2° clockwise first and then counter-clockwise.
  • Page 11 4. Battery replacement SmartIntego PadLock AX (Manual) 11 / 21 6. Push the latch inward and open the battery cover. 7. Remove the batteries with the special magnetic tool.
  • Page 12 4. Battery replacement SmartIntego PadLock AX (Manual) 12 / 21 8. Insert the new batteries (positive poles touching in the middle). 9. Close the battery cover. Cylinder signals the successful change with triple red flashing and beeping. 10. Put on the cover.
  • Page 13 4. Battery replacement SmartIntego PadLock AX (Manual) 13 / 21 11. Turn the cover clockwise. The cover snaps into place with one click. 12. Carry out a function test. Batteries are replaced.

  • Page 14: Signalling

    5. Signalling SmartIntego PadLock AX (Manual) 14 / 21 5 Signalling Signalling Meaning Identification medium assumed, 2× shortly before engaging (green) normal activation Identification medium not author- 1 x briefly (red) ised 1× briefly, 1× long (green) Flip-flop mode: Engaged 1×...

  • Page 15: Technical Specifications

    6. Technical specifications SmartIntego PadLock AX (Manual) 15 / 21 6 Technical specifications Basic body without knob/shackle: Dimensions (WxHxD) 70×51×25 mm (8 mm shackle) or 72.5×60×25 mm (11 mm shackle) Dimensions knob (Øxlength) Ø 32 mm × 39.5 mm (electronic)

  • Page 16: Scale Drawings

    6. Technical specifications SmartIntego PadLock AX (Manual) 16 / 21 Frequency range; max. transmission 2402 MHz - 2480 MHz; 2.5 mW power BLE Geographical restrictions within the 6.1 Scale drawings 8 mm shackle, 25 mm shackle interior height...
  • Page 17 6. Technical specifications SmartIntego PadLock AX (Manual) 17 / 21 8 mm shackle, 60 mm shackle interior height...
  • Page 18 6. Technical specifications SmartIntego PadLock AX (Manual) 18 / 21 8 mm shackle, 50 mm shackle interior height...

  • Page 19: Eu/Uk Declaration Of Conformity

    7. EU/UK Declaration of conformity SmartIntego PadLock AX (Manual) 19 / 21 7 EU/UK Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article SV-Z5.PL.*, SI-Z5.PL.*, MK-Z5.PL.* complies with the following guidelines: 2014/53/EU "Radio equipment"  as well as the corresponding UK statutory 2017 No. 1206 "Radio equipment"...

  • Page 20: Help And Other Information

    8. Help and other information SmartIntego PadLock AX (Manual) 20 / 21 8 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents on the website: www.smartintego.com/int/home/infocenter/documentation Declarations of conformity You will find declarations of conformity and other certificates on the website: www.simons-voss.com/en/certificates.html...
  • Page 21 This is SimonsVoss SimonsVoss is a technology leader in digital locking systems. The pioneer in wirelessly controlled, cable-free locking technology delivers system solutions with an extensive product range for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems unite intelligent functions, optimum quality and award-winning German-made design.
