5 Initial operation

5.1 Programming

5.2 Measurement and calculation

(For programming for SmartIntego, see Step-by-Step Guide).

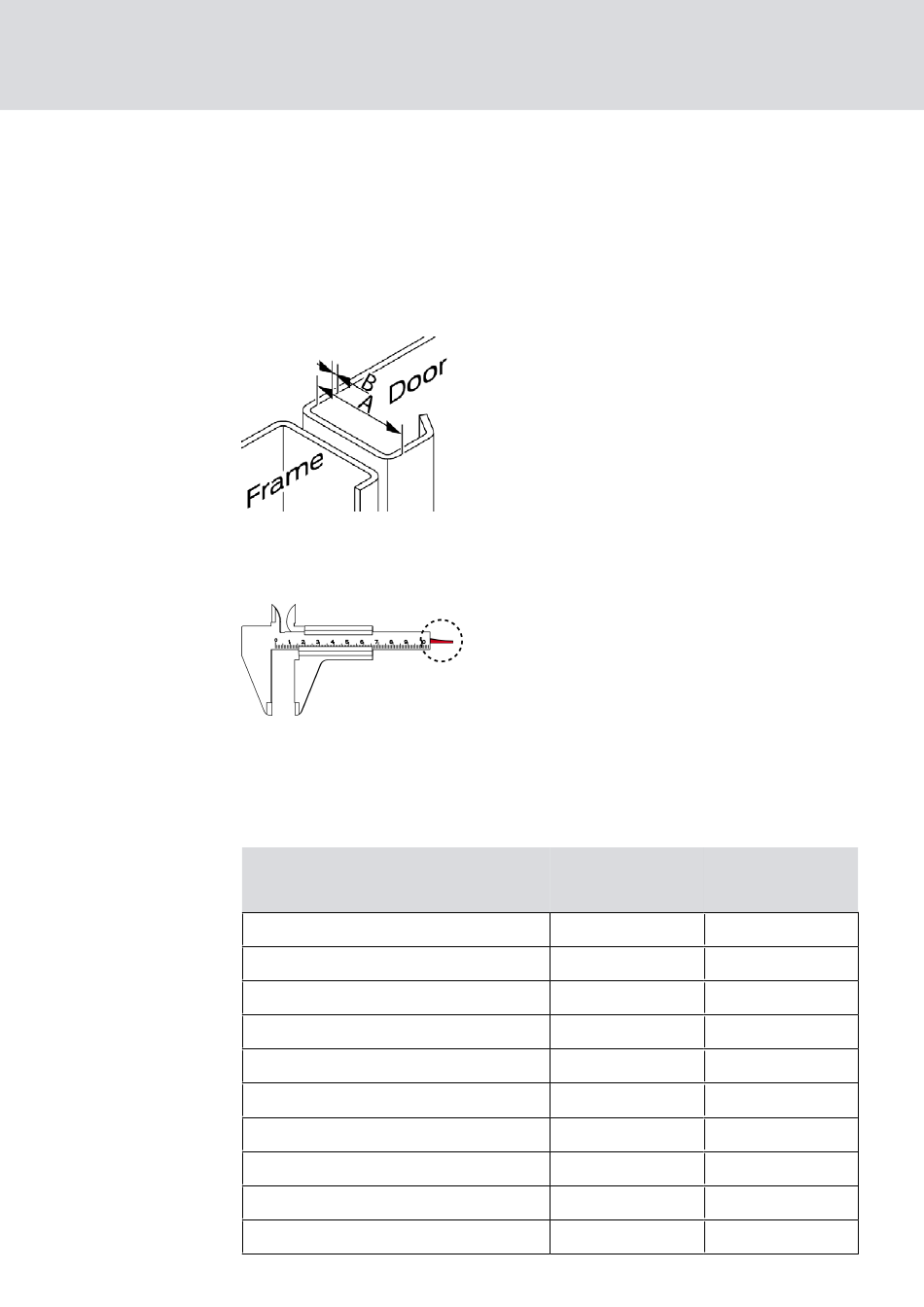

1. Measure the distance between the inside of the door and the dead-bolt
stop (A), e.g. with the depth rod of a caliper gauge.
2. Measure the thickness of the door/door panel (B).
3. Refer to the tables for the parts required from the scope of delivery (ad-
apter plates, dead-bolt fixture, flange extensions and screw). Additional
parts can be ordered (see manual).
Inner side of door up to dead-bolt
stop (A)
0.0 mm to 5.95 mm
6.05 mm to 7.25 mm
7.35 mm to 8.85 mm
8.95 mm to 10.45 mm
10.55 mm to 10.95 mm
11.05 mm to 12.25 mm
12.35 mm to 13.85 mm
13.95 mm to 15.45 mm
15.55 mm to 15.95 mm
16.05 mm to 17.25 mm
5. Initial operation
Adapter plate P
Dead-bolt fix-
ture R
(LL.PLATE5)
None 4 (5.9 mm)
None 3 (7.5 mm)
None 2 (9.1 mm)
None 1 (10.4 mm)
5 mm 4 (5.9 mm)
5 mm 3 (7.5 mm)
5 mm 2 (9.1 mm)
5 mm 1 (10.4 mm)
2 × 5 mm 4 (5.9 mm)
2 × 5 mm 3 (7.5 mm)
