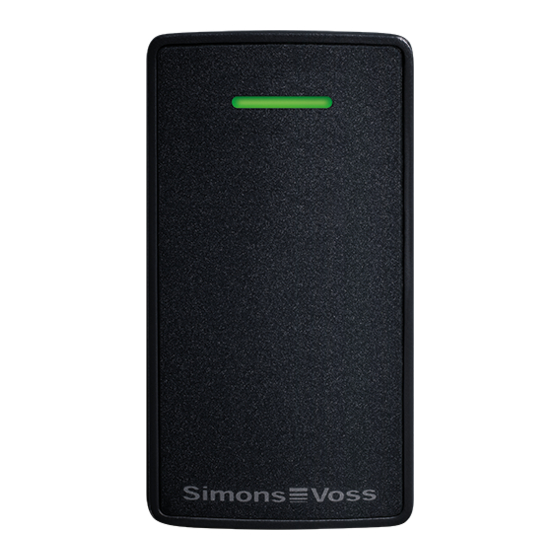

SmartLocker AX
SmartIntego
Manual
14.07.2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartLocker AX SmartIntego and is the answer not in the manual?

Questions and answers

Related Manuals for Simons Voss Technologies SmartLocker AX SmartIntego

Summary of Contents for Simons Voss Technologies SmartLocker AX SmartIntego

  • Page 1 SmartLocker AX SmartIntego Manual 14.07.2022...

  • Page 2: Table Of Contents

    Contents SmartLocker AX SmartIntego (Manual) 2 / 53 Contents Intended use.............................. 3 General safety instructions ........................ 4 Scope of delivery ............................ 7 Exploded view.............................  8 Initial operation ............................ 9 Programming.............................. 9 Measurement and calculation........................ 9 Installation ................................. 10 Subsequent fixation on wooden doors.....................  25 Operation .............................. 26...

  • Page 3: Intended Use

    SmartLocker AX SmartIntego 1. Intended use (Manual) 3 / 53 1 Intended use SmartLocker AX allows you to manage and control your cabinets and lockers conveniently and efficiently. You can programme directly from your workstation or carry out remote opening via the optional radio link.

  • Page 4: General Safety Instructions

    SmartLocker AX SmartIntego 2. General safety instructions (Manual) 4 / 53 2 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury...
  • Page 5 SmartLocker AX SmartIntego 2. General safety instructions (Manual) 5 / 53 Damage resulting from liquids This product contains electronic and/or mechanic components that may be damaged by liquids of any kind. Keep liquids away from the electronics.  Damage resulting from aggressive cleaning agents The surface of this product may be damaged as a result of the use of unsuitable cleaning agents.
  • Page 6 SmartLocker AX SmartIntego 2. General safety instructions (Manual) 6 / 53 Qualifications required The installation and commissioning requires specialized knowledge. Only trained personnel may install and commission the product.  Incorrect installation SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon- ents due to incorrect fitting or installation.

  • Page 7: Scope Of Delivery

    SmartLocker AX SmartIntego 3. Scope of delivery (Manual) 7 / 53 3 Scope of delivery Reader  Motor block  Connection socket  3 adapter plates (can be reordered: LL.PLATE5)  Adapter plate with positioning guide (can be reordered: LL.PLATEVAR) ...

  • Page 8: Exploded View

    SmartLocker AX SmartIntego 4. Exploded view (Manual) 8 / 53 4 Exploded view...

  • Page 9: Initial Operation

    SmartLocker AX SmartIntego 5. Initial operation (Manual) 9 / 53 5 Initial operation 5.1 Programming (For programming for SmartIntego, see Step-by-Step Guide). 5.2 Measurement and calculation 1. Measure the distance between the inside of the door and the dead-bolt stop (A), e.g. with the depth rod of a caliper gauge.

  • Page 10: Installation

    SmartLocker AX SmartIntego 5. Initial operation (Manual) 10 / 53 Adapter plate P Inner side of door up to dead-bolt Dead-bolt fix- stop (A) ture R (LL.PLATE5) 17.35 mm to 18.85 mm 2 × 5 mm 2 (9.1 mm) 18.95 mm to 20.45 mm 2 × 5 mm 1 (10.4 mm)
  • Page 11 SmartLocker AX SmartIntego 5. Initial operation (Manual) 11 / 53 PH1 screwdriver  Slotted screwdriver (if the dead-bolt block needs to be replaced)  2.5 mm hex wrench  TX10 screwdriver  SmartLocker AX locked ex works = dead bolt extended, programme if ü...
  • Page 12 SmartLocker AX SmartIntego 5. Initial operation (Manual) 12 / 53 3. Remove the cover. 4. Using needle-nosed pliers, disconnect the plug of the cable below the circuit board. 5. Disassemble the reader and engine block. 6. Insert the socket into the D-hole (mount for nut pointing towards the...
  • Page 13 SmartLocker AX SmartIntego 5. Initial operation (Manual) 13 / 53 7. Insert the adapter plate with the parallel forced guide onto the socket from the rear. 8. Slide the forced guide out until it rests against the inner edge of the door.
  • Page 14 SmartLocker AX SmartIntego 5. Initial operation (Manual) 14 / 53 10. If necessary, insert additional adapter plates into the socket. 11. If necessary, lever the dead-bolt block out of the engine block using a slotted screwdriver. 12. If necessary, insert another dead-bolt block into the engine block.
  • Page 15 SmartLocker AX SmartIntego 5. Initial operation (Manual) 15 / 53 13. Hook the screw into the holder and hold it in place. 14. Fix the screw through the dead-bolt side hole on the back with the plastic mounting tool. 15. If necessary, plug in the flange extensions on the engine block.
  • Page 16 SmartLocker AX SmartIntego 5. Initial operation (Manual) 16 / 53 16. For wooden doors: Insert the fastening pieces into the recesses provided. 17. Hold the plastic mounting tool with one finger and place the engine block on the adapter plate or through the D-hole bushing.
  • Page 17 SmartLocker AX SmartIntego 5. Initial operation (Manual) 17 / 53 19. Place the nut on the screw and carefully tighten the nut with the as- sembly tool already inserted until it sits on the hexagonal mount.
  • Page 18 SmartLocker AX SmartIntego 5. Initial operation (Manual) 18 / 53 20.For wooden doors: Straighten the motor block and firmly tighten the fastening pieces with suitable screws. 21. Tighten the nut with 1 Nm (2.5 mm hex wrench).
  • Page 19 SmartLocker AX SmartIntego 5. Initial operation (Manual) 19 / 53 22. Insert the clamping element and the plastic countersunk screw into the D-hole bushing from the front.
  • Page 20 SmartLocker AX SmartIntego 5. Initial operation (Manual) 20 / 53 23. Screw the tensioner until it stops (TX10 key) without screwing through the screw. 24.Place the reader at an angle (approx. 60°).
  • Page 21 SmartLocker AX SmartIntego 5. Initial operation (Manual) 21 / 53 25. Turn the reader clockwise straight (bayonet mount). 26.Route the cable past next to the area of the light guide. 27. Insert the plug into the socket with the lug facing the circuit board using the special tool.
  • Page 22 SmartLocker AX SmartIntego 5. Initial operation (Manual) 22 / 53 28.Attach the light guide and press it firmly. Reader protected against twisting. 29.Store the excess cable in the gap next to the PCB. 30.Hook the lid on top.
  • Page 23 SmartLocker AX SmartIntego 5. Initial operation (Manual) 23 / 53 31. Close the lid downwards. 32. Gently press the lid against the floor and unscrew the lower screw counterclockwise (0.9 mm hex wrench) until it is flush with the lid sur-...
  • Page 24 SmartLocker AX SmartIntego 5. Initial operation (Manual) 24 / 53 SmartLocker AX is completely assembled.

  • Page 25: Subsequent Fixation On Wooden Doors

    6. Subsequent fixation on wooden SmartLocker AX SmartIntego doors (Manual) 25 / 53 6 Subsequent fixation on wooden doors You can also attach the fixings to the after installation. To do this, insert the fixing elements into the already mounted and then screw them tight.

  • Page 26: Operation

    SmartLocker AX SmartIntego 7. Operation (Manual) 26 / 53 7 Operation Present an ID medium to the SmartLocker AX.  SmartLocker AX signals reaction (see Signalisation [  42] SmartLocker AX reacts as configured.

  • Page 27: Locknode

    SmartLocker AX SmartIntego 8. LockNode (Manual) 27 / 53 8 LockNode 8.1 Intended use With LockNode integrated (LNI) installed, you can network the and connect to WaveNet. 8.2 Installation You will need the following tools: 0.9 mm hex wrench (included) ...
  • Page 28 SmartLocker AX SmartIntego 8. LockNode (Manual) 28 / 53 ü Grounding completed (e.g. on radiator). 1. Insert the 0.9 mm hex key into the lower screw. 2. Gently press the reader cover against the floor and turn the lower screw clockwise inwards until you can lift off the cover.
  • Page 29 SmartLocker AX SmartIntego 8. LockNode (Manual) 29 / 53 4. Pull the optical fibre out of the reader.
  • Page 30 SmartLocker AX SmartIntego 8. LockNode (Manual) 30 / 53 5. Using needle-nosed pliers, disconnect the plug of the cable below the circuit board.
  • Page 31 SmartLocker AX SmartIntego 8. LockNode (Manual) 31 / 53 6. Turn the reader 60° anti-clockwise (bayonet mount). 7. Remove the reader from the D socket.
  • Page 32 SmartLocker AX SmartIntego 8. LockNode (Manual) 32 / 53 8. Undo the four screws from the circuit board mount to separate the cir- cuit board mount from the reader base. 9. Open the FPC connector folding mechanism on the LNI.
  • Page 33 SmartLocker AX SmartIntego 8. LockNode (Manual) 33 / 53 10. Insert the reader’s non-assigned connection into the open FPC con- nector. 11. Close the FPC connector’s folding mechanism. 12. Screw the circuit board mount and the reader base back together.
  • Page 34 SmartLocker AX SmartIntego 8. LockNode (Manual) 34 / 53 13. Place the reader at an angle (approx. 60°). 14. Turn the reader clockwise straight (bayonet mount).
  • Page 35 SmartLocker AX SmartIntego 8. LockNode (Manual) 35 / 53 15. Route the cable past next to the area of the light guide. 16. Insert the plug into the socket with the lug facing the circuit board using the special tool.
  • Page 36 SmartLocker AX SmartIntego 8. LockNode (Manual) 36 / 53 17. Attach the light guide and press it firmly. Reader protected against twisting. 18. Store the excess cable in the gap next to the PCB.
  • Page 37 SmartLocker AX SmartIntego 8. LockNode (Manual) 37 / 53 19. Hook the lid on top. 20.Close the lid downwards.
  • Page 38 SmartLocker AX SmartIntego 8. LockNode (Manual) 38 / 53 21. Gently press the lid against the floor and unscrew the lower screw anti- clockwise (0.9 mm hex wrench) until it is flush with the lid surface. LockNode installed in .

  • Page 39: Battery Change

    SmartLocker AX SmartIntego 9. Battery change (Manual) 39 / 53 9 Battery change ü SmartLocker's back accessible. Slot screwdriver available. ü 1. Put the slot screwdriver in the intended notch. 2. Turn the screwdriver as shown to lift the battery lid. Push the lid to the case's edge.
  • Page 40 SmartLocker AX SmartIntego 9. Battery change (Manual) 40 / 53 4. Hook in the lid's long flap first, then hook in the the short flap. 5. Push the lid against the case and push it in the direction of the short flap until it snaps in.

  • Page 41: Emergency Power Supply

    SmartLocker AX SmartIntego 9. Battery change (Manual) 41 / 53 NOTE Emergency supply if totally discharged If you ignore the battery warnings, the SmartLocker AX may fail to open. If this happens the battery compartment is no longer accessible. You may connect an emergency power supply for changing the batteries.

  • Page 42: Signalisation

    SmartLocker AX SmartIntego 10. Signalisation (Manual) 42 / 53 10 Signalisation Signal Explanation 1× Beeping Lock locked. 2× Beeping und Flashing (green) Lock unlocked. 3 × Beeping Reset/Battery change. 3× Beeping and Flashing Motor unit and reader connected. 4 × Beeping and Flashing LockNode connected.

  • Page 43: Disassembly

    SmartLocker AX SmartIntego 11. Disassembly (Manual) 43 / 53 11 Disassembly Disassembly is reversed to assembly. Carefully press the light guide down to make it easier to remove the cover.

  • Page 44: Technical Specifications

    SmartLocker AX SmartIntego 12. Technical specifications (Manual) 44 / 53 12 Technical specifications Reader: 41.3×75.3×20.0 mm, motor Dimensions (WxHxD) block: 59×75×21 mm, bolt: 15×20×3 Standard locker lock flange (Ø19×16 Fastening mm) with double D punch Material Glass-fibre reinforced plastic Colours...

  • Page 45: Dimensional Drawings

    SmartLocker AX SmartIntego 12. Technical specifications (Manual) 45 / 53 12.1 Dimensional drawings...

  • Page 46: Drawings Of Installation Situations

    SmartLocker AX SmartIntego 12. Technical specifications (Manual) 46 / 53 To assess compatibility, please note the following information: Wooden doors The door must be between 10 mm and 25 mm thick.  With metal spindles, at least two adapter plates must therefore be used for standard material thicknesses (1 mm to 2 mm).
  • Page 47 SmartLocker AX SmartIntego 12. Technical specifications (Manual) 47 / 53 Metal locker 1 min. 15.9 mm max. 30.4 mm min. 10 mm max. 25 mm Locker frame Bolt Motor block Door with hole and hinge Adapter plate 5 mm (variable)
  • Page 48 SmartLocker AX SmartIntego 12. Technical specifications (Manual) 48 / 53 Metal locker 2 min. 15.9 mm max. 30.4 mm min. 10 mm max. 25 mm Locker frame Bolt Motor block Door with hole and hinge Adapter plate 5 mm (variable)
  • Page 49 SmartLocker AX SmartIntego 12. Technical specifications (Manual) 49 / 53 Wooden locker min. 10 mm max. 30.4 mm min. 5.9 mm max. 25 mm Door frame with stop bracket Bolt Motor block Door with hole and hinge Adapter plate 5 mm (variable)

  • Page 50: Eu/Uk Declaration Of Conformity

    SmartLocker AX SmartIntego 13. EU/UK Declaration of conformity (Manual) 50 / 53 13 EU/UK Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article (SI-LL.*) complies with the following guidelines: 2014/53/EU "Radio equipment"  as well as the corresponding UK statutory 2017 No. 1206 "Radio equipment"...

  • Page 51: Help And Other Information

    SmartLocker AX SmartIntego 14. Help and other information (Manual) 51 / 53 14 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents on the website: https://www.smartintego.com/int/home/infocenter/documentation Declarations of conformity You will find declarations of conformity and other certificates on the website: https://www.simons-voss.com/en/certificates.html...
  • Page 52 SmartLocker AX SmartIntego 14. Help and other information (Manual) 52 / 53 Address SimonsVoss Technologies GmbH Feringastr. 4 D-85774 Unterfoehring Germany...
