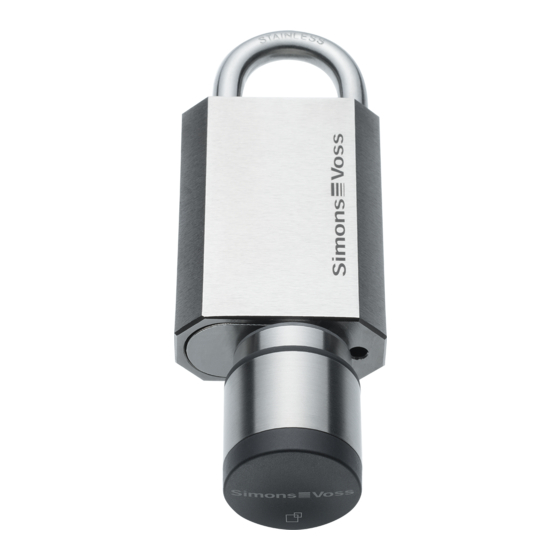

- Page 1 Padlock Manual 04.01.2021...
-
Page 2: Table Of Contents
Content Padlock (Manual) 2 / 24 Content General information .......................... 3 General safety instructions........................ 4 Product specific safety notices ...................... 7 Operating the SL version ......................... 8 Operating the ML version ........................ 9 Audible signals............................ 10 Battery warnings for active version...................... 11 Battery replacement (Passive) SC version .................. 13 Maintenance, cleaning and disinfection.................... 15... -
Page 3: General Information
3 / 24 1 General information The digital padlock is used to lock doors or other entrances or access points. The padlock may only be used for this specific purpose. When installing the digital padlock, ensure that there are no sources of ... -
Page 4: General Safety Instructions
2. General safety instructions Padlock (Manual) 4 / 24 2 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury IMPORTANT... - Page 5 2. General safety instructions Padlock (Manual) 5 / 24 CAUTION Fire hazard posed by batteries The batteries used may pose a fire or burn hazard if handled incorrectly. 1. Do not try to charge, open, heat or burn the batteries.
- Page 6 2. General safety instructions Padlock (Manual) 6 / 24 Communication interference due to metallic surfaces This product communicates wirelessly. Metallic surfaces can greatly reduce the range of the product. Do not mount or place the product on or near metallic surfaces.
-
Page 7: Product Specific Safety Notices
3. Product specific safety notices Padlock (Manual) 7 / 24 3 Product specific safety notices IMPORTANT Damage caused by moisture in outdoor use Moisture can damage the electronics. 1. If you want to use the locking cylinder for outdoor applications or in high humidity (bathrooms or washrooms), use the WP version. -
Page 8: Operating The Sl Version
(Passive) SC: Hold the smart card or smart tag in front of the reader thumb-turn. You can open the padlock by turning the thumb-turn about 30° in a clockwise direction until it will go no further and the shackle opens. -
Page 9: Operating The Ml Version
(Passive) SC: Hold the smart card or smart tag in front of the reader thumb-turn. You can open the padlock by turning the thumb-turn about 30° in a clockwise direction until it will go no further and the shackle opens. -
Page 10: Audible Signals
Battery Warning Level 1: 8 short audible signals before engaging. Batteries will soon be empty. Replace batteries in the padlock. Battery Warning Level 2: 8 short audible signals for 30 seconds with a one-second break between each signal. Indicates emergency battery warning: Batteries are almost completely empty. -
Page 11: Battery Warnings For Active Version
30° in a clockwise direction (until you hear a click). 3. Remove battery/installation key from the knob. 4. Push recessed grip ring backwards towards the padlock, so that it comes away from the thumb-turn. 5. Hold recessed grip ring, turn knob about 10° in an anti-clockwise direc- tion and remove. - Page 12 7. Battery warnings for active version Padlock (Manual) 12 / 24 Batteries Recessed grip ring Inside Knob Markings...
-
Page 13: Battery Replacement (Passive) Sc Version
30° in a clockwise direction (until you hear a click). 3. Remove battery/installation key from the knob. 4. Push recessed grip ring backwards towards the padlock, so that it comes away from the thumb-turn. 5. Hold recessed grip ring firmly and turn knob about 10° in an anti-clock- wise direction and remove. - Page 14 8. Battery replacement (Passive) SC version Padlock (Manual) 14 / 24 Battery holder Antenna bracket...
-
Page 15: Maintenance, Cleaning And Disinfection
NOTE The use of unsuitable or aggressive disinfectants can damage the locking cylinder. Clean the padlock with a soft, damp cloth if necessary. Only use disinfectants explicitly suitable for the disinfection of sensitive metal surfaces and plastic. Empty batteries always must be replaced by new ones approved for use by... -
Page 16: Technical Specifications
10. Technical specifications Padlock (Manual) 16 / 24 10 Technical specifications Padlock with shackle 8 mm in diameter 51 x 70 x 25 mm (without cylinder knob or Locking device dimen- shackle) sions (W x H x D) 25 mm or 60 mm (manual locking or self-lock-... -
Page 17: Dimensional Drawings Padlocks
13.564 MHz - 13.564 -19.57 dBµA/m (10 m equipment) distance) SRD (WaveNet) (de- 868.000 MHz - <25 mW ERP pending on equipment) 868.600 MHz There are no geographical restrictions within the EU. 10.1 Dimensional drawings padlocks Padlock 11 mm - Active (PL) - Page 18 10. Technical specifications Padlock (Manual) 18 / 24 Padlock 11 mm - Passive (PL MP)
- Page 19 10. Technical specifications Padlock (Manual) 19 / 24 Padlock 8 mm - Active (PL)
- Page 20 10. Technical specifications Padlock (Manual) 20 / 24 Padlock 8 mm - Passive (PL MP)
-
Page 21: Declaration Of Conformity
11. Declaration of conformity Padlock (Manual) 21 / 24 11 Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article Z4.PL.*, SI.Z4.PL.*, MK.Z4.PL.* complies with the following guidelines: 2014/53/EU "Radio equipment" 2014/30/EU "EMC" 2011/65/EU "RoHS" ... -
Page 22: Help And Other Information
12. Help and other information Padlock (Manual) 22 / 24 12 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents under Informative material/Documents in the Download https://www.simons-voss.com/en/ section on the SimonsVoss website ( downloads/documents.html... - Page 23 12. Help and other information Padlock (Manual) 23 / 24 Address SimonsVoss Technologies GmbH Feringastrasse 4 85774 Unterföhring Germany...
- Page 24 This is SimonsVoss SimonsVoss is a technology leader in digital locking systems. The pioneer in wirelessly controlled, cable-free locking technology delivers system solutions with an extensive product range for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems unite intelligent functions, optimum quality and award-winning German-made design.
