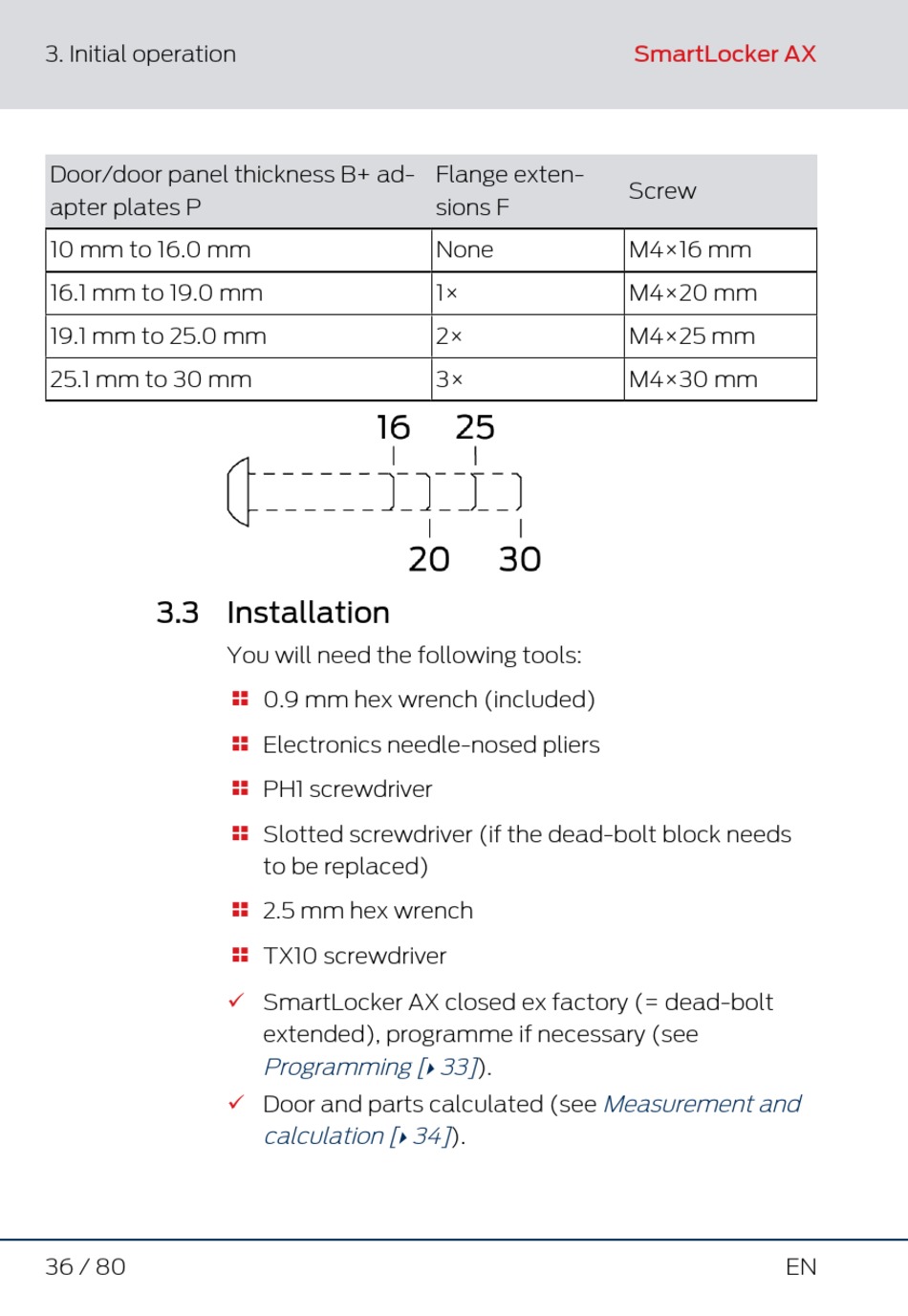

3. Initial operation
Door/door panel thickness B+ ad-
apter plates P
10 mm to 16.0 mm
16.1 mm to 19.0 mm
19.1 mm to 25.0 mm
25.1 mm to 30 mm

3.3 Installation

36 / 80
You will need the following tools:
0.9 mm hex wrench (included)

Electronics needle-nosed pliers

PH1 screwdriver

Slotted screwdriver (if the dead-bolt block needs

to be replaced)
2.5 mm hex wrench

TX10 screwdriver

SmartLocker AX closed ex factory (= dead-bolt
ü
extended), programme if necessary (see
Programming [
Door and parts calculated (see
ü
calculation [
}
Flange exten-
sions F
None
1×
2×
3×
33]
).
}
34]
).
SmartLocker AX
Screw
M4×16 mm
M4×20 mm
M4×25 mm
M4×30 mm
Measurement and
