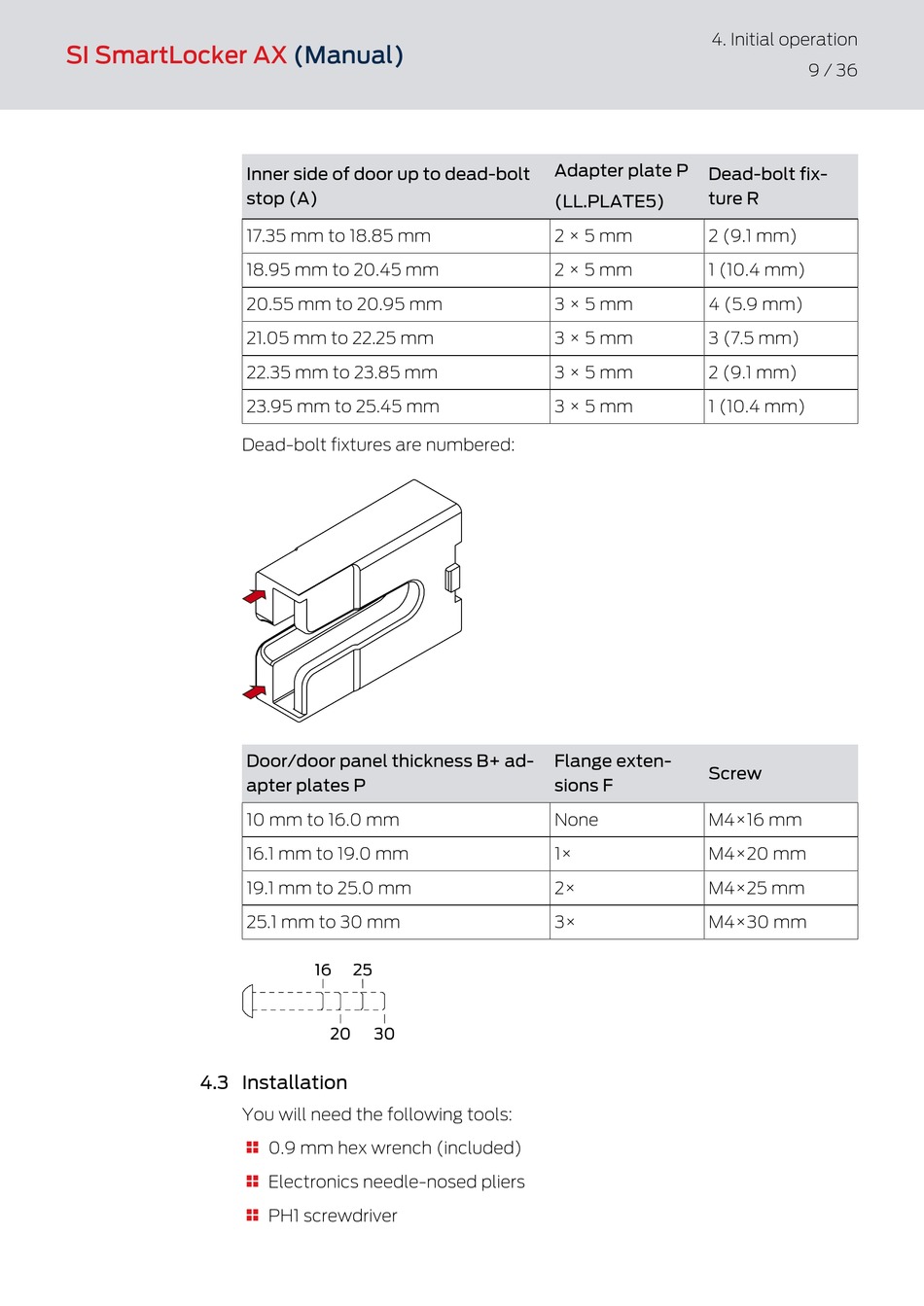

4.3 Installation

(Manual)
Inner side of door up to dead-bolt
stop (A)
17.35 mm to 18.85 mm
18.95 mm to 20.45 mm
20.55 mm to 20.95 mm
21.05 mm to 22.25 mm
22.35 mm to 23.85 mm
23.95 mm to 25.45 mm
Dead-bolt fixtures are numbered:
Door/door panel thickness B+ ad-
apter plates P
10 mm to 16.0 mm
16.1 mm to 19.0 mm
19.1 mm to 25.0 mm
25.1 mm to 30 mm
You will need the following tools:
0.9 mm hex wrench (included)

Electronics needle-nosed pliers

PH1 screwdriver

4. Initial operation
Adapter plate P
Dead-bolt fix-
ture R
(LL.PLATE5)
2 × 5 mm 2 (9.1 mm)
2 × 5 mm 1 (10.4 mm)
3 × 5 mm 4 (5.9 mm)
3 × 5 mm 3 (7.5 mm)
3 × 5 mm 2 (9.1 mm)
3 × 5 mm 1 (10.4 mm)
Flange exten-
Screw
sions F
None M4×16 mm
1× M4×20 mm
2× M4×25 mm
3× M4×30 mm
