SmartLocker AX SmartIntego
(Manual)

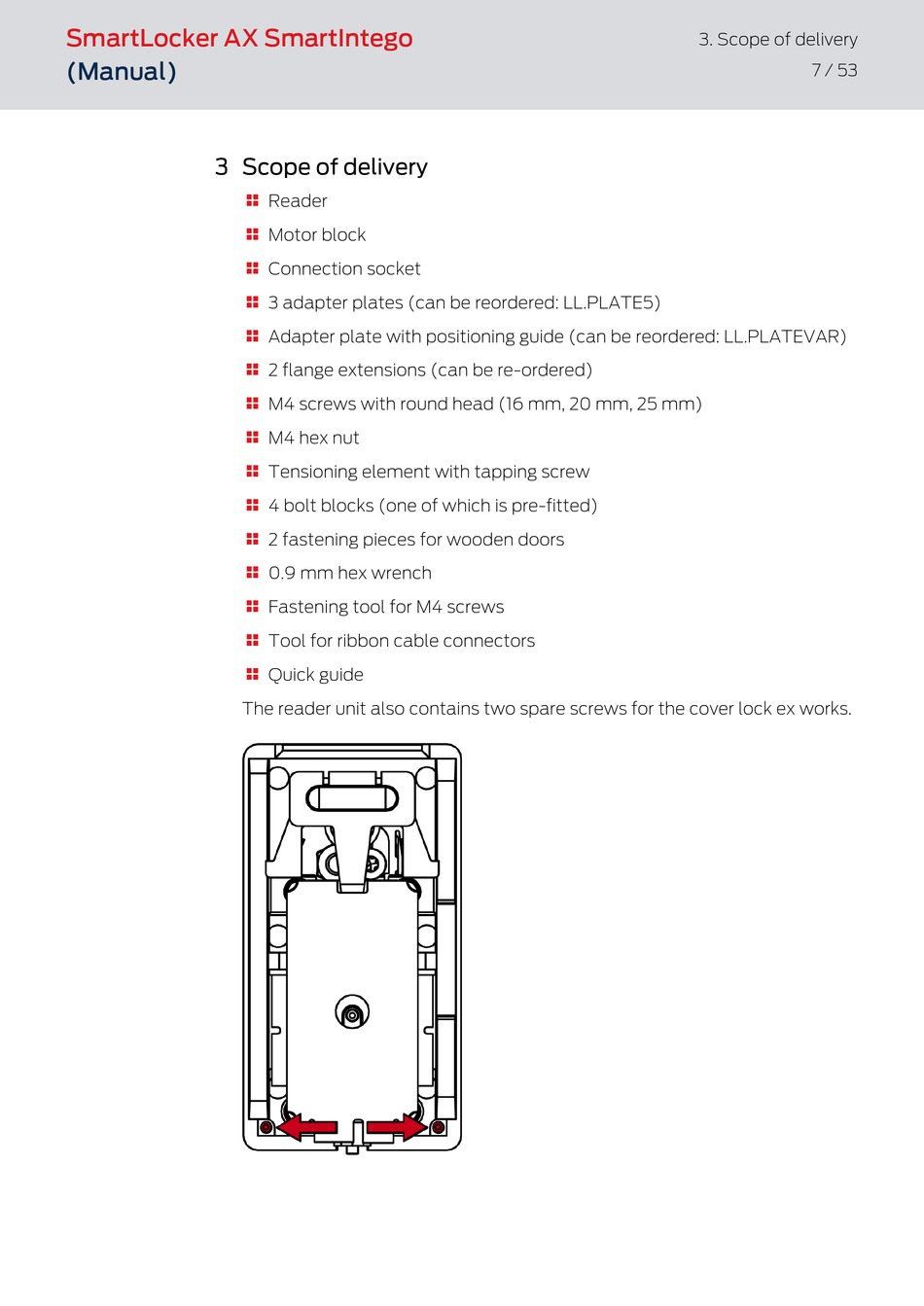

3 Scope of delivery
Reader
Motor block
Connection socket
3 adapter plates (can be reordered: LL.PLATE5)
Adapter plate with positioning guide (can be reordered: LL.PLATEVAR)
2 flange extensions (can be re-ordered)
M4 screws with round head (16 mm, 20 mm, 25 mm)
M4 hex nut
Tensioning element with tapping screw
4 bolt blocks (one of which is pre-fitted)
2 fastening pieces for wooden doors
0.9 mm hex wrench
Fastening tool for M4 screws
Tool for ribbon cable connectors
Quick guide
The reader unit also contains two spare screws for the cover lock ex works.
3. Scope of delivery
7 / 53
