Wall Mounting

The mounting brackets supplied with the switch allow you to mount it on a
wall. You can mount it in any orientation that places the power supplies facing
against the wall and the modules facing out. The orientation shown in the
illustrations is commonly referred to as a "bookshelf" mount.
C a u t i o n
For safety considerations, you should not mount the switch on a wall such
that either the power supplies or the modules are facing downward.
Additionally, the switch should be mounted only to a wall or wood surface
that is at least 1/2-inch plywood or its equivalent.

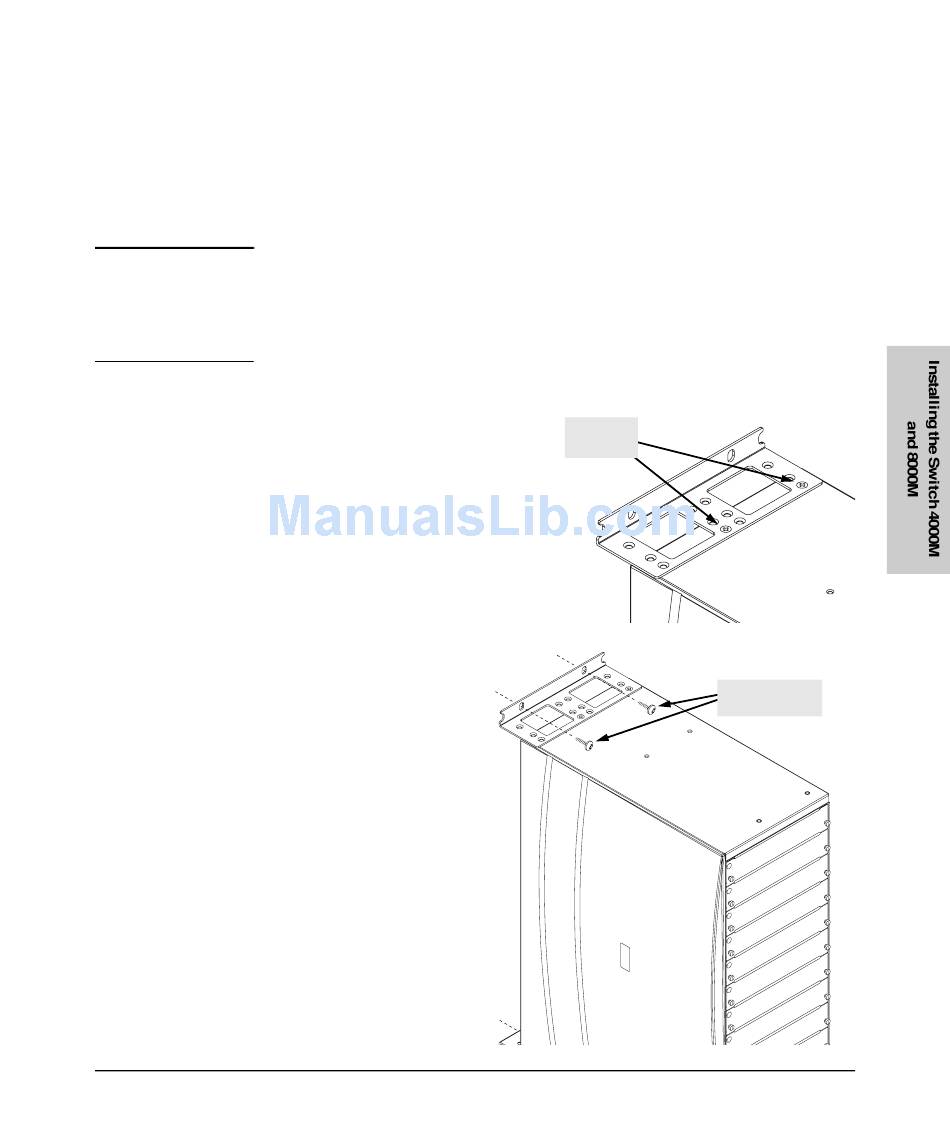

1.
2.
Use a #1 Phillips (cross-head)
screwdriver and attach the
mounting brackets to the switch
with the included 10-mm M4
screws.
Attach the
switch to the
wall or wood
surface with four
5/8-inch number
12 wood screws
or larger (not
included).
Installing the Switch 4000M and 8000M
Installation Procedures
10-mm M4
screws
5/8-inch number
12 wood screws
2-13
