Installing the HP AdvanceStack 10Base-T Hubs

Mounting the Hub on a Wall

I m p o r t a n t
A hub should be mounted only to a wall or wood surface that is
at least 1/2-inch plywood or its equivalent.
1. Using a Phillips (cross-head) screwdriver, attach the mounting
brackets to the hub in one of the positions shown in the illustrations
below with the 10-mm M4 screws included in the Accessory Kit.
2. Attach the hub to the wall or wood surface with 5/8-inch number 12
wood screws (not included).

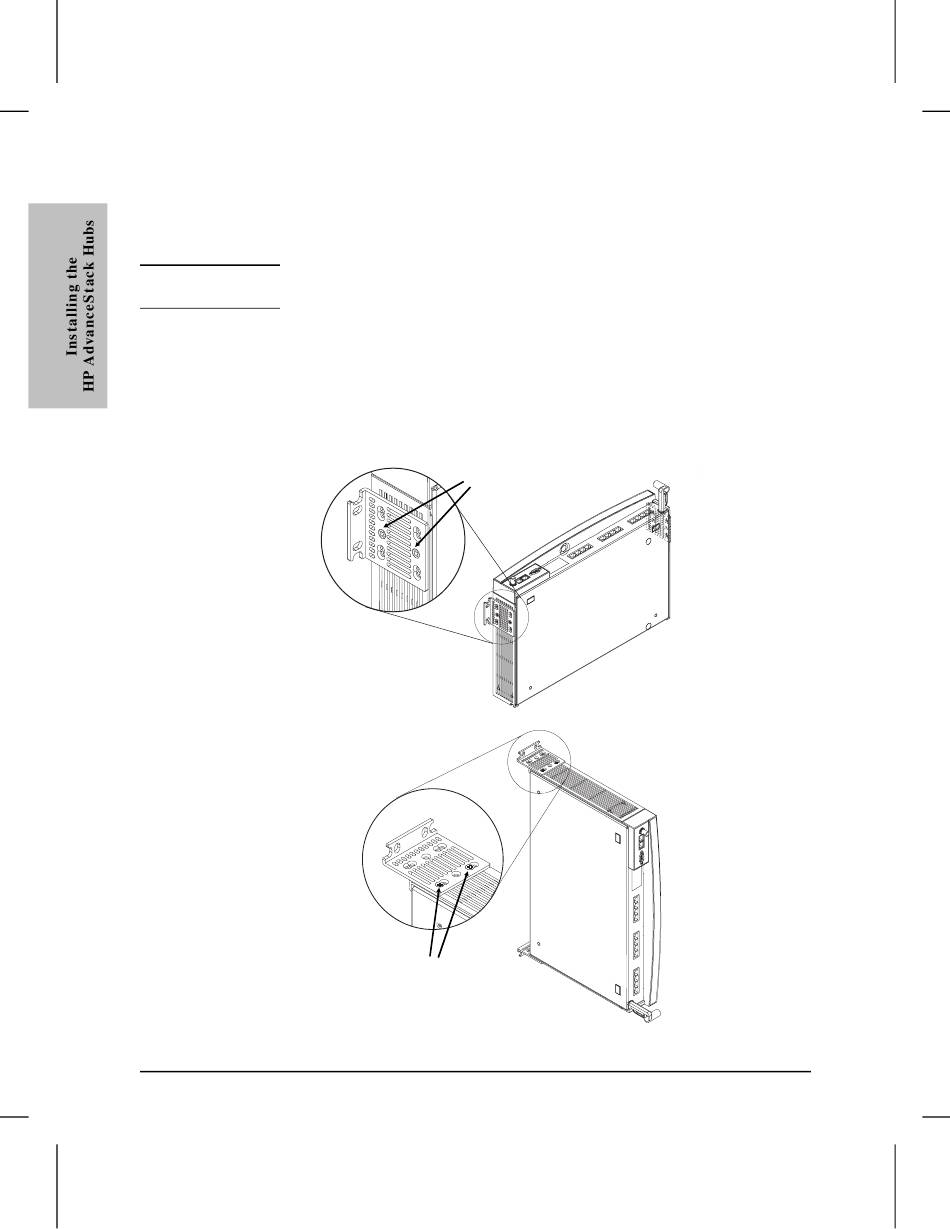

Bracket mounting
position for flat
mounting on a wall.
Bracket mounting position for
bookshelf-style mounting on a wall.
Plug the power cord into the hub's
power receptacle before mounting
the hub. There may not be enough
room to do so after the hub is
mounted.
1-10
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
10-mm M4 screws
10-mm M4 screws
