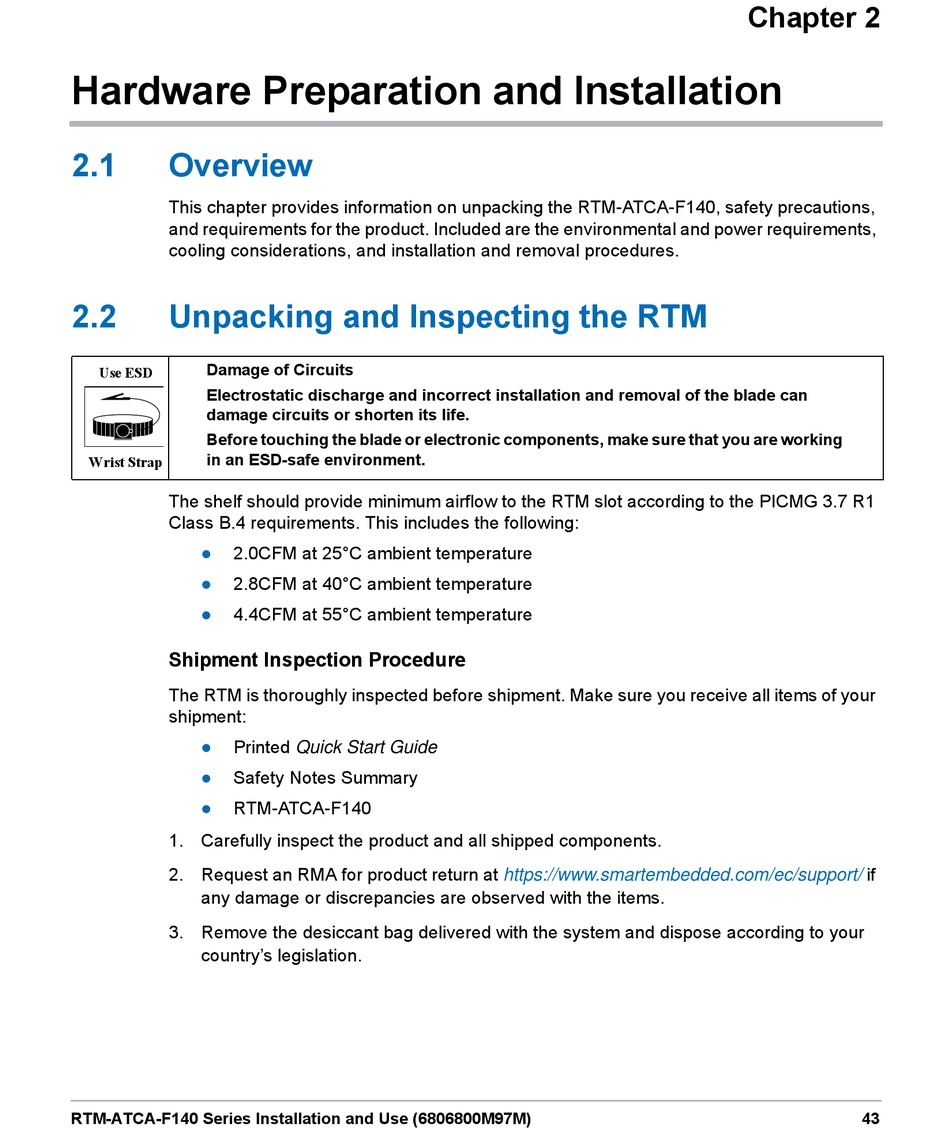

Hardware Preparation and Installation

2.1

Overview

This chapter provides information on unpacking the RTM-ATCA-F140, safety precautions,
and requirements for the product. Included are the environmental and power requirements,
cooling considerations, and installation and removal procedures.
2.2

Unpacking and Inspecting the RTM

Damage of Circuits
Use ESD
Electrostatic discharge and incorrect installation and removal of the blade can
damage circuits or shorten its life.
Before touching the blade or electronic components, make sure that you are working
in an ESD-safe environment.
Wrist Strap
The shelf should provide minimum airflow to the RTM slot according to the PICMG 3.7 R1
Class B.4 requirements. This includes the following:
2.0CFM at 25°C ambient temperature

2.8CFM at 40°C ambient temperature

4.4CFM at 55°C ambient temperature

Shipment Inspection Procedure
The RTM is thoroughly inspected before shipment. Make sure you receive all items of your
shipment:
Printed Quick Start Guide

Safety Notes Summary

RTM-ATCA-F140

1. Carefully inspect the product and all shipped components.
2. Request an RMA for product return at
any damage or discrepancies are observed with the items.
3. Remove the desiccant bag delivered with the system and dispose according to your
country's legislation.
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
https://www.smartembedded.com/ec/support/
Chapter 2
if
