A.2.1

RTM Installation

Care should be taken when installing the RTM-ATCA-F140-D. The upper and lower
handles are different due to the location of the captive screw on the front panel of the RTM.
NOTE: The ATCA-F140-D front blade must be installed in the system before the RTM
installation so that the captive screw can be engaged with the Zone 3 attachment
block on the front blade.
Refer to the following procedures and figures for the RTM-ATCA-F140-D installation. Refer
to
Section 2.4.2 on page 48
detailed installation instructions can be found in the AXP1440-D Installation and Use
manual. Refer to
To prevent damage when installing an RTM and an AdvancedTCA blade in a
ruggedized system, first install the AdvancedTCA blade, then install the matching
RTM.
Installation Procedure
1. Make sure that the upper handle is in the outward position by squeezing the lever and
the latch together. Check that the lower handle is in the open position.

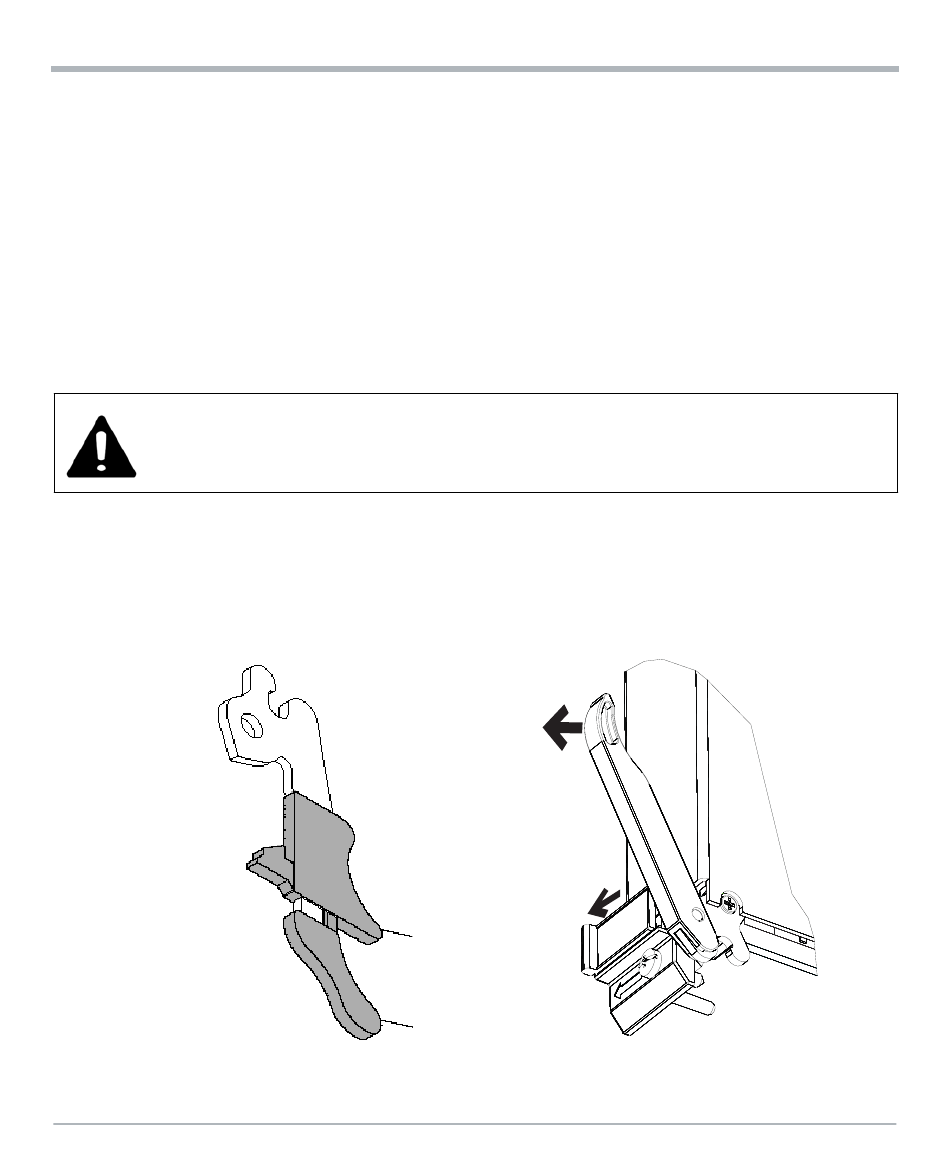

Figure A-3 Upper and Lower Handles

2. Insert the RTM into the shelf by aligning the top and bottom edges of the RTM in the
shelf's card guides.
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
for additional RTM installation and removal procedures. More
Appendix B, Related Documentation on page
Latch
Lever
RTM-ATCA-F140-D Information
79.
