Hardware Preparation and Installation

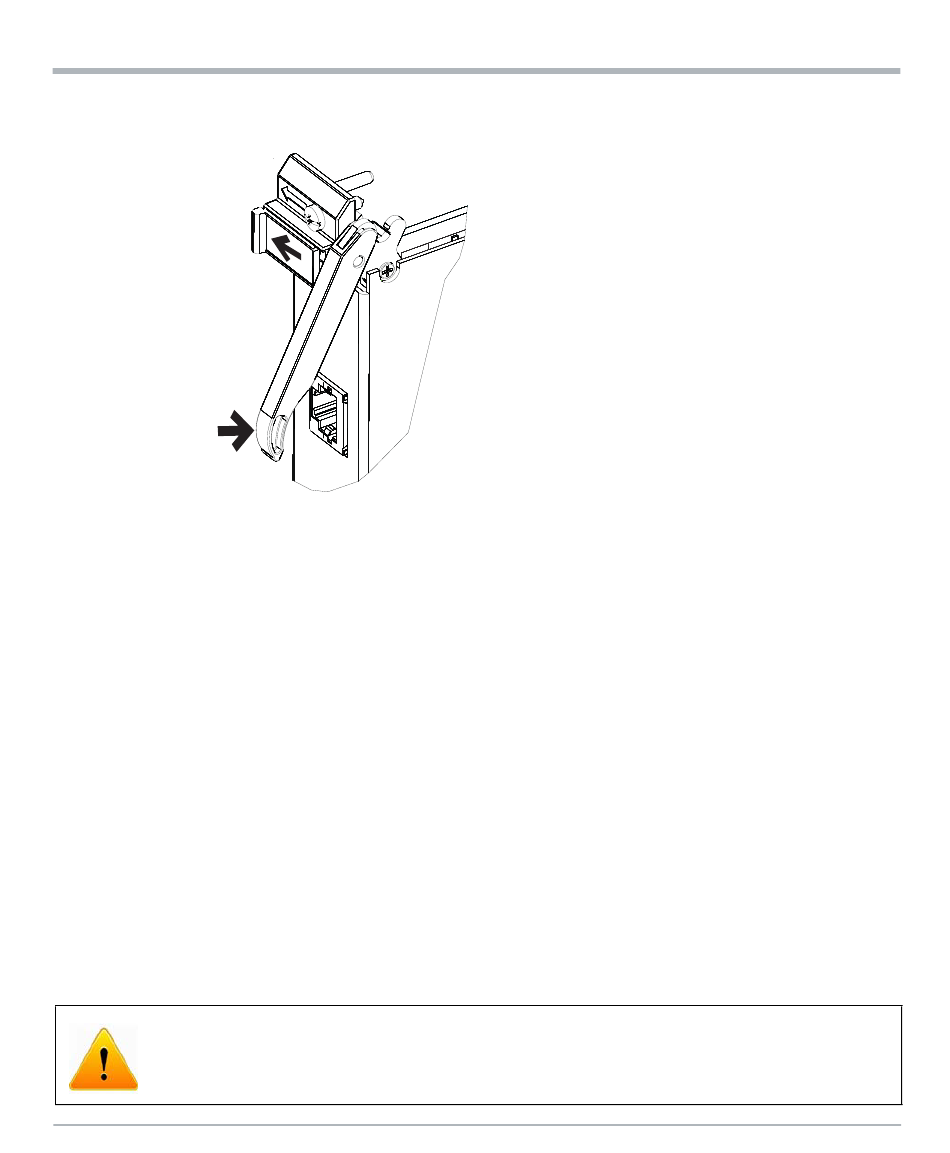

8. Fully insert the blade and then push the handle inwards. The latch automatically locks
the handle.
9. Tighten the face plate screws that secure the RTM to the shelf.
NOTE: If the front blade has already been installed (as in
by pressing the handle back into the face plate.
10. Make sure that the handles of both the RTM and the front blade are closed to power up
the blade and RTM payload. The RTM's payload is powered up and the RTM is active
when the blue LED is OFF and the green LED OK is ON.
11. Connect cables to the face plate if needed.
2.4.2

Removing the RTM

This section describes how to remove the RTM from an AdvancedTCA system.
Removal Procedure
The following procedure describes the removal of the RTM. It assumes that your system is
powered. If your system is unpowered, you can disregard the blue LED information and
skip the respective step. In this case it is a purely mechanical procedure.
Data Loss
Removing the blade with the blue LED still blinking causes data loss. Wait until the
blue LED is permanently illuminated before removing the blade.
48 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
Hardware Preparation and Installation
2.), activate the front blade
Step
