4. Pull the handle outward to unlatch the handle from the face plate. Do not rotate the
handle fully outward.
When the blue LED on the front blade is permanently illuminated (power off), proceed to
the next step.
5. Insert the RTM into the shelf by aligning the top and bottom edges of the RTM in the
shelf's card guides.
6. Apply equal and steady pressure to the RTM while carefully sliding the RTM into the
shelf until you feel resistance.
7. Continue to gently push the RTM until the connectors engage with the front blade.
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
Hardware Preparation and Installation

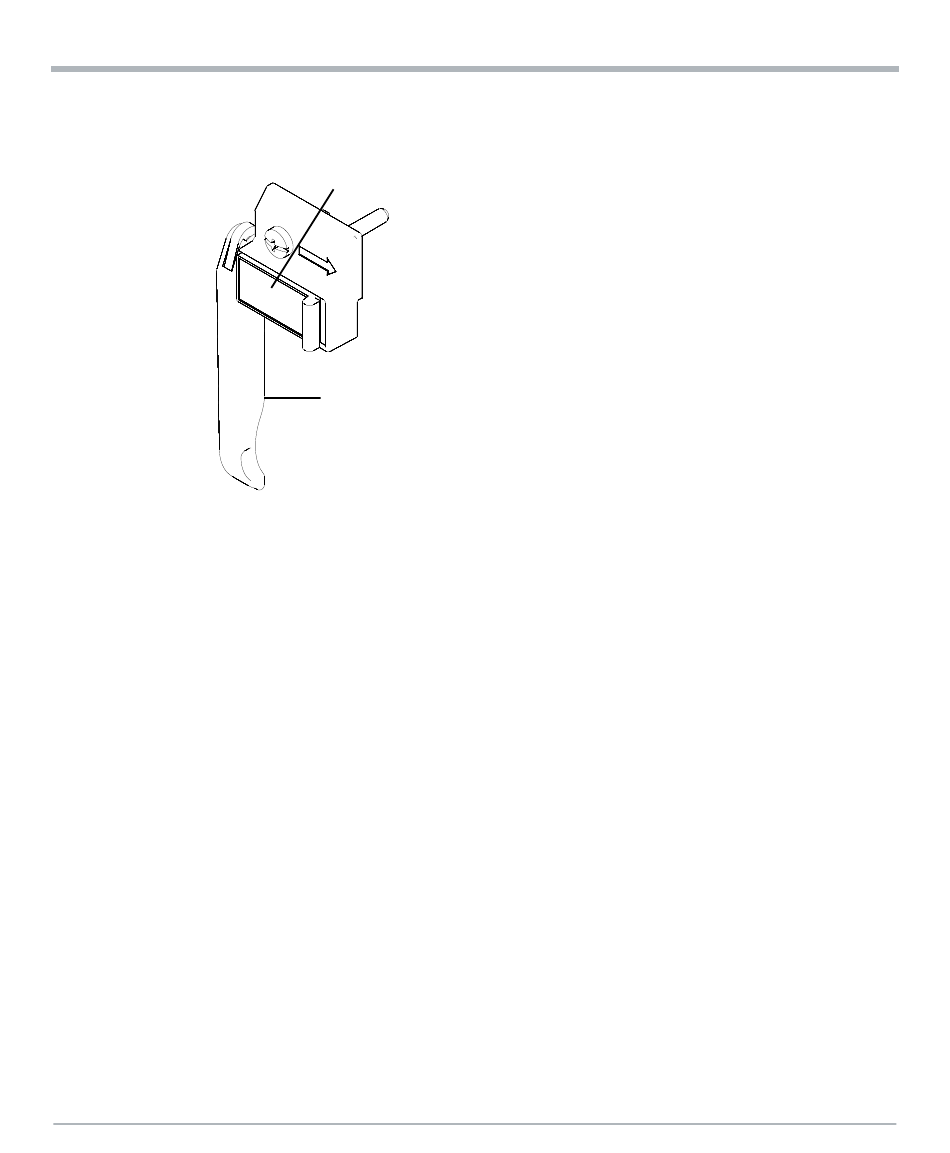

Latch
Handle
47
