Functional Description

4.1

Block Diagram

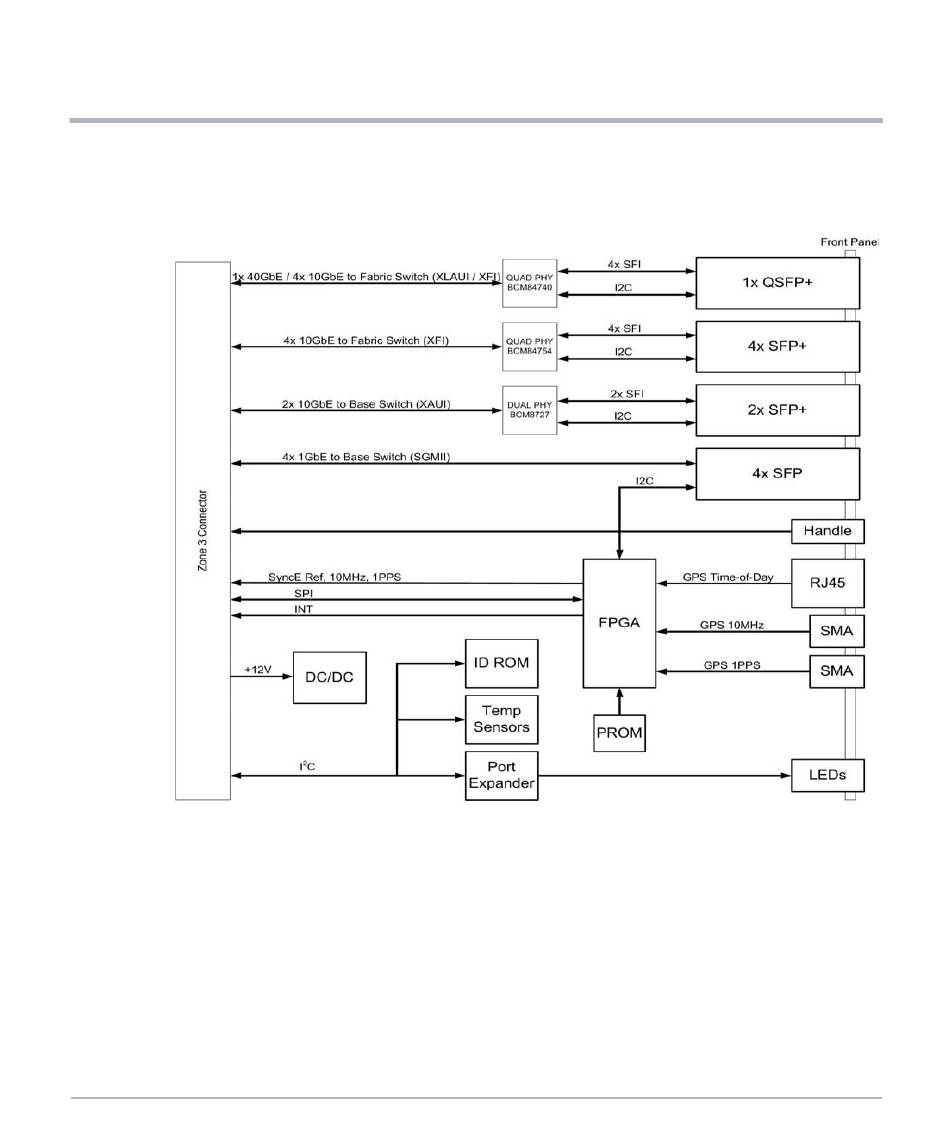

Figure 4-1 Block Diagram

4.2

Management Resources

The RTM-ATCA-F140 does not include its own management controller (MMC) and cannot
independently support the ATCA hot-swap protocol. However, it does support hot-plugging.
The RTM-ATCA-F140 provides the necessary resources to allow management by the front
blade IPMC. These resources are associated with a dedicated I
front blade IPMC.
