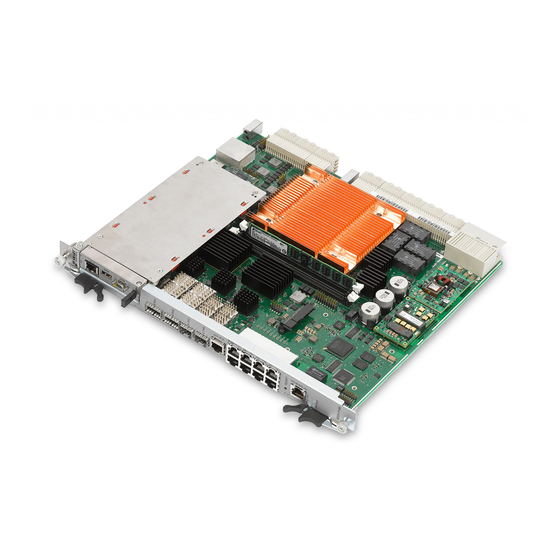

RTM-ATCA-F140 Series
Installation and Use
P/N: 6806800M97M
December 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTM-ATCA-F140 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMART Embedded Computing RTM-ATCA-F140 Series

Summary of Contents for SMART Embedded Computing RTM-ATCA-F140 Series

  • Page 1 RTM-ATCA-F140 Series Installation and Use P/N: 6806800M97M December 2020...
  • Page 2 Computing” and the SMART Embedded Computing logo are trademarks of SMART Modular Technologies, Inc. All other names and logos referred to are trade names, trademarks, or registered trademarks of their respective owners. These materials are provided by SMART Embedded Computing as a service to its customers and may be used for informational purposes only. Disclaimer* SMART Embedded Computing (SMART EC) assumes no responsibility for errors or omissions in these materials.

  • Page 3: Table Of Contents

    4.2.1 FRU Serial EEPROM ..........54 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 4 4.6.5 BCM84740 Status ..........65 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 5 Related Documentation ............79 B.1 SMART Embedded Computing Documentation ....... . . 79...
  • Page 6 Table of Contents RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 7 Captive Screw from the RTM-ATCA-F140-D ......77 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 8 Table of Contents RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 9 SMART EC Publications ..........79 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 10 List of Tables RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 11: About This Manual

    Advanced Mezzanine Card ATCA Advanced Telecom Computing Architecture Base Interface Switch EEPROM Electrically Erasable Programmable Read-Only Memory Field-effect Transistor FPGA Field-programmable Gate Array Field Replaceable Unit Fabric Interface Switch IPMC Intelligent Platform Management Controller Light-emitting Diode RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 12 Notation for selecting a submenu <text> Notation for variables and keys [text] Notation for software buttons to click on the screen and parameter description Repeated item for example node 1, node 2, ..., node 12 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 13 Indicates an electrical situation that could result in moderate injury or death Indicates that when working in an ESD environment care should be taken to use proper ESD practices No danger encountered. Pay attention to important information RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 14 Rebranded to Artesyn. Corrected part number from 6806800M97C to 6806800M97D May 2013 6806800M97B in the row 2 of this table. 6806800M97C December 2012 Updated Standard Compliances 6806800M97B April 2012 GA Release 6806800M97A August 2011 Initial Version RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 15: Safety Notes

    Failure to comply with these precautions or with specific warnings elsewhere in this manual could result in personal injury or damage to the equipment. SMART Embedded Computing (SMART EC) intends to provide all necessary information to install and handle the product in this manual. Because of the complexity of this product and its various uses, we do not guarantee that the given information is complete.
  • Page 16 SMART EC warranty for the backplane or blades. Installation Personal Injury This product operates with dangerous voltages that can cause injury or death. Use extreme caution when handling, testing, and adjusting this equipment and its components. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 17 Bent pins caused by improper installation or by inserting boards with damaged connectors could void the SMART EC warranty for the backplane or blades. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 18 In such case, the product is likely to remain in a non-operable state and will require reconditioning by qualified repair services. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 19 Use minimal force when pressing the reset switch. Too much force may damage the reset switch. RJ-45 Connectors System Damage RJ-45 connectors on the front panel are either twisted-pair Ethernet (TPE) or E1/T1/J1 network interfaces. Connecting an E1/T1/J1 line to an Ethernet connector may damage your system. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 20 SFP/SFP+ module inoperable. Only remove the optical plug when you are ready to connect a cable to the SFP/SFP+ module. When no cable is connected cover the port with an optical port plug. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 21 PCB or the battery holder. Environment Environmental Damage Improper disposal of used products may harm the environment. Always dispose of used products according to your country’s legislation and manufacturer’s instructions. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 22 Safety Notes Safety Notes RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 23: Notice De Sécurité

    à ces précautions ou aux avertissements spécifiques contenus ailleurs dans ce manuel, peut engendrer des lésions corporelles ou dommages à l’équipement. SMART Embedded Computing (SMART EC) prévoit dans ce manuel de fournir toute l’information nécessaire pour installer et manipuler le produit. En raison de la complexité de ce produit et de ses diverses utilisations, nous ne pouvons pas garantir que les informations fournies sont complètes.
  • Page 24 Modules de Transition Arriére (MTA) Endommagement du MTA Une installation inadéquate du MTA peut causer des dommages au MTA. Utilisez les poignées lorsque vous installez/retirez le MTA pour éviter les dommages/déformation de la plaque frontale et/ou du PCB. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 25 Endommagement de la lame et appareils ou modules supplémentaires Avant d’installer ou de retirer un appareil ou un module supplémentaire, lisez la documentation appropriée. Une installation inadéquate d’appareils ou modules supplémentaires peut endommager la lame ou les appareils ou modules supplémentaires. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 26 être surveillés durant l’opération et doivent être déconnectés après la maintenance. Endommagement du produit – Surface du produit Une humidité élevée ou la condensation sur la surface du produit cause des courts-circuits. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 27 Reserved peuvent comporter des fonctions liées à la production et entraîner un mauvais fonctionnement du produit si les paramètres sont modifiés. Vérifiez et modifiez les paramètres de tout commutateur non marqué Reserved avant d'installer le produit. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 28 SFP/SFP+, les réglementations qui correspondent à la classe de laser correspondante s'appliquent à l'ensemble du MTA. Le non-respect de ces réglementations peut entraîner des lésions corporelles. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 29 Utilisez toujours le même type de batterie au lithium tel qu’installé et assurez-vous que la batterie soit installée tel que décrit dans le manuel. Perte de données L'installation d'un autre type de batterie que celle montée à la livraison du produit peut causer une perte de données. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 30 PCB ou le support de batterie. Environnement Dommage Environnemental Une disposition impropre des produits usagés peut être nocif pour l’environnement. Éliminez les produits usagés toujours conformément à la législation de votre pays et aux instructions du fabricant. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 31: Sicherheitshinweise

    Verletzungen oder Schäden am Produkt zur Folge haben. SMART Embedded Computing (SMART EC) ist darauf bedacht, alle notwendigen Informationen zum Einbau und zum Umgang mit dem Produkt in diesem Handbuch bereit zustellen. Da es sich jedoch um ein komplexes Produkt mit vielfältigen Einsatzmöglichkeiten handelt, können wir die Vollständigkeit der im Handbuch enthaltenen...
  • Page 32 Fehlerhafte Installation des RTMs kann zu einer Beschädigung des RTMs führen. Verwenden Sie die Handles, um das RTM zu installieren/deinstallieren. Auf diese Weise vermeiden Sie, dass die Frontblende oder die Platine deformiert oder zerstört werden. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 33 Installieren Sie das Board in ein System nur in Bereichen mit eingeschränktem Zugang. Beschädigung des Blade und von Zusatzmodulen Lesen Sie daher vor der Installation von Zusatzmodulen die zugehörige Dokumentation. Fehlerhafte Installation von Zusatzmodulen, kann zur Beschädigung des Blades und der Zusatzmodule führen. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 34 Alle anderen Geräte, die nur zu Servicezwecken mit der VGA-Schnittstelle verbunden sind, müssen während des Betriebs überwacht werden und müssen nach den Wartungsarbeiten getrennt werden. Beschädigung des Produktes - Oberflaeche Hohe Luftfeuchtigkeit und Kondensat auf der Oberfläche des Produktes können zu Kurzschlüssen führen. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 35 Fehlfunktion des Produkt Ändern Sie nicht die Schaltereinstellungen, die als Reserved gekennzeichnet sind. Schalter, die mit Reserved gekennzeichnet sind, können produktionsbedingte Funktionen enthalten und zu einer Fehlfunktion des Produktes führen, wenn die Einstellungen geändert werden. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 36 Die Installation und der Betrieb von SFP/SFP+-Modulen, welche nicht zertifiziert sind und welche nicht den Sicherheitsstandards entsprechen, kann Verletzungen zur Folge haben sowie zur Beschädigung des RTMs und von SFP/SFP+-Modulen führen. Verwenden Sie daher nur SFP/SFP+-Module, die zertifiziert sind und die den Sicherheitsstandards entsprechen. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 37 Batterie Beschädigung des Blades Unsachgemäßer Einbau der Batterie kann gefährliche Explosionen und Beschädigungen des Blades zur Folge haben. Verwenden Sie deshalb nur den Batterietyp, der auch bereits eingesetzt wurde und befolgen Sie die Installationsanleitung. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 38 Wenn Sie die Batterie mit einem Schraubenzieher ausbauen, können das PCB und die Batteriehalterung beschädigt werden. Umweltschutz Umweltschäden Unsachgemäße Entsorgung von gebrauchten Produkten kann die Umwelt schädigen. Entsorgen Sie gebrauchte Produkte stets gemäß der in Ihrem Land gültigen Gesetzgebung und den Empfehlungen des Herstellers. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 39: Introduction

     connectors 4x 1Gbit Ethernet interfaces (BIX) with four SFP type connectors  Serial EEPROM accessible by front blade IPMC  Four status LEDs and ejector handle switch accessible by front blade IPMC  RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 40: Standard Compliances

    EN 300 019-2-2, Class 2.3 equipment (public transportation). Directive (EU) 2015/863 Directive on the restriction of the use of certain hazardous (amending Annex II to Directive substances in electrical and electronic equipment (RoHS). 2011/65/EU) RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 41: Mechanical Data

    Verizon Document VZ.NEBS.TE.NPI.2004.015: NEBS Checklist. Mechanical Data Table 1-2 RTM-ATCA-F140 Mechanical Data Data Value 8U x 6 HP form factor - 3mm x 351mm x 143mm (including face plate Dimensions handles and alignment posts) Weight 0.725Kg RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 42: Ordering And Support Information

    Refer to the data sheets for the ATCA-F140 and ATCA-F140-D for a complete list of available RTM variants and accessories. Refer to Appendix B, Related Documentation on or consult your local SMART Embedded Computing sales representative for the page 79 availability of other variants.

  • Page 43: Hardware Preparation And Installation

    2. Request an RMA for product return at https://www.smartembedded.com/ec/support/ any damage or discrepancies are observed with the items. 3. Remove the desiccant bag delivered with the system and dispose according to your country’s legislation. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 44: Environmental And Power Requirements

    Operating the blade without forced air cooling may lead to blade overheating resulting in blade damage. When operating the blade make sure that forced air cooling is available in the shelf. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 45: Table 2-1 Environmental Requirements

    5% to 95% Relative humidity 5% to 95% noncondensing at 40°C noncondensing at 40°C -300m to 1,800m at 40°C Altitude -300m to 13,000m 1,800m to 4,000m at 30°C Between 106kPa and 70kPa air pressure RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 46: Rtm Installation And Removal

    Installation and Use manual. Then proceed with the following procedure. 2. On the front blade, verify the face plate screws that secure the blade to the shelf are tight. 3. Deactivate the front blade and slide the latch into the release position. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 47 6. Apply equal and steady pressure to the RTM while carefully sliding the RTM into the shelf until you feel resistance. 7. Continue to gently push the RTM until the connectors engage with the front blade. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 48: Removing The Rtm

    In this case it is a purely mechanical procedure. Data Loss Removing the blade with the blue LED still blinking causes data loss. Wait until the blue LED is permanently illuminated before removing the blade. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 49 2. Remove face plate cables if needed. 3. Unfasten the screws of the RTM face plate until the RTM is detached from the shelf. 4. Unlatch the RTM handle and rotate fully outward. 5. Remove the blade from the shelf. RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 50 Hardware Preparation and Installation Hardware Preparation and Installation RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 51: Controls, Leds, And Connectors

    ETH4 ETH3-ETH6 Fabric 10G SFP+ Slots ETH5 ETH6 1PPS Input 1 PPS ETH7 Fabric ETH7 40G QSFP+Slot 10MHz Input 10MHz ETH8 ETH9 ETH8-ETH11 Base 1G SFP ETH10 Slots ETH11 Hot Swap Time-Of-Day Input ARTM-F140 RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 52: Leds

    The RTM-ATCA-F140 provides four panel-visible LEDs that provide the standard ATCA management LED functions: Red - Out of Service  Green - In Service  Blue - Hot Swap (initializing/shutting down)  Amber - Attention  RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 53: Functional Description

    ATCA hot-swap protocol. However, it does support hot-plugging. The RTM-ATCA-F140 provides the necessary resources to allow management by the front blade IPMC. These resources are associated with a dedicated I C port connected to the front blade IPMC. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 54: Fru Serial Eeprom

    The RTM-ATCA-F140 provides four panel-visible LEDs that provide the standard ATCA management LED functions: Red - Out of Service  Green - In Service  Blue - Hot swap (initializing/shutting down)  Amber - Attention  RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 55: I 2 C Address Map

    The next table summarizes the I C address assignments. Table 4-3 C Bus Address Map Address Device 0x40 I/O Expander (LED control) 0x90 Temperature sensor (top) 0x92 Temperature sensor (middle) 0x94 Temperature sensor (bottom) 0xA0 Serial EEPROM RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 56: 1Gbps Sfp Ports

    The SFP sites allow the fitting of a wide range of third-party SFP modules to support 1000Base-T, long and short range optical connection. Refer to the ATCA-F140 Installation and Use Manual for a list of SFP devices tested with this product. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 57: C Bus

    RTM FPGA to allow control by the service processor. Refer to the FPGA on page 67 details. 10Gbps SFP+ Ports The RTM-ATCA-F140 provides two 10Gbps SFP+ module sites connected to the base switch on the front blade. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 58: Connectivity

    Transmitter Control The TXONOFF signals on the BCM8727 are individually connected to the RTM FPGA which allows them to be driven under software control. This enables software to enable and disable the SFP+ optical outputs. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 59: Bcm8727 Status

    The SFP+ I C bus signals (I2C_SDA and I2C_SCL) from each SFP+ site are individually connected to the corresponding BCM8727 which includes a mechanism to allow access to the port through the PHY management channel. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 60: Sfp+ Status Signals

    Bits Base BIX_XG1 Base SFP+ 2 BIX_XG_MDC/ b1011 MDIO Base BIX_XG0 Base SFP+ 1 10Gbps Fabric Ports The RTM-ATCA-F140 provides four 10Gbps SFP+ module sites connected to the fabric switch on the front blade. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 61: Fabric Connectivity

    Transmitter Control The TXONOFF signals on the BCM84754 are individually connected to the RTM FPGA which allows them to be driven under software control. This enables software to enable and disable the SFP+ optical outputs. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 62: Bcm84754 Status

    The RS0 and RS1 rate select signals from each SFP+ that are tied together and connected to the RTM FPGA that allows them to be controlled by software. Refer to GPS Connectors for further detail. on page 67 RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 63: Phy Management Interfaces

    40GbE logical connection. When the fabric switch is configured for 4x XFI mode, the QSFP+ slot supports four 10GbE connections. This mode assumes the use of a fiber breakout cable on the QSFP+ module (MPO to 4x LC cable). The RTM-ATCA-F140 RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 64: Fabric Front Blade Port Mapping

    LPMODE to the QSFP+ site. This places the PHY and QSFP+ module into low-power mode but may not actually disable the QSFP+ transmitters, according to the QSFP+ specification. Transmitter control should be performed through the software method detailed above. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 65: Bcm84740 Status

    Table 4-9 QSFP+ Connector Pin Assignment Signal Signal TX2- TX1- TX2+ TX1+ TX4- TX3- TX4+ TX3+ MODSEL# LPMODE RESET# VCC1 (+3.3V) VCCR (+3.3V) VCCT (+3.3V) I2C_SCL INT# I2C_SDA MODPRS# RX3+ RX4+ RX3- RX4- RX1+ RX2+ RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 66: Qsfp+ I 2 C Bus

    Table 4-10 BCM84740 PHY Addressing Addr Addr Switch QSFP+ Management Channel Source High Addr Port Port Channel Bits Bits FIX_P14 Fabric FIX_XG_MDC2/ b000 Fabric Lane 0 QSFP+ MDIO2 RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 67: Gps Connectors

    Front Blade Interface The RTM-ATCA-F140 includes an SPI interface between the front blade service processor and the RTM FPGA. There is also an active low interrupt line to the front blade to request service. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 68: Sfp/Sfp+/Qsfp+ Control And Status

    SFP+ transmitters to be disabled as well as putting the PHYs into a low-power mode. The RTM FGPA provides access to the following BCM8727 status signals: PCMULK  PCDRLK  PLOSB  LASI  Each signal can be programmed to cause an interrupt when its state changes. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 69: Bcm84754 Control And Status

    The SPI ports from the BCM8727, BCM84754, and BCM84740 connect to the FPGA along with three SPI flash devices, one for each type. Register settings allow access to be granted to any of the PHYs and also provide a programming port. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 70: Fpga Configuration

    The management power is used to directly power the devices connected to the front blade C bus, namely for serial EEPROM, temperature sensors and I/O extender device. +12V payload power is the source for the on-board DC-to-DC converters needed for the RTM payload. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 71: Power Requirements

    Functional Description 4.10.1 Power Requirements The table below summarizes the power requirements of the RTM-ATCA-F140. Table 4-12 Power Requirements Voltage Maximum Current +3.3V Management 0.2A +12V Payload 2.1A RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 72 Functional Description Functional Description RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 73: Rtm-Atca-F140-D Information

    RTM to the front blade. Figure A-1 Location of Zone 3 Attachment Block and Captive Screw Zone 3 RTM-ATCA-F140-D RTM-ATCA-F140-D Attachment Side View Front View Block Upper Handle Captive Screw Lower Handle RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 74: Figure A-2 Face Plate Of The Rtm-Atca-F140-D

    ETH3 Attention LED ETH4 ETH3-ETH6 Fabric 10G SFP+ Slots ETH5 ETH6 1PPS Input ETH7 Fabric ETH7 40G QSFP+ Slot 10MHz Input ETH8 ETH9 ETH8-ETH11 Base 1G SFP ETH10 Slots ETH11 Hot Swap Time-Of-Day Input RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 75: Rtm Installation

    Check that the lower handle is in the open position. Figure A-3 Upper and Lower Handles Latch Lever 2. Insert the RTM into the shelf by aligning the top and bottom edges of the RTM in the shelf’s card guides. RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 76: Figure A-4 Upper And Lower Handle Locking Mechanisms

    A-4. 6. Push the lower handle’s lever inward to automatically lock the handle latch. Refer to Figure A-4. Figure A-4 Upper and Lower Handle Locking Mechanisms Lower Handle Locking Mechanism Upper Handle Locking Mechanism RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 77: Ordering And Support Information

    Appendix B, Related Documentation on page 79 SMART Embedded Computing sales representative for the availability of other variants. For technical assistance, documentation, or to report product damage or shortages, contact your local SMART EC sales representative or visit https://www.smartembedded.com/ec/support/.
  • Page 78 RTM-ATCA-F140-D Information RTM-ATCA-F140-D Information RTM-ATCA-F140 Series Installation and Use (6806800M97M)

  • Page 79: Related Documentation

    Table B-1 SMART EC Publications Document Title Publication Number ATCA-F140 Data Sheet ATCA-F140 DS ATCA-F140-D Data Sheet ATCA-F140-D DS ATCA-F140 Series Installation and Use 6806800M67 ATCA-F140 Quick Start Guide 6806800M68 AXP1440-D Installation and Use 6806800V13 RTM-ATCA-F140 Series Installation and Use (6806800M97M)
  • Page 80 Related Documentation Related Documentation RTM-ATCA-F140 Series Installation and Use (6806800M97M)
