3. Apply equal and steady pressure to the RTM while carefully sliding the RTM into the
shelf until you feel resistance.
4. Continue to gently push the RTM until the connectors engage with the front blade.
5. Squeeze the upper handle's lever and latch together and hook the upper handle into
the shelf rail recess. Turn the handle toward the face plate to lock it to the shelf. Refer
to
Figure
6. Push the lower handle's lever inward to automatically lock the handle latch. Refer to
Figure

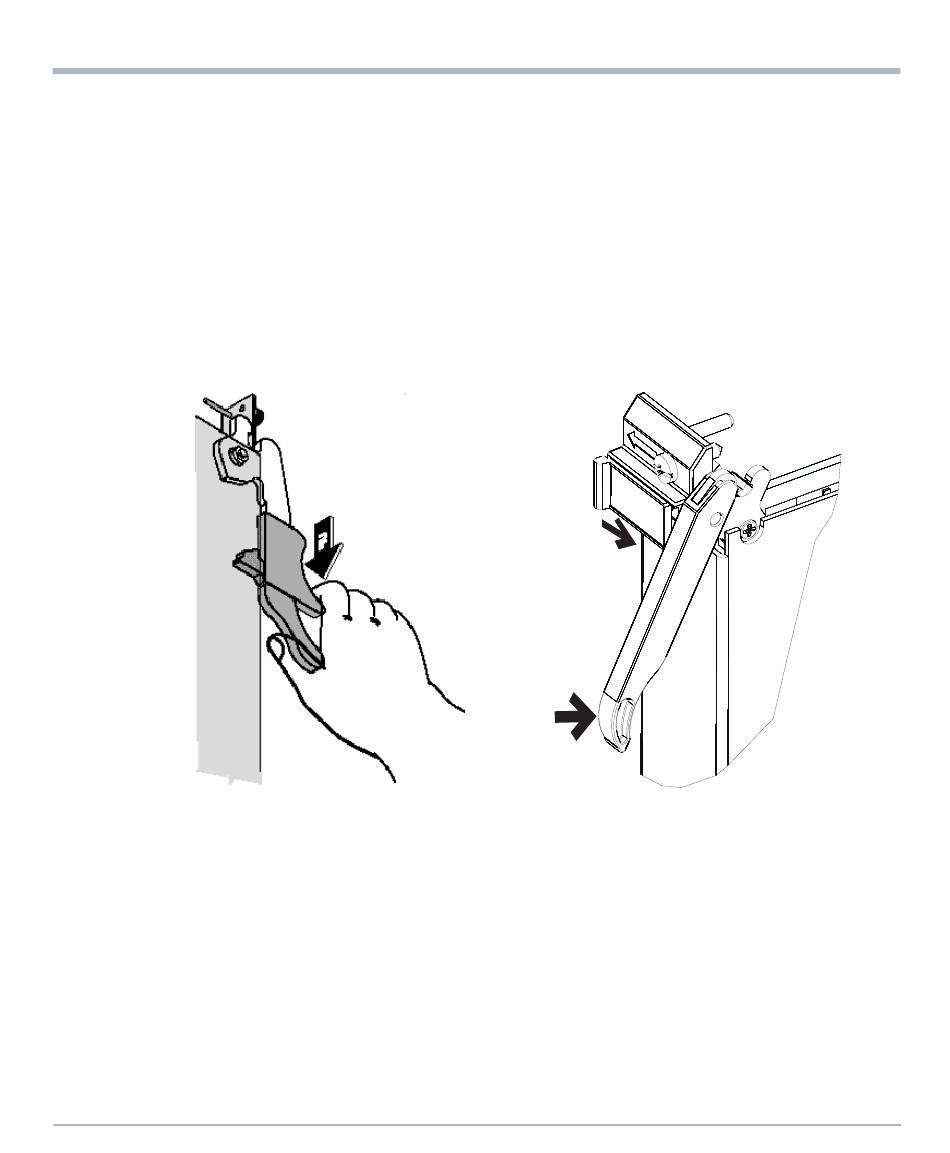

Figure A-4 Upper and Lower Handle Locking Mechanisms

Upper Handle Locking Mechanism
76
A-4.
A-4.
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
RTM-ATCA-F140-D Information
Lower Handle Locking Mechanism
