7. Secure the RTM to the front blade with the captive screw as shown in the following
figure.

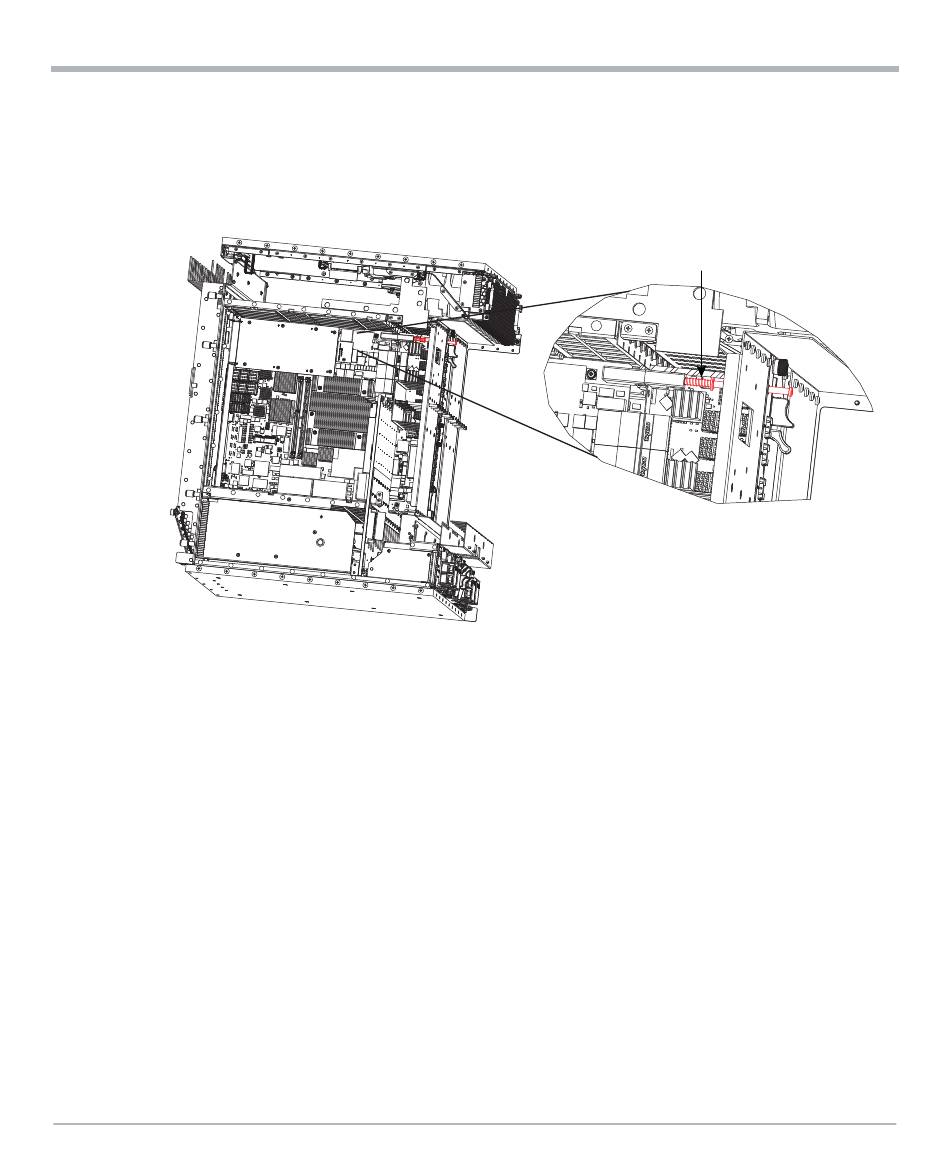

Figure A-5 Captive Screw from the RTM-ATCA-F140-D
8. Tighten the face plate screws that secure the RTM to the shelf.
9. Make sure that the handles of both the RTM and the front blade are closed to power up
the blade and RTM payload.
10. Connect cables to the face plate if needed.
A.3
Ordering and Support Information
The data sheet for the ATCA-F140-D contains a complete list of available RTM variants and
accessories. Refer to
SMART Embedded Computing sales representative for the availability of other variants.
For technical assistance, documentation, or to report product damage or shortages,
contact your local SMART EC sales representative or visit
https://www.smartembedded.com/ec/support/.
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
AXP1440-D Chassis
Appendix B, Related Documentation on page 79
RTM-ATCA-F140-D Information
Captive Screw
or consult your local
77
