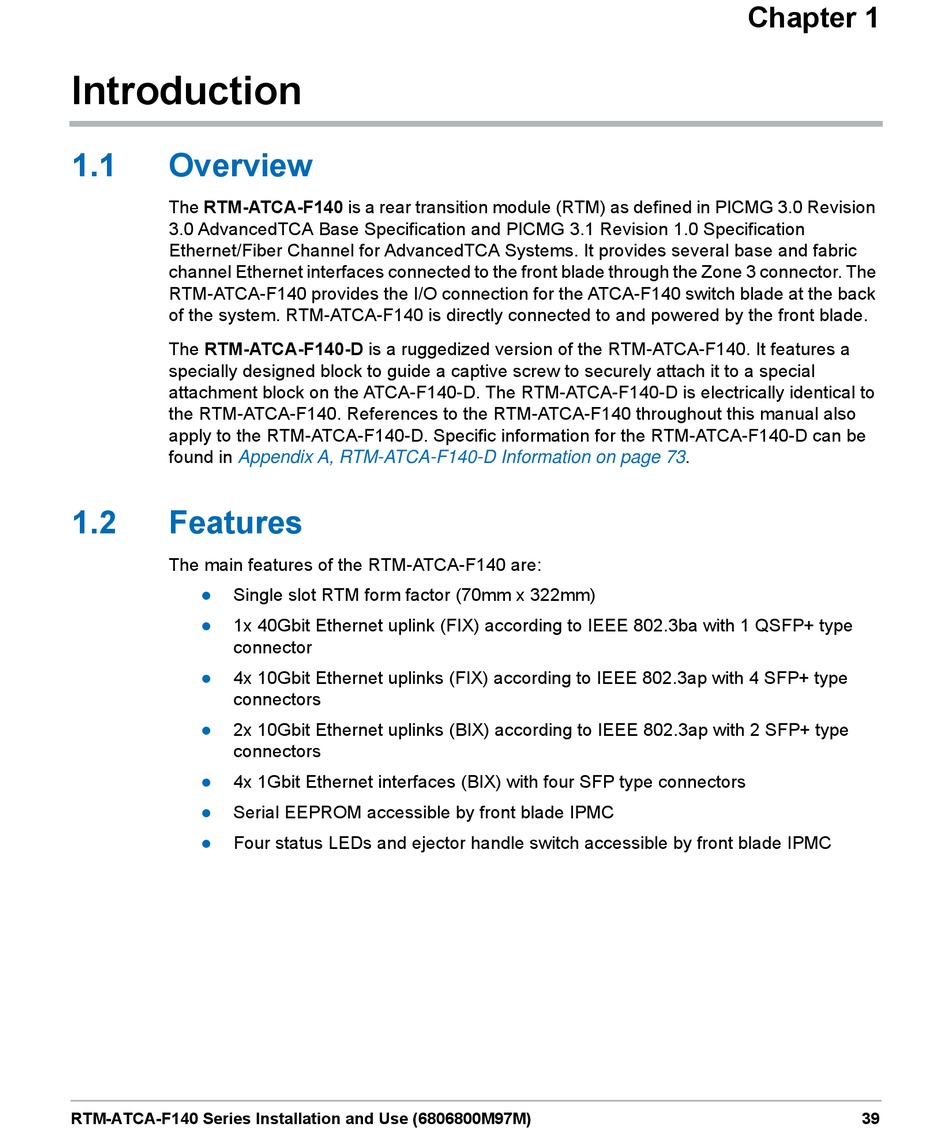

Introduction

1.1

Overview

The RTM-ATCA-F140 is a rear transition module (RTM) as defined in PICMG 3.0 Revision
3.0 AdvancedTCA Base Specification and PICMG 3.1 Revision 1.0 Specification
Ethernet/Fiber Channel for AdvancedTCA Systems. It provides several base and fabric
channel Ethernet interfaces connected to the front blade through the Zone 3 connector. The
RTM-ATCA-F140 provides the I/O connection for the ATCA-F140 switch blade at the back
of the system. RTM-ATCA-F140 is directly connected to and powered by the front blade.
The RTM-ATCA-F140-D is a ruggedized version of the RTM-ATCA-F140. It features a
specially designed block to guide a captive screw to securely attach it to a special
attachment block on the ATCA-F140-D. The RTM-ATCA-F140-D is electrically identical to
the RTM-ATCA-F140. References to the RTM-ATCA-F140 throughout this manual also
apply to the RTM-ATCA-F140-D. Specific information for the RTM-ATCA-F140-D can be
found in
Appendix A, RTM-ATCA-F140-D Information on page
1.2

Features

The main features of the RTM-ATCA-F140 are:
Single slot RTM form factor (70mm x 322mm)
1x 40Gbit Ethernet uplink (FIX) according to IEEE 802.3ba with 1 QSFP+ type
connector
4x 10Gbit Ethernet uplinks (FIX) according to IEEE 802.3ap with 4 SFP+ type
connectors
2x 10Gbit Ethernet uplinks (BIX) according to IEEE 802.3ap with 2 SFP+ type
connectors
4x 1Gbit Ethernet interfaces (BIX) with four SFP type connectors
Serial EEPROM accessible by front blade IPMC
Four status LEDs and ejector handle switch accessible by front blade IPMC
RTM-ATCA-F140 Series Installation and Use (6806800M97M)
Chapter 1
73.
39
