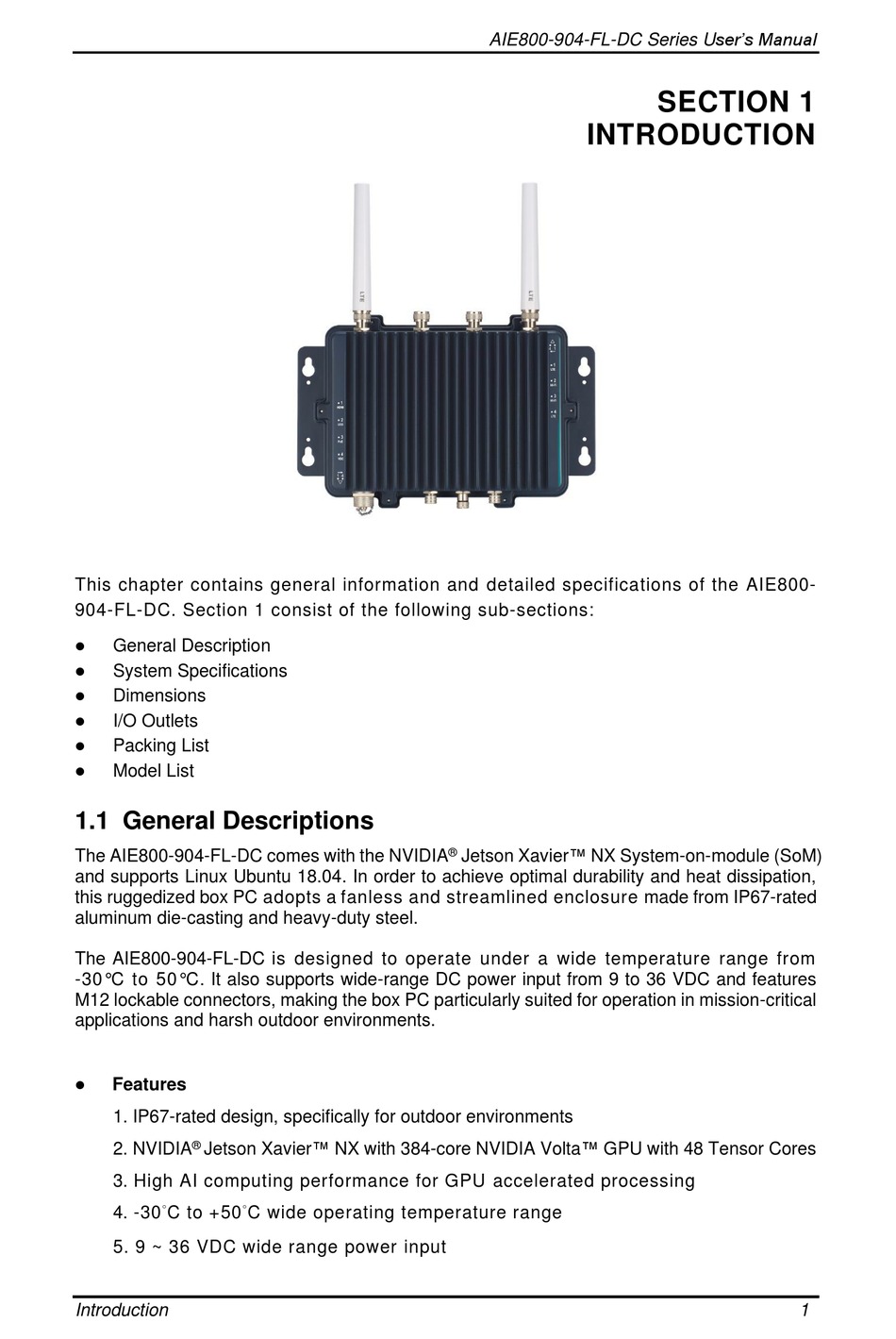

Section 1 Introduction; General Descriptions - AXIOMTEK AIE800-904-FL-DC Series User Manual

This chapter contains general information and detailed specifications of the AIE800-
904-FL-DC. Section 1 consist of the following sub-sections:
⚫ General Description
⚫ System Specifications
⚫
Dimensions
⚫ I/O Outlets
⚫ Packing List
⚫ Model List

1.1 General Descriptions

The AIE800-904-FL-DC comes with the NVIDIA
and supports Linux Ubuntu 18.04. In order to achieve optimal durability and heat dissipation,
this ruggedized box PC adopts a fanless and streamlined enclosure made from IP67-rated
aluminum die-casting and heavy-duty steel.
The AIE800-904-FL-DC is designed to operate under a wide temperature range from
-30°C to 50°C. It also supports wide-range DC power input from 9 to 36 VDC and features
M12 lockable connectors, making the box PC particularly suited for operation in mission-critical
applications and harsh outdoor environments.
⚫ Features
1. IP67-rated design, specifically for outdoor environments
®
2. NVIDIA Jetson Xavier™ NX with 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
3. High AI computing performance for GPU accelerated processing
4. -30°C to +50°C wide operating temperature range
5. 9 ~ 36 VDC wide range power input
Introduction
AIE800-904-FL-DC Series User's Manual
INTRODUCTION
®
Jetson Xavier™ NX System-on-module (SoM)
SECTION 1
1
