TVLogic LVM-070C Operation Manual page 9

3. Controls & Functions
REAR
• • [SDI-IN A] (BNC)
- HD/SD SDI signal input terminal for SDI A.
• • [SDI-OUT A] (BNC)
- HD/SD-SDI signal output terminal for SDI A
signal.
• • [CVSBS1/Pr/R/S-C] (BNC)
- Signal input terminal used to feed themonitor
COMPOSITE 3, S-VIDEO C, COMPONENT Pr and
RGB R signals.
• • [CVBS2/Y/G/S-Y] (BNC)
- Signal input terminal used to feed the monitor
COMPOSITE 1, S-VIDEO Y, COMPONENT Y and
RGB G signals.
• • [CVSBS3/Pb/B] (BNC)
- Signal input terminal used to feed the monitor
COMPOSITE 2, RGB B and COMPONENT Pb
signals.
Connector Composite Component
1 CVBS1
2 CVBS2
3 CVBS3
• • AUDIO IN (phone jack)
- Internal speakers stereo audio input terminal.
• • [HDMI] IN
- Signal input terminal for HDMI signal.
S-Video
Pr C
Y Y
Pb No Con.
• • BATTERY IN
- Battery Power Input : DC 12V
* Rated Power Input : DC 12V

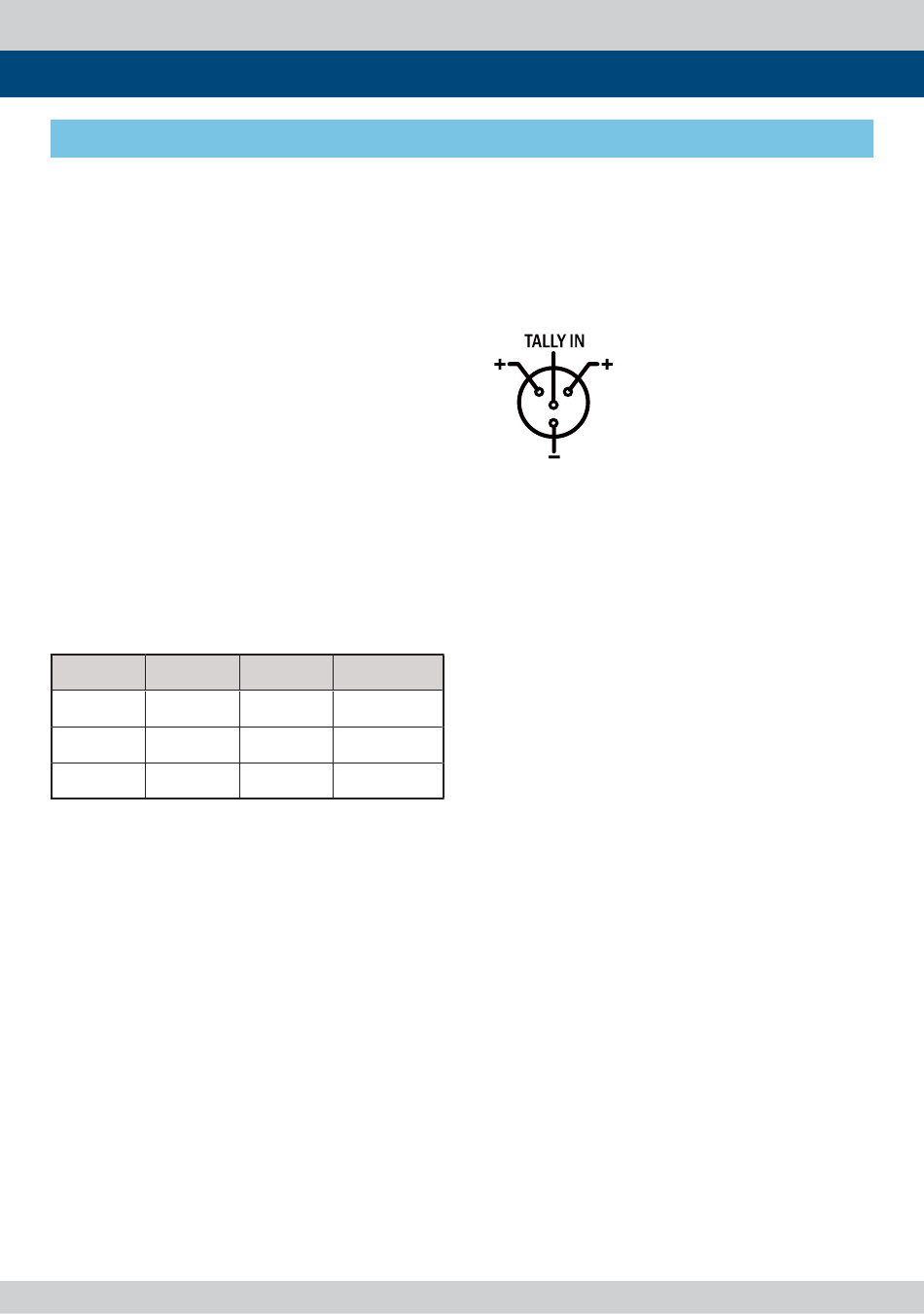

• • DC POWER IN / TALLY (XLR 4P)
- DC power input terminal for DC 12V.
* When using a DC Adapter other than the one
supplied by the manufacturer, please be
advised that the adapter with DC 12V/3A ~ 6A
can be compatible with the monitor.
<Warning!!>
When using the product make sure to ground,
whenever possible, before connecting the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal noise,
malfunction of main board or display panel.
And the connected devices such as camera or
video source player may also be infl uenced
through signal cable. Please check if the AC
power source and the power extender or
power distributor is grounded.
Multi Format LCD Monitor 9
