5. Menu Operations

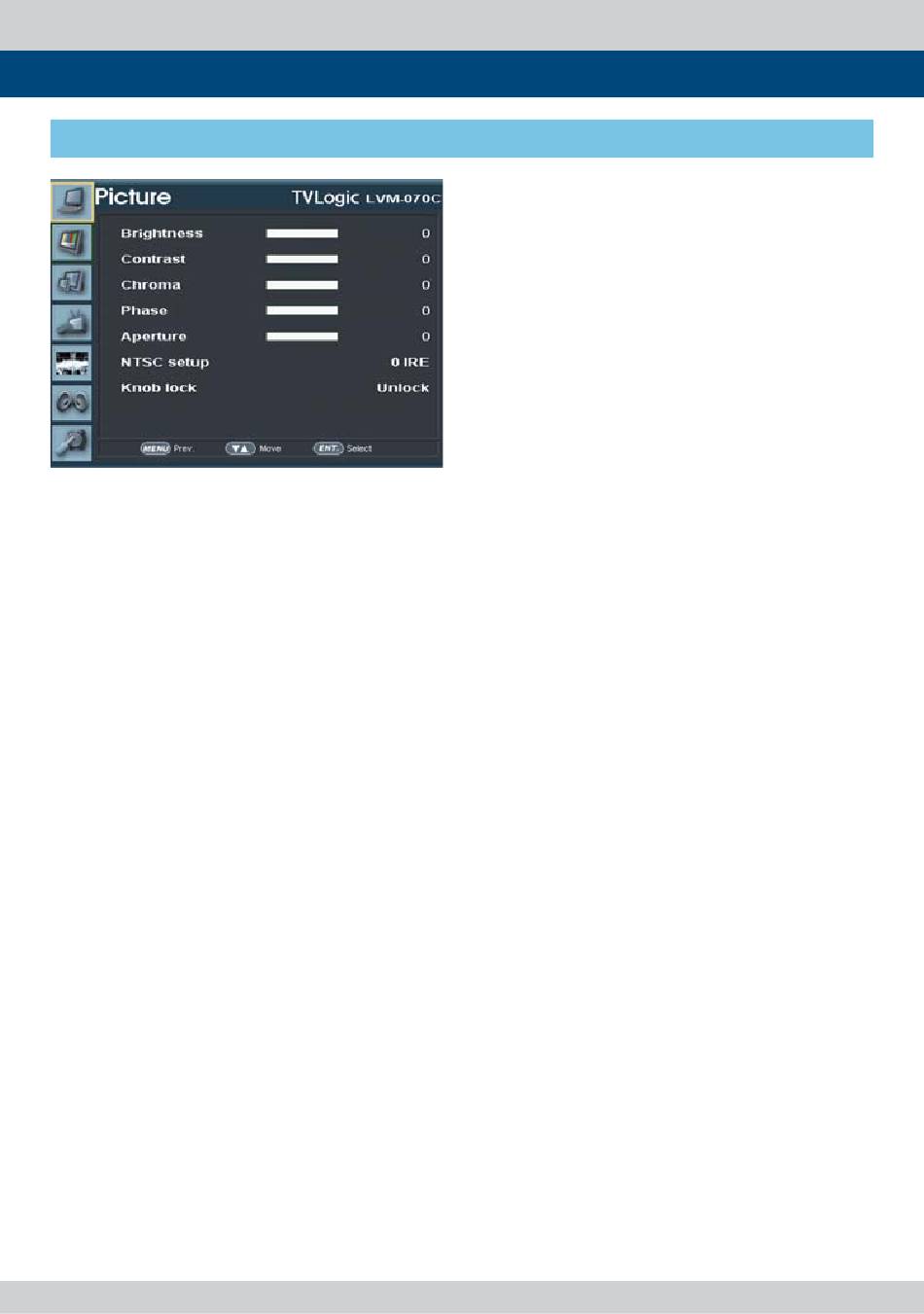

[1] Picture

• • Brightness
- Used to set the brightness(=off set) level from
-100 to 100.
# Press the Knob to adjust Brightness quickly.
• • Contrast
- Used to set the contrast(gain) level from -100
to 100.
# Press the Knob to adjust Contrast quickly.
• • Chroma
- Used to set the saturation level from -50 to 50.
• • Phase
- Used to set the hue(phase) level from -40 to
40. (Activates only in analog signal input.)
• • Aperture
- Used to set the sharpness level from -5 to 19.
# Press the Knob to adjust Aperture quickly.
• • NTSC Setup
- Used to set Black Level of NTSC video as 0(zero
setup) or 7.5 IRE.
- Activated when NTSC video signal is input
through Composite 1/2/3 or S-VIDEO terminal.
• • Knob Lock
- Locks the Knob control(BRIGHT, CONTRAST,
F5/VOLUME) and buttons.
Multi Format LCD Monitor 11
