TVLogic LVM-070C Operation Manual page 26

7. Other Functions

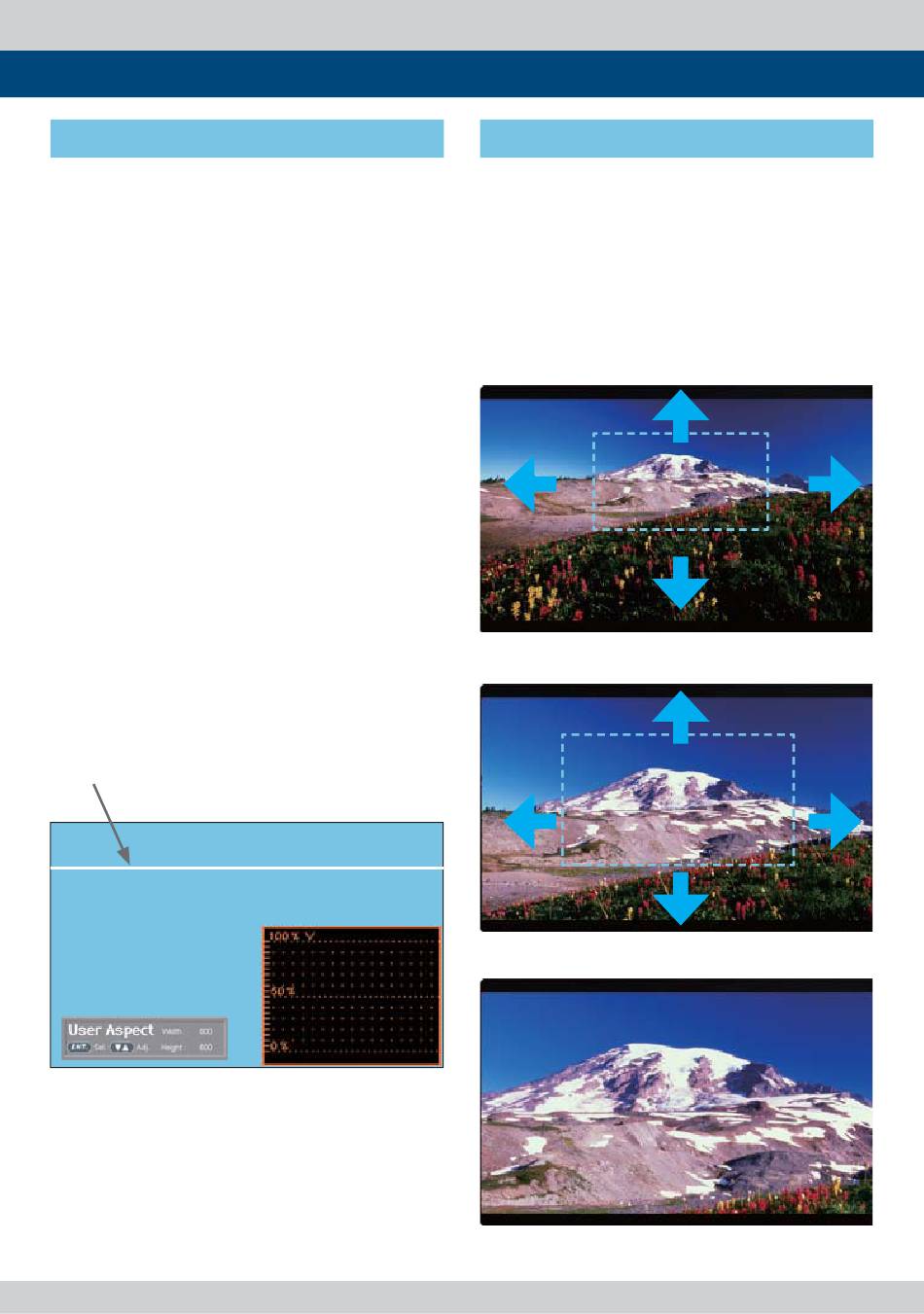

[4] Line Select
• • Used to select specifi c Vertical Line for
WaveForm/VectorScope.
- It is available when LINE WaveForm is
activated.
- To activate this feature, go to [Waveform]-
[Select Line Position] and use the Knob to
select a vertical line.
- Control range varies according to the
resolution of the input SDI signal.
* PAL : Min 17, Max 522
* NTSC : Min 23, Max 623
* 720p : Min 26, Max 750
* 1080i : Min 21, Max 1123
* 1080p : Min 42, Max 1121
- Control range for HDMI/Analog signal varies
according to the output resolution of the
signal.
* Min 0, Max 600
* Selected line is indicated on the screen.
26 Multi Format LCD Monitor
(Waveform/VectorScope)
[5] Zoom
• Used to magnify the input signal from 0% •
to 90%.
• • Supports Zoom Width Scroll / Zoom Height
Scroll function.
• • Zooms IN/OUT focused on the scrolled
area.
<ZOOM OFF>
<ZOOM 50%>
<ZOOM 75%>
