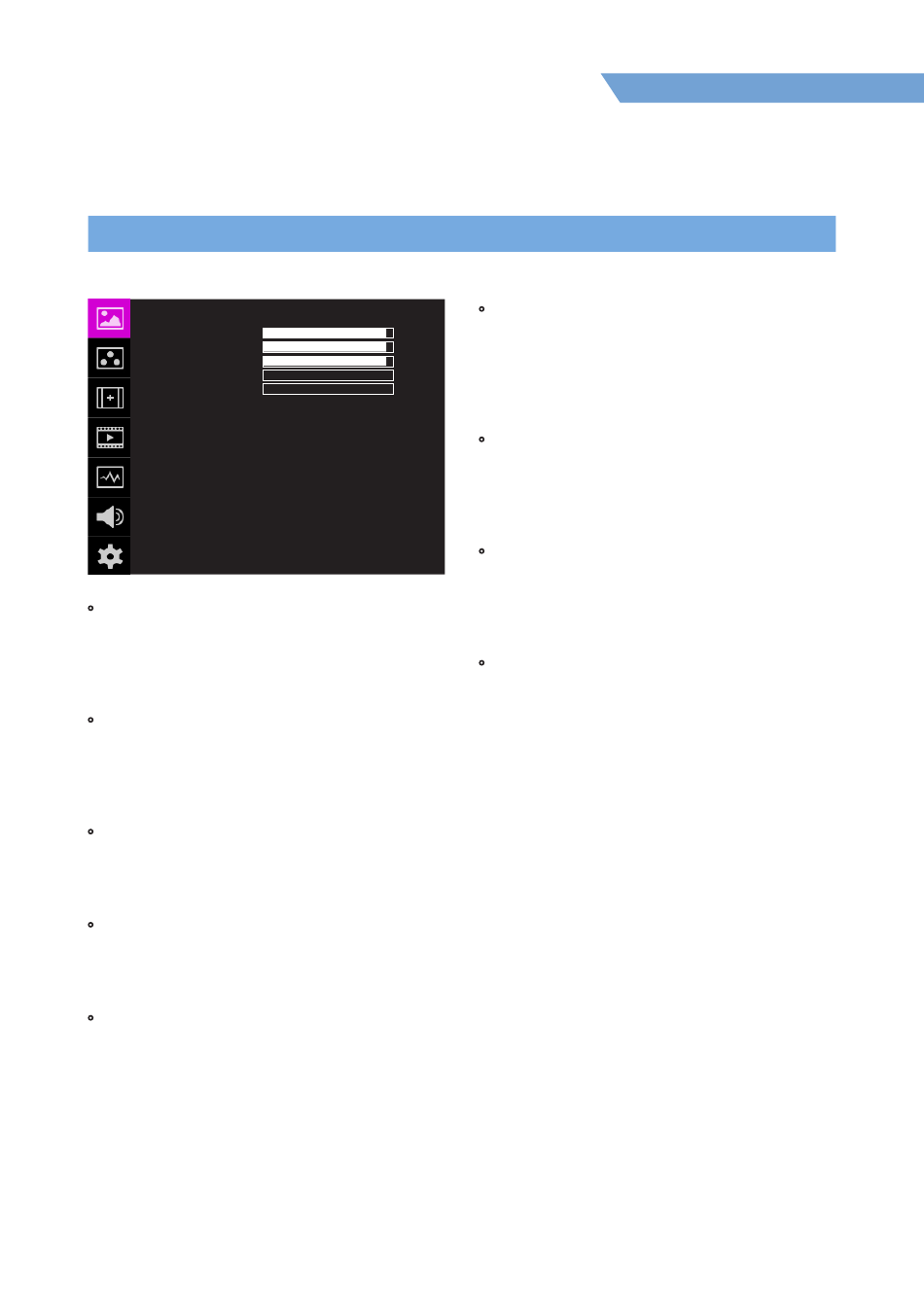

05 MENU OPERATIONS

[1] PICTURE
같이
BRIGHT
CONTRAST
CHROMA
SHARPNESS
PEAKING BOOST
UNLOCK
KNOB LOCK
3DLUT LOAD
REC 709
3DLUT SYNC
SYNCHRONIZATION
3DLUT IMPORT 1
NONE 1
3DLUT IMPORT 2
NONE 1
3DLUT IMPORT 3
NONE 1
• BRIGHT
- Used to set the brightness(=offset) level from
-100 to 100.
* Brightness can be adjusted by using the Knob
on the top of the monitor.
• CONTRAST
- Used to set the contrast(gain) level from -100 to
100.
* Contrast can be adjusted by using the Knob on
the top of the monitor.
• CHROMA
- Used to set the saturation level from -50 to 50.
* Chroma can be adjusted by using the Knob on
the top of the monitor.
• SHARPNESS
- Used to set the Sharpness level from 0 to 24.
* Sharpness can be adjusted by using the Knob
on the top of the monitor.
• PEAKING BOOST
- Used to set the Peaking Boost level from 0 to 24.
* Peaking Boost can be adjusted by using the
Knob on the top of the monitor.
• KNOB LOCK
F-7HS
- Locks the Knob control.
+90
- If [KNOB LOCK] is set to [LOCK], the Knob is
+90
activated only when the OSD pops up.
+40
0
While the OSD doesn't pop up, the Knob is
0
deactivated.
• 3DLUT LOAD
- Used to apply the internally stored 3D LUT.
- Maximum three files of 3D LUT can be stored.
- The file name can be set up to 20 characters
including the extension.
• 3DLUT SYNC
- Used to load a list of available 3D LUT files
currently stored in the FLASH MEMORY.
- Available 3D LUT format is CUBE.
- Available sizes of the 3D LUT are 17 or 33.
• 3DLUT IMPORT 1/2/3
- Used to save the 3D LUT stored in the external
memory to the internal memory 1/2/3 area.
- Once saved, the 3D LUT can be maintained
even when the power is turned ON/OFF.
- The file name can be set up to 20 characters
including the extension.
FHD Hight Bright Field Monitor
11
11
