8.16 Changing Motorized Conveyor
Stacker Positions
The stacker can be installed in three positions:
• In line (0°)
• At +90°
• At -90°.
How to Install the Motorized Conveyor Stacker in Line (0°)

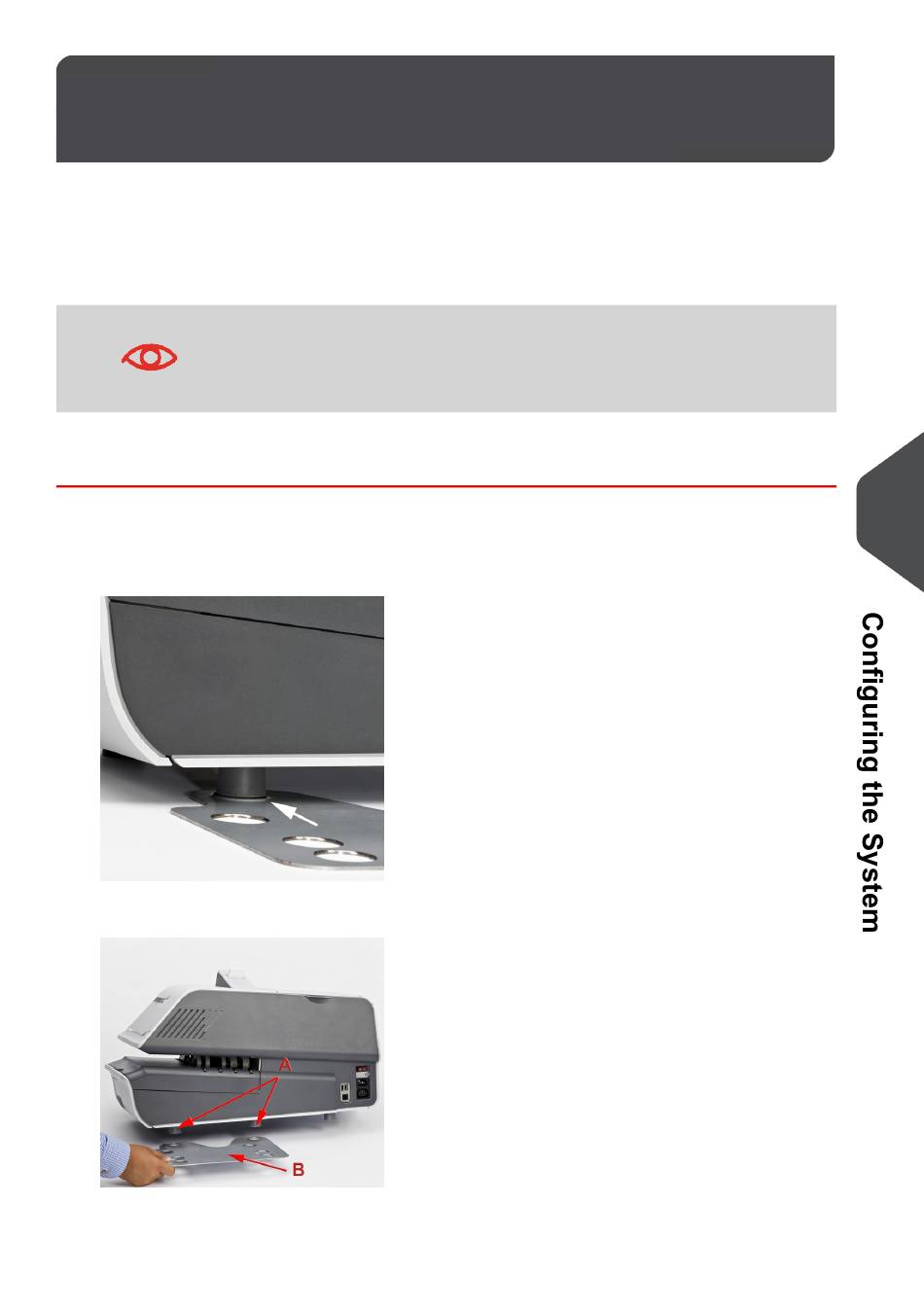

Assembly of the metallic attachment base
1. Put the flange of the two fixation holes as shown by the arrow.
2. Attach the two feet of the Base in the two holes of the metallic attachment base B.
The installation at -90° will be done by the technician who will have
to set the corresponding conveying speed and direction of conveyor.
