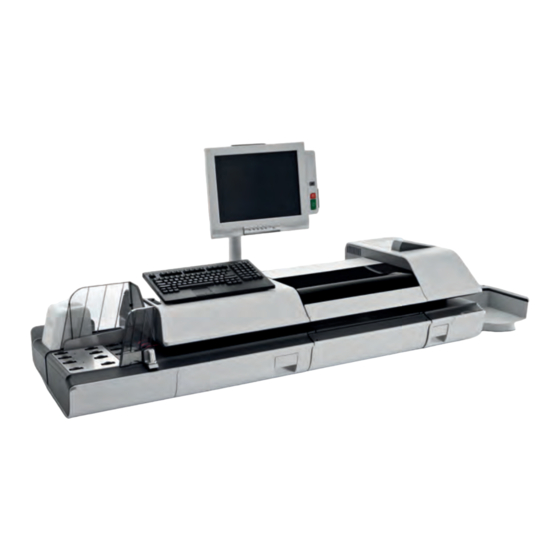

quadient IS-6000 Installation Manual
Postage meter
Hide thumbs
Also See for IS-6000:
- User manual (386 pages) ,
- Getting to know (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for quadient IS-6000
Summary of Contents for quadient IS-6000

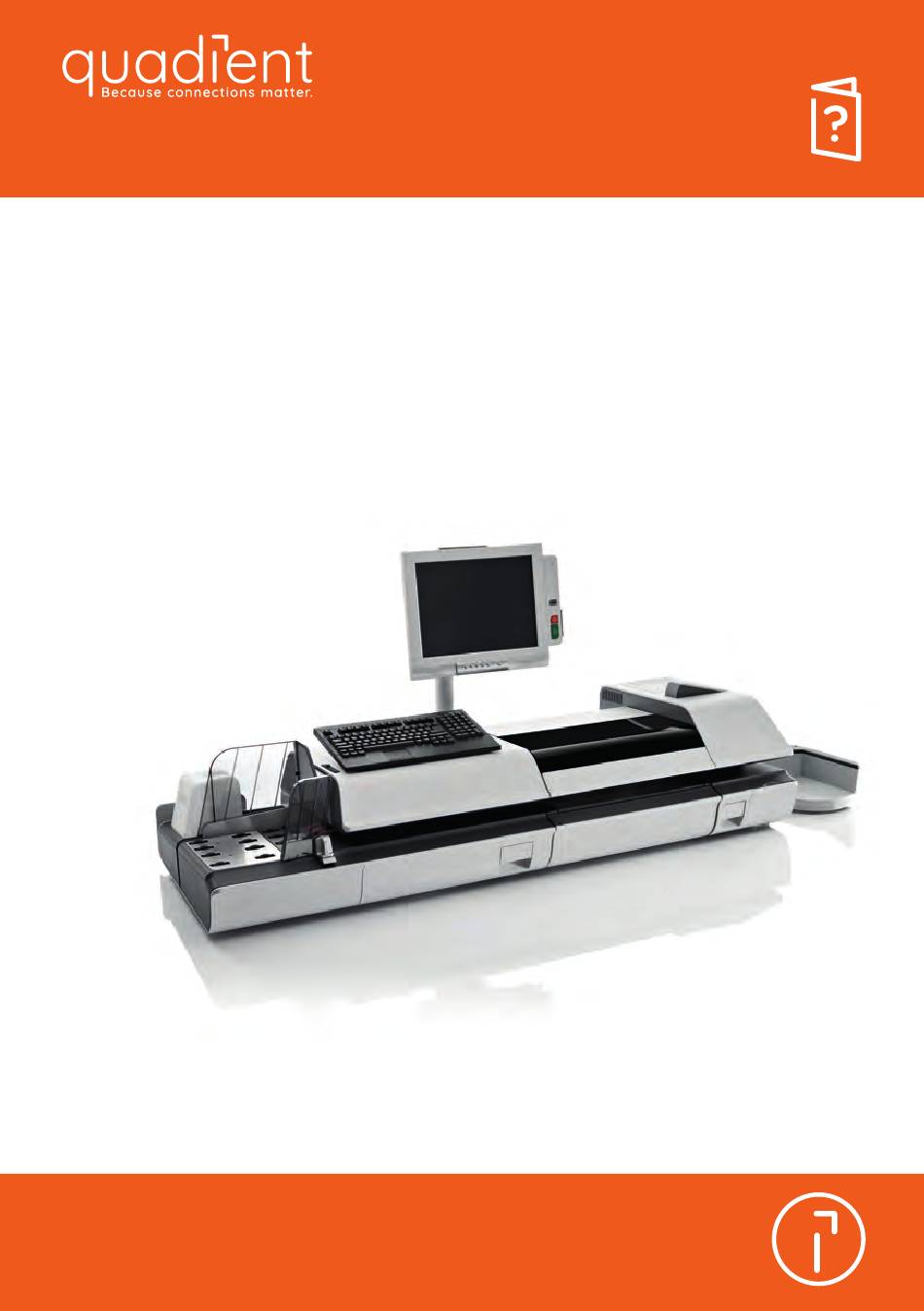

- Page 1 Installation Guide Postage meter IS-6000...
-
Page 2: Safety Requirements
Safety Requirements Please read this section carefully before connecting or using your equipment. Power Connection Before powering up your Franking System, please check to ensure the system meets your local AC voltage requirements. For information on power specifications, please refer to the plates at the back of each System component. - Page 3 Compliance Energy Star® Compliance Office equipment is generally powered on 24 hours a day, so power management features are important for saving energy and reducing air pollution. Your Postage Meter is an Energy Star® qualified Postage Meter that automatically goes into a low-power 'Sleep' mode after a period of inactivity.
-
Page 4: How To Turn The System On/Off
How to Turn the System ON/OFF Press either side of the switch to turn the Postage Meter ON or OFF. - The dash (or I) indicates the ON side. - The circle (or O) indicates the OFF side. After switching the system OFF, there may be a delay of up to 20 seconds to park the print head and free the remaining voltage. -
Page 5: How To Switch Between 'Sleep' And 'Wake' Modes
How to Switch Between 'Sleep' And 'Wake' Modes Press the Sleep/Wake key to switch between “Sleep” and “Wake” modes. To avoid weighing errors, make sure the Weighing Platform is clear when you Wake up the machine. Mail processing Start/Stop To process mail, use the following keys. START / STOP KEYS Stop Red button –... -
Page 6: General Specifications
General Specifications Base • Dimensions(cm) (Width x Length x Height): 64 x 22 x 34 • Weight: 21kg • Power supply: 230 V (+/- 10 %) 3 prong • Frequency: 50Hz • Maximum Input Power: 294W • Ambient Temperature: + 10 °C to 40 °C Relative Humidity: 20 % to 80 % relative humidity (without condensation). - Page 7 System Connections Base + Feeder Power...
- Page 8 Base + Feeder + Dynamic Weighing Module Power...
-
Page 9: Base + Stacker
Base + Stacker Power... -
Page 10: System Connectors
System Connectors Base connectors On the left-hand side The ON/OFF switch is located at the rear of the right ON/OFF switch hand side of the Postage Meter base. Power connector To wall socket Power connector To Conveyor Stacker RJ 45 For future use USB ports To any USB device*... - Page 11 On the right-hand side USB ports To any USB devices* RS232 (COM1/2) To Weighing Platform To Feeder or Dynamic Weighing Module DVI Connector To display Power connector USB devices : Keyboard, Printer, Modem, LAN adaptor, Bar Code Reader… All USB devices have to be plugged with the system powered OFF.
-
Page 12: Feeder Connectors
Feeder connectors Power connector To Feeder or Dynamic Weighing Module RJ45 For future use Dynamic Weighing Module connectors To Base To Feeder Power connector... -
Page 13: Conveyor Stacker Connectors
Power connector To Base Conveyor Stacker connectors Power connector A0044489/B - 16/04/2020... - Page 14 Safety Requirements Please read this section carefully before connecting or using your equipment. Power Connection Before powering up your Franking System, please check to ensure the system meets your local AC voltage requirements. For information on power specifications, please refer to the plates at the back of each System component.
- Page 15 Compliance Energy Star® Compliance Office equipment is generally powered on 24 hours a day, so power management features are important for saving energy and reducing air pollution. Your Postage Meter is an Energy Star® qualified Postage Meter that automatically goes into a low-power 'Sleep' mode after a period of inactivity.
- Page 16 How to Turn the System ON/OFF Press either side of the switch to turn the Postage Meter ON or OFF. - The dash (or I) indicates the ON side. - The circle (or O) indicates the OFF side. After switching the system OFF, there may be a delay of up to 20 seconds to park the print head and free the remaining voltage.
- Page 17 How to Switch Between 'Sleep' And 'Wake' Modes Press the Sleep/Wake key to switch between “Sleep” and “Wake” modes. To avoid weighing errors, make sure the Weighing Platform is clear when you Wake up the machine. Mail processing Start/Stop To process mail, use the following keys. START / STOP KEYS Stop Red button –...
- Page 18 General Specifications Base • Dimensions(cm) (Width x Length x Height): 64 x 22 x 34 • Weight: 21kg • Power supply: 230 V (+/- 10 %) 3 prong • Frequency: 50Hz • Maximum Input Power: 294W • Ambient Temperature: + 10 °C to 40 °C Relative Humidity: 20 % to 80 % relative humidity (without condensation).
-
Page 19: System Connections
System Connections Base + Feeder Power... - Page 20 Base + Feeder + Dynamic Weighing Module Power...
- Page 21 Base + Stacker Power...
- Page 22 System Connectors Base connectors On the left-hand side The ON/OFF switch is located at the rear of the right ON/OFF switch hand side of the Postage Meter base. Power connector To wall socket Power connector To Conveyor Stacker RJ 45 For future use USB ports To any USB device*...
- Page 23 On the right-hand side USB ports To any USB devices* RS232 (COM1/2) To Weighing Platform To Feeder or Dynamic Weighing Module DVI Connector To display Power connector USB devices : Keyboard, Printer, Modem, LAN adaptor, Bar Code Reader… All USB devices have to be plugged with the system powered OFF.
- Page 24 Feeder connectors Power connector To Feeder or Dynamic Weighing Module RJ45 For future use Dynamic Weighing Module connectors To Base To Feeder Power connector...
- Page 25 Power connector To Base Conveyor Stacker connectors Power connector A0044489/B - 16/04/2020...
- Page 26 A0044489/B - 16/04/2020...
