Front Panel Controls and Indicators

All models of the DXP have the same front panel with the same controls and layout. The
front panel buttons are grouped into two sets, with the input and output buttons located
on the left side of the control panel and the control buttons on the right.
buttons to have amber background illumination all the time, or you can disable the
illumination (see
Depending on the operation, the buttons blink or light steadily when pressed.
The front panel buttons have multiple functions. In the descriptions on the following
pages, primary functions are preceded by a square (❏) and secondary functions are
preceded by a bullet ( ).
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Figure 10.
Room — A subset of outputs that are logically related to each other, as determined
by the operator. The switchers support up to 10 rooms, each of which can consist of 1
Room memory preset — A configuration consisting of outputs in a single room
current configuration for the outputs assigned to that room only (none of the other
outputs are affected).
"Setting the Button Background
1
INPUTS
OUTPUTS
2

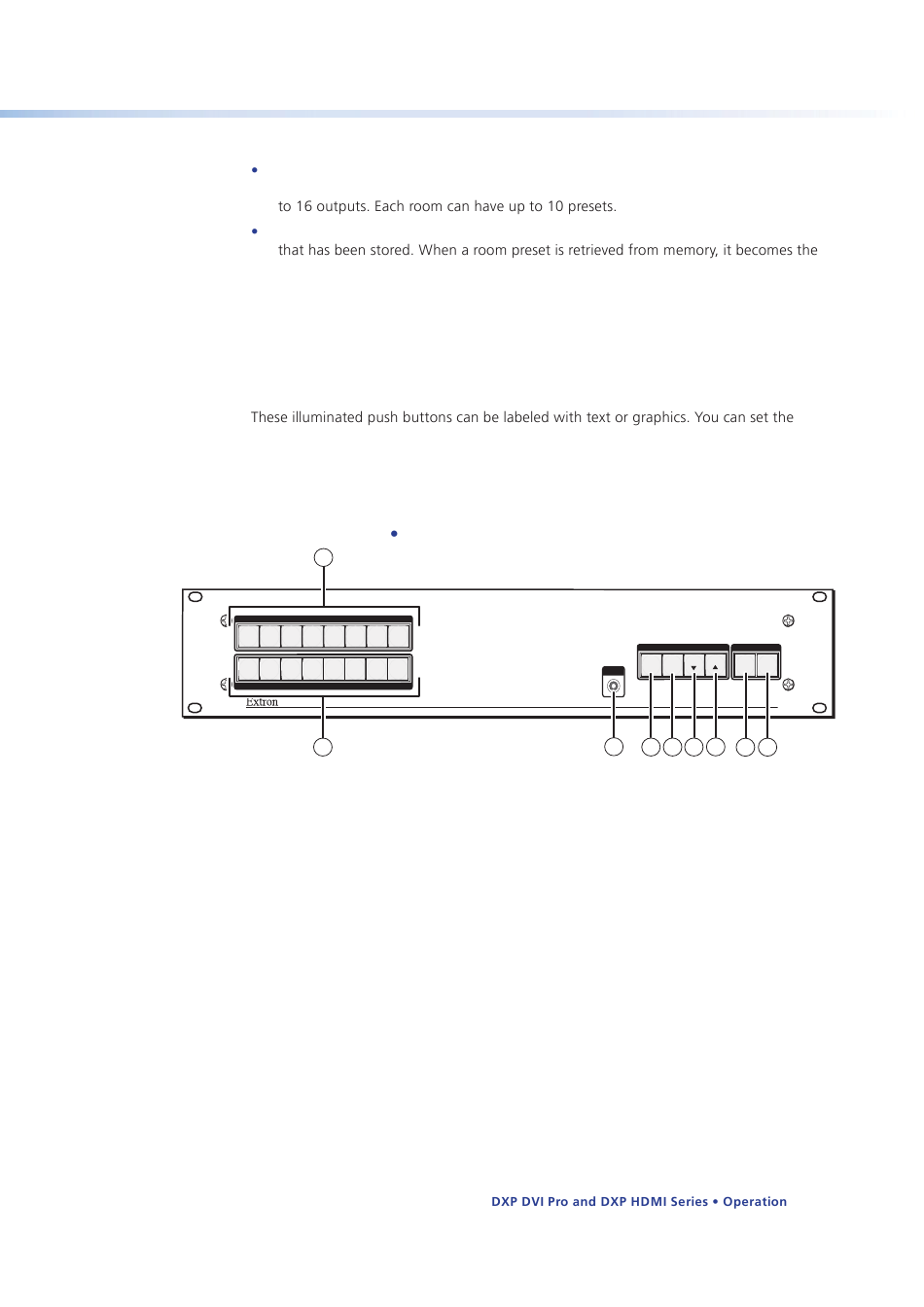

DXP Switchers Front Panel
Illumination" on page 42).
CONTROL I/O
VIEW ESC
ENTER PRESET VIDEO AUDIO
CONFIG
DXP SERIES
DIGITAL CROSSPOINT MATRIX SWITCHER
3 4 5 6 7
8 9
12
