Basic RF testing in SPORT Mode

1. Select the "RF Settings" Tab and set the RF parameters as required. (
2. If not already in PHY_ON enter this state by pressing CMD_PHY_ON. (
3. Select the SPORT Mode (
4. Press Update Needed. This writes the settings to BBRAM and then does a CMD_CONFIG_DEV.
( Figure 26 point (3))
5. Press CMD_PHY_RX. The part now enters PHY_RX. (
6. To exit PHY_RX press CMD_PHY_ON (
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Figure 26 point (2))
Figure 26 point (4))
Figure 26 point (5))

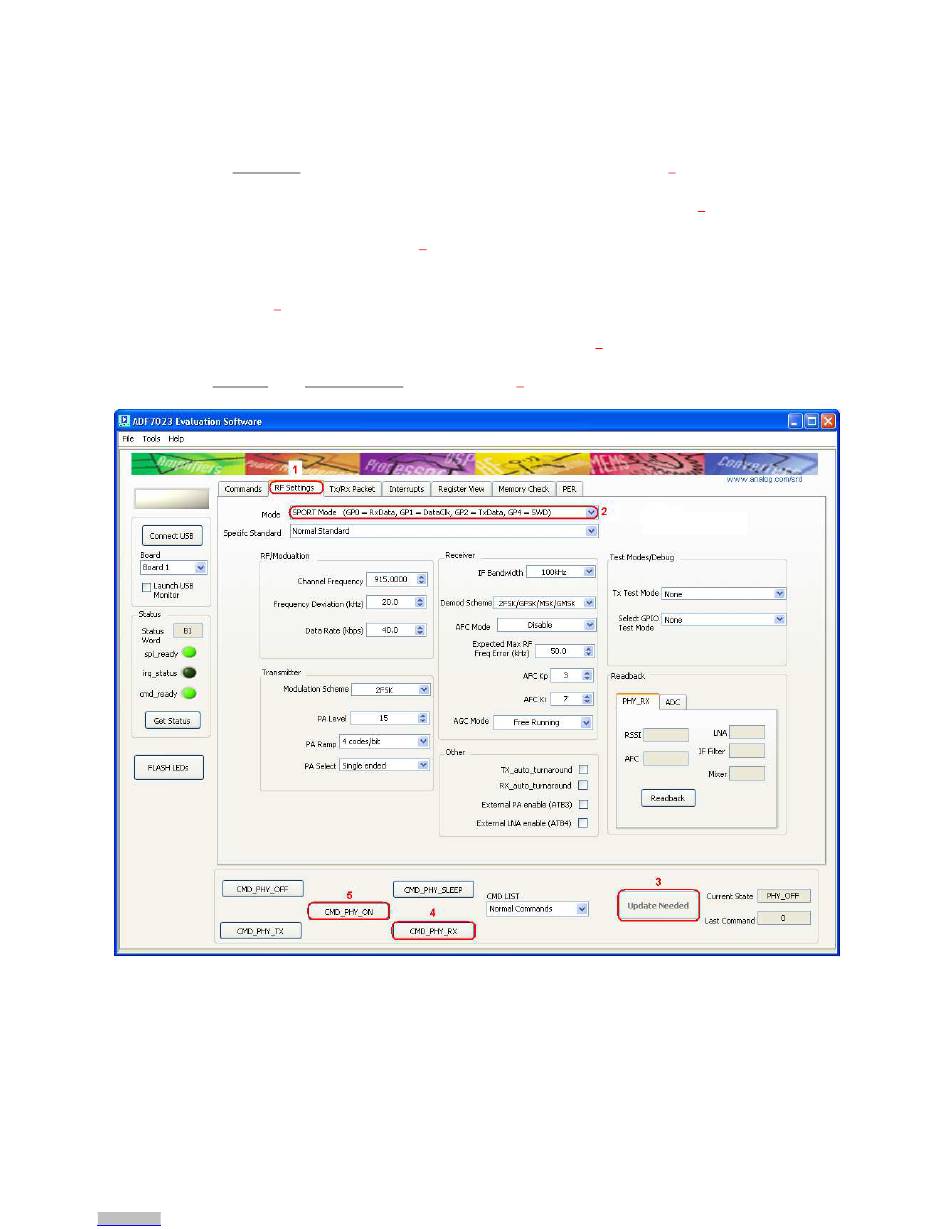

Figure 26
