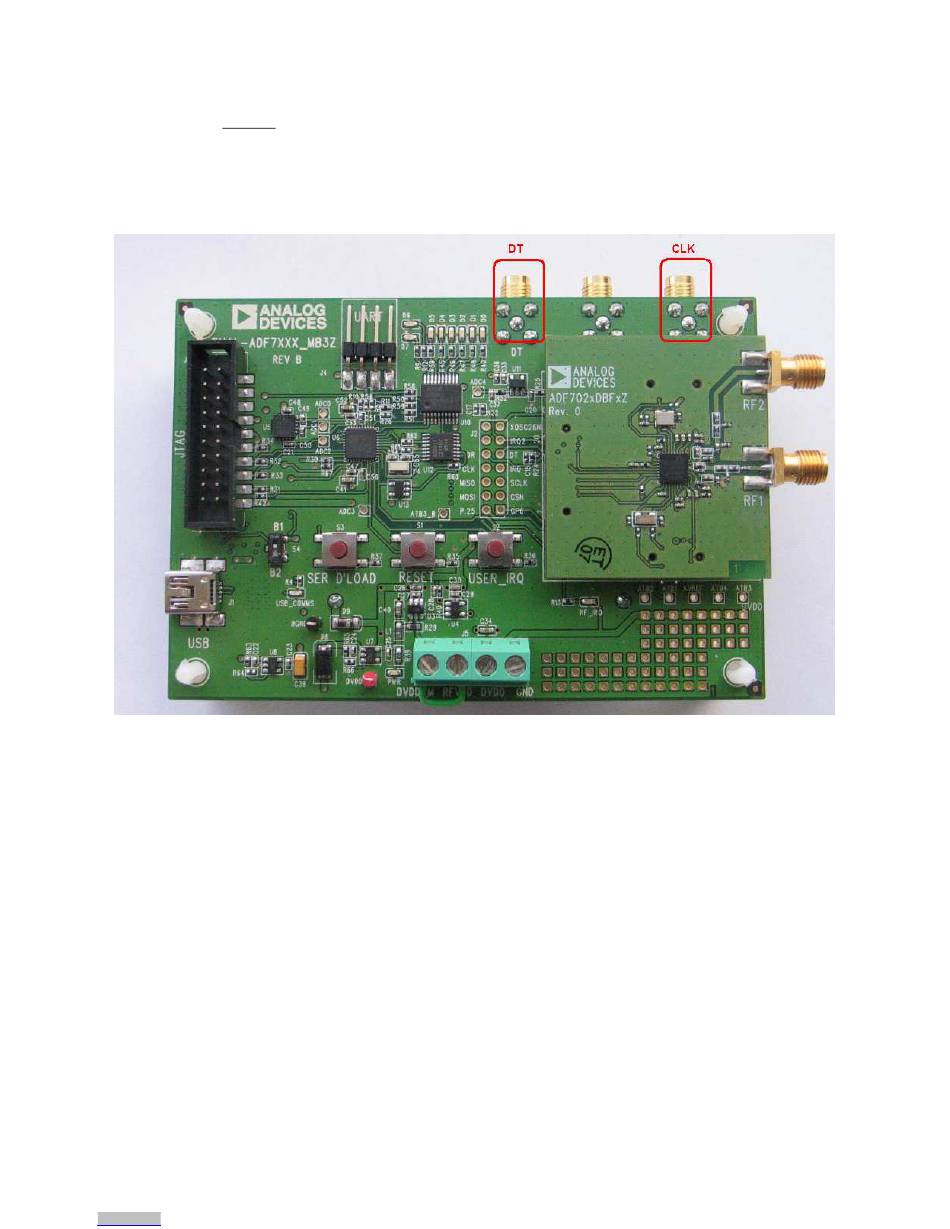

While in PHY_Tx with SPORT mode enabled, the transmitted data must synchronized with the output clock
seen on the CLK SMA connector on the mother board as shown in (
•
The Tx data line, from the users Tx device, should be connected to the DT SMA connector as shown in
( Figure 30 ).
