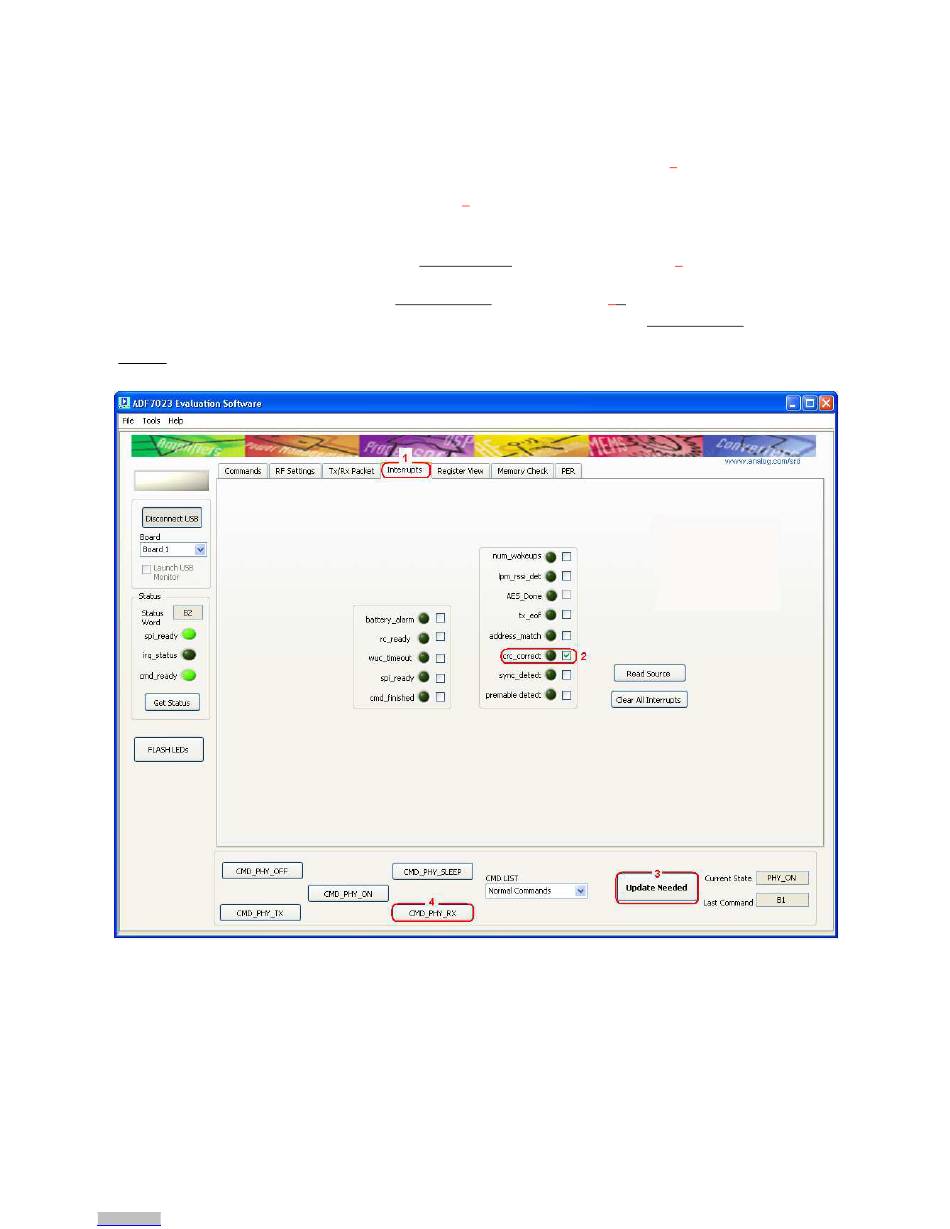

Receiver Board Interrupts

Interrupts may be configured for various conditions in the "Interrupts" tab. (

Set the "crc_correct" interrupt. (

This will give an interrupt signal upon reception of a packet with a valid CRC.

Write the settings to the device using the "Update Needed" button. (

Put the part into Receive by pressing "CMD_PHY_RX" (

(Note: Ensure that the current state of the part is in "PHY_ON" before pressing "CMD_PHY_RX".)

"Board 1" is now in Receive and waits for a transmitted signal. It will remain in Rx until a valid packet with a valid CRC is

received.

Arrow.com.

Downloaded from

Figure 33 point (2))

Figure 33 point (4))

Figure 33

R e v 1 . 1

| Page 26

Figure 33 point (1))

Figure 33 point (3))
