Entering PHY_TX for basic RF Carrier testing

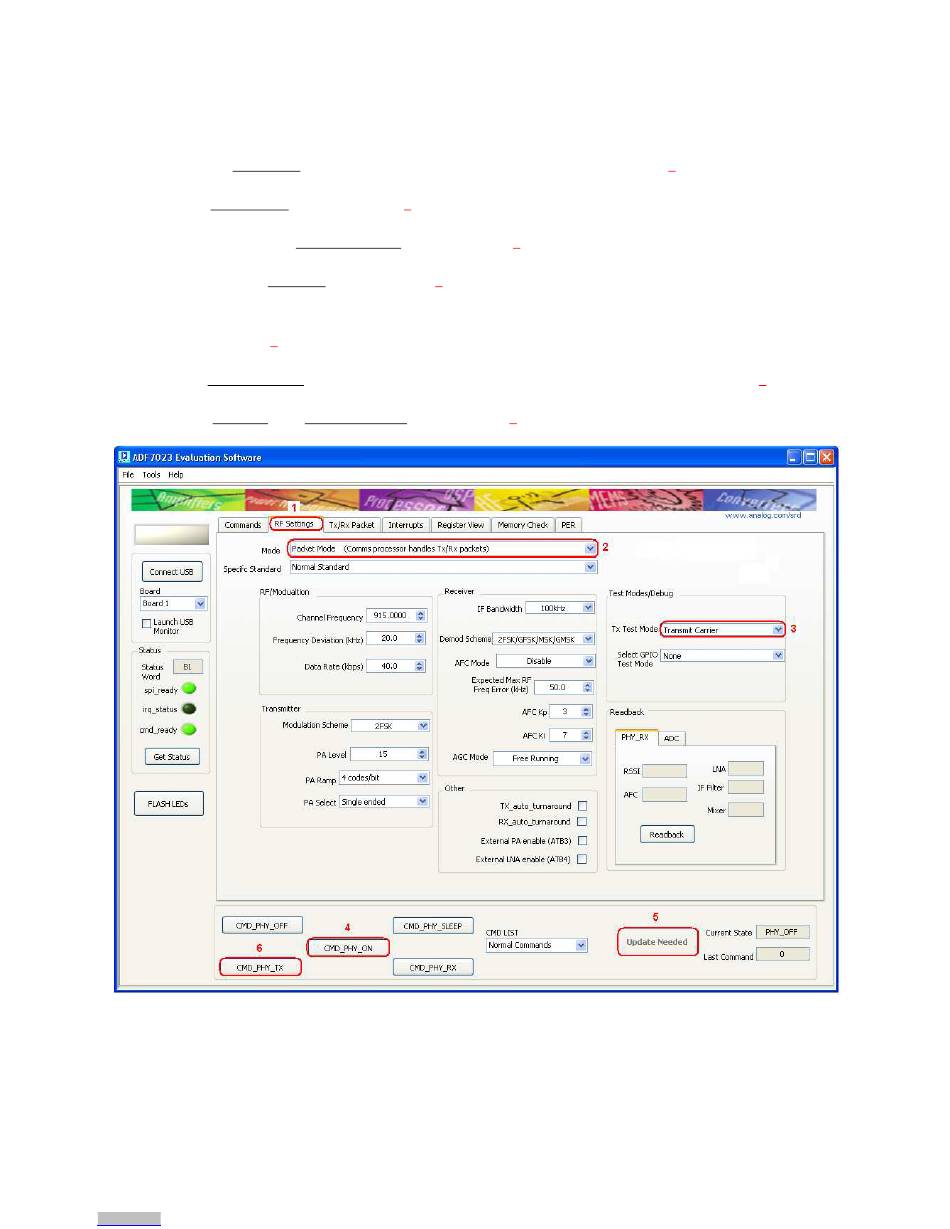

1. Select the "RF Settings" Tab and set the RF parameters as required. (
2. Select "Packet Mode" (
3. Set Tx Test Mode to "Transmit Carrier" (
4. Ensure part is in PHY_ON (
5. Press Update Needed. This writes the settings to BBRAM and then does a CMD_CONFIG_DEV
( Figure 28 point (5))
6. Press "CMD_PHY_TX" to enter transmit mode (continuous carrier transmission) (
7. To exit PHY_TX press CMD_PHY_ON (
