Mother Board Firmware Version

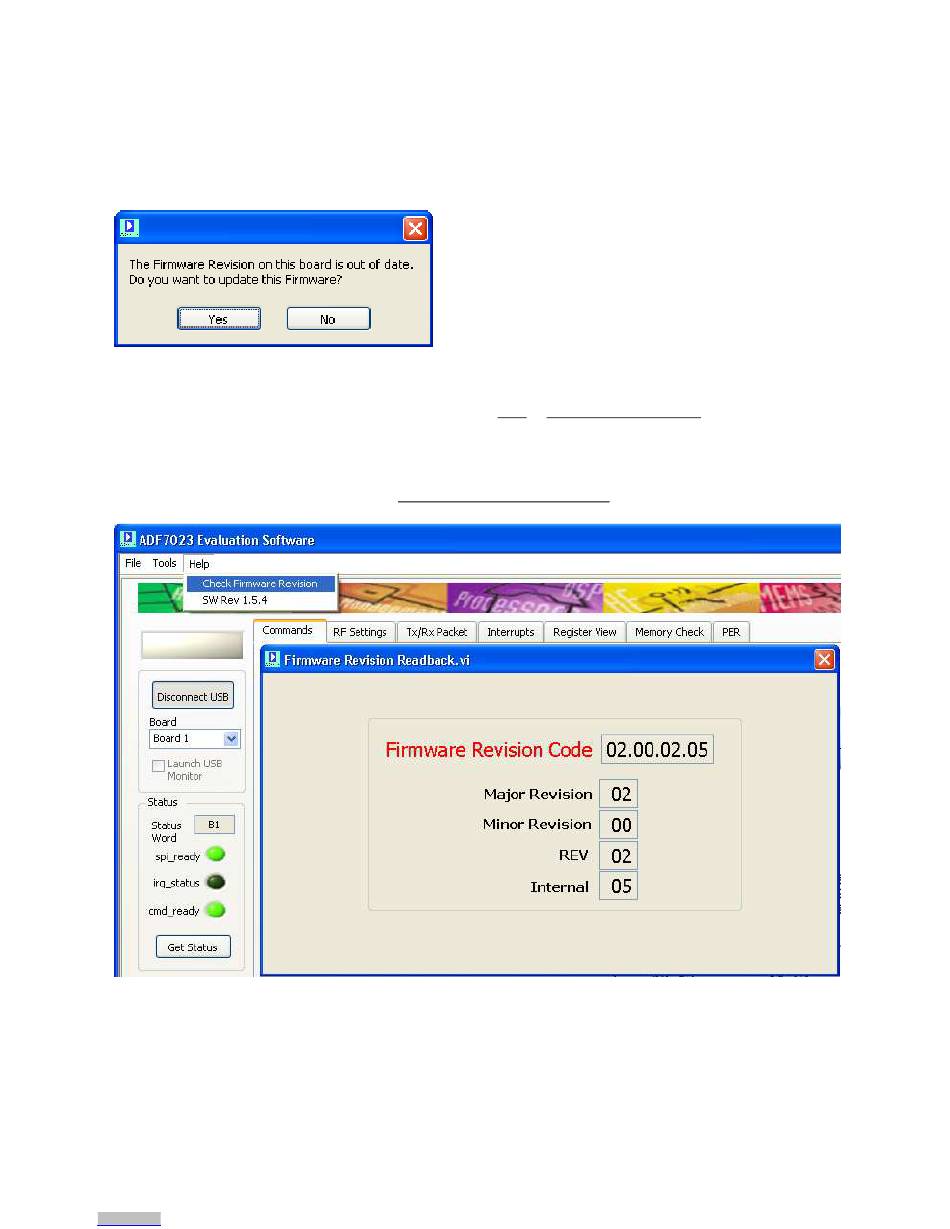

The Motherboard firmware revision check is done automatically when "Connect USB" is clicked. If the firmware revision
is not correct a popup screen will appear asking the user to update the Firmware (
To manually check the firmware after connecting the USB select Help -> Check Firmware Revision as shown in
Figure 21
Error! Reference source not found..
If this value is less than 02.00.02.05 then the firmware version will need to be updated.
Firmware update procedure can be found in the Mother Board Firmware Update section.
