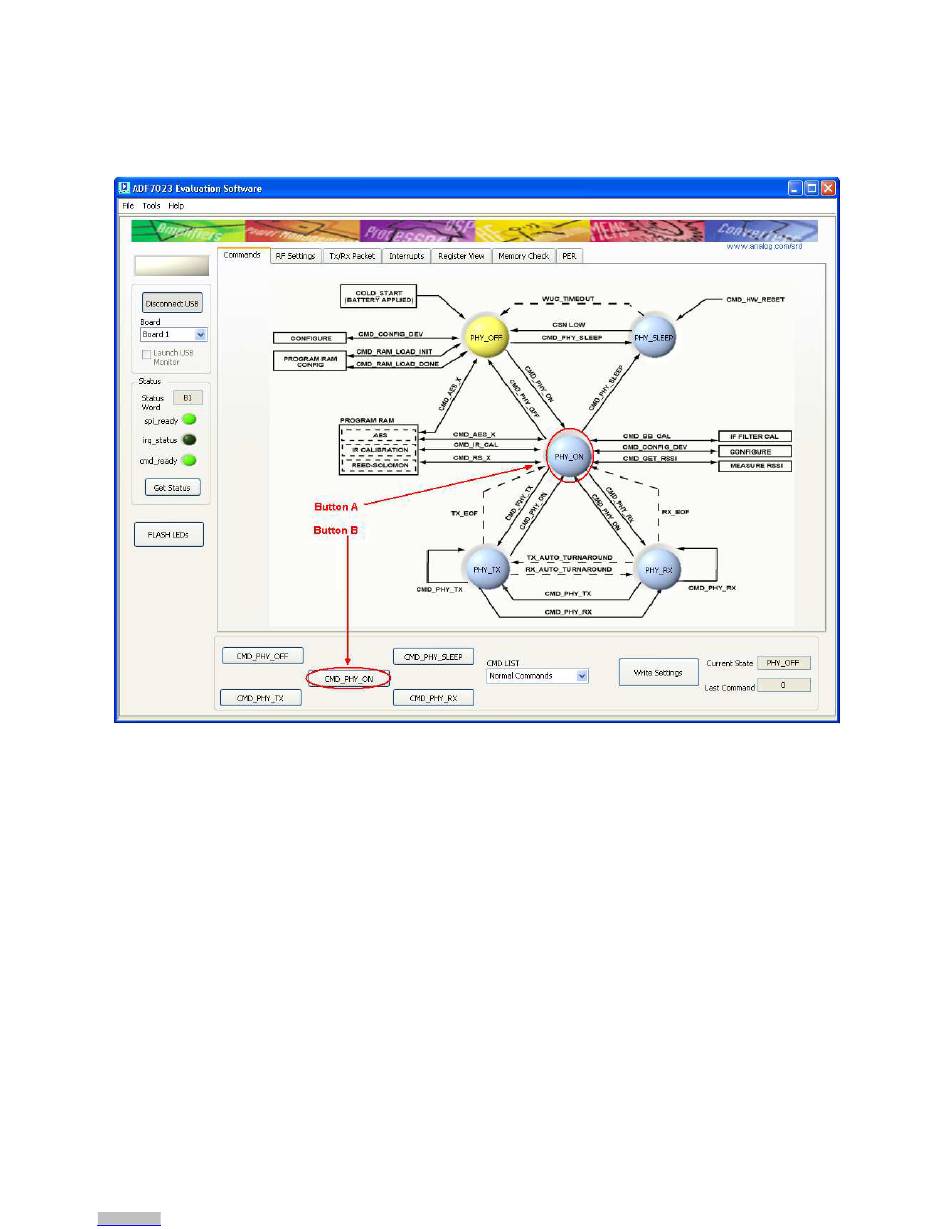

Next enter state PHY_ON by pressing the command CMD_PHY_ON.
This can be done by pressing Button A or Button B (
The current status of the ADF7023 will be reflected by the color of the buttons on the '' '' '' ''Commands
