12
CONNECTIONS AND MAINTENANCE

■ Microphone installation

Connect the supplied or optional HM-205 and the optional
HM-195* 1 /HM-229 to the transceiver using the connection
cable that comes with the transceiver or the microphone.
The cable is required to operate the transceiver from a
longer distance. You can also install the cable connector as
a built-in plug on a cabinet or wall.
To operate from even longer distances, connect the optional
6 meter long OPC-1541 extension cable between the
transceiver and the microphone.*
be added.
* 1 Not usable for the IC-M605EURO.
* 2 OPC-2384
coversion cable
and HM-195/HM-229 command microphone or OPC-1541
extension cable.
NOTE: The firmware of HM-195/HM-229 may be update
when you connect them to the transceiver.
D Installation
1. Insert the connection cable connector into the
microphone connector or the command microphone
jack, and tighten the nut.
2. To use the cable connector as a wall socket, install it as
shown to the right.
3. Using the mounting base as a template, carefully
mark the holes where the cable and 3 screws will be
fastened.
98 98
2 Up to two OPC-1541 can
is required to connect the transceiver
4. Drill holes at these marks.

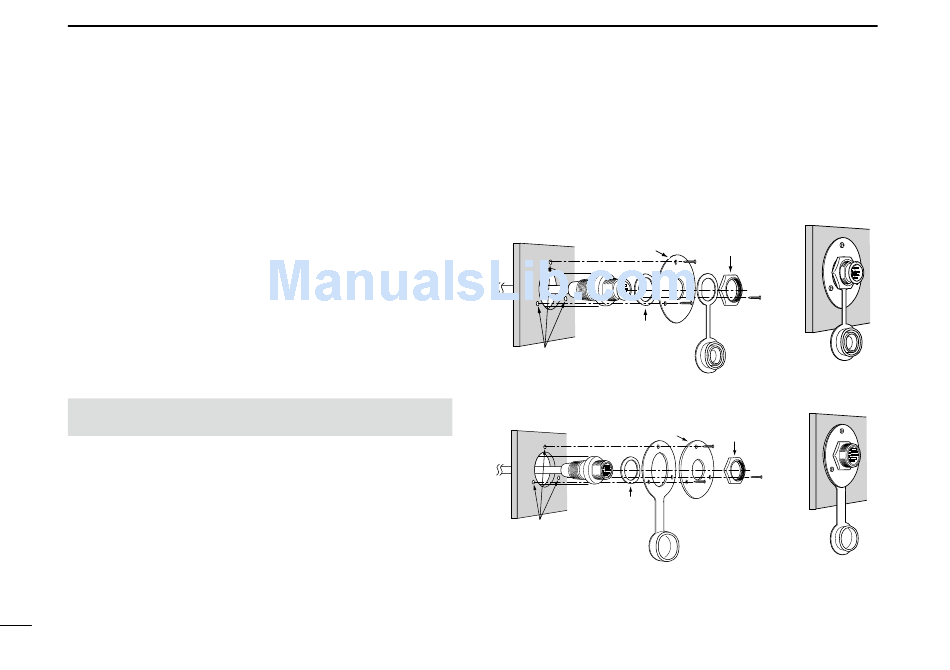

5. Install the mounting base using the supplied screws, as
shown below.
• HM-205
Mounting base
Gasket
Screw holes
(approximately 2 (d) mm, 1 / inch)
16
• HM-195/HM-229
Mounting base
Gasket
Screw holes
(approximately 2 (d) mm,
1 / inch)
16
Nut
Cap
Nut
Cap
