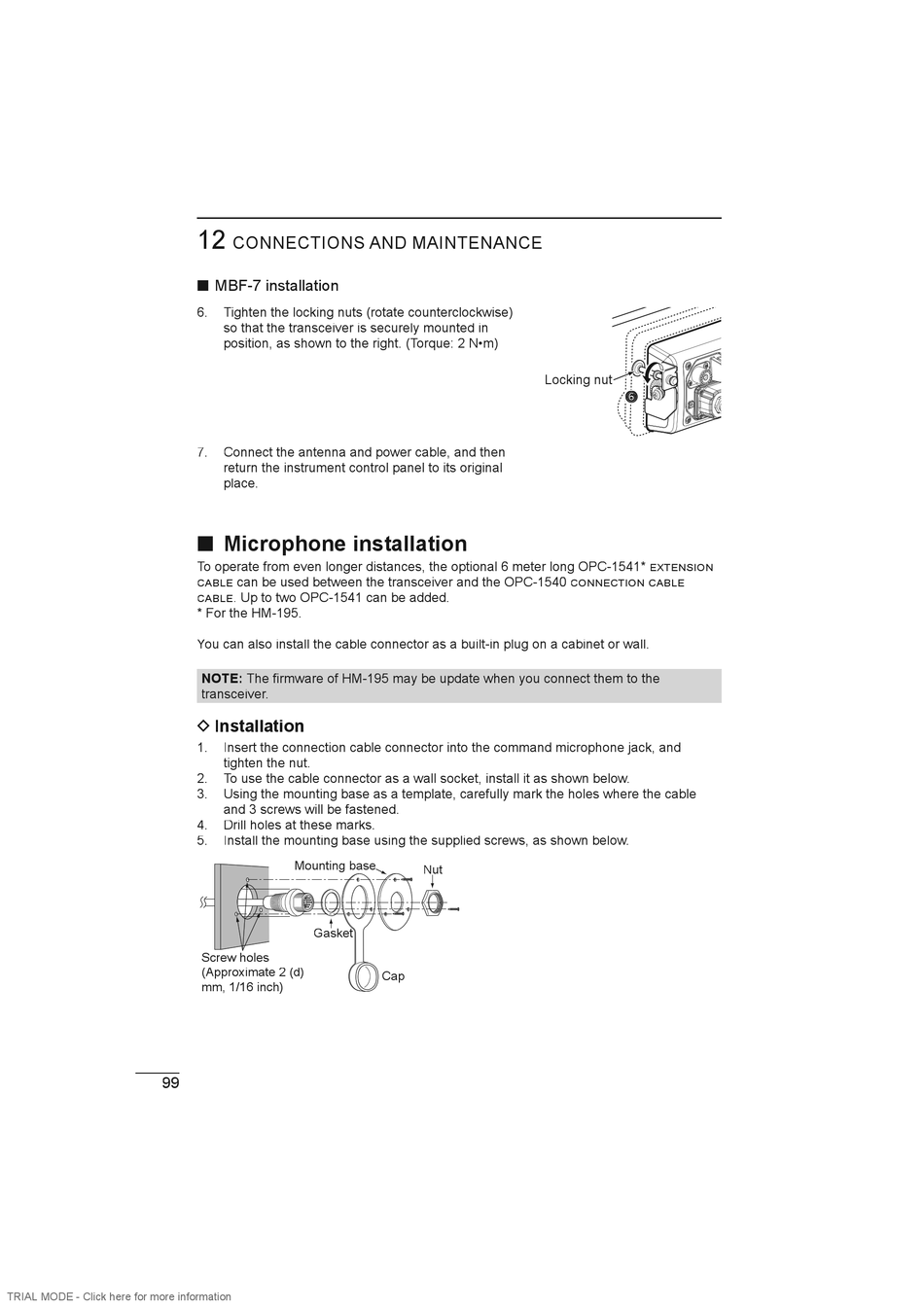

CONNECTIONS AND MAINTENANCE
■ MBF-7 installation
6.
Tighten the locking nuts (rotate counterclockwise)
so that the transceiver is securely mounted in
position, as shown to the right. (Torque: 2 N•m)
7.
Connect the antenna and power cable, and then
return the instrument control panel to its original
place.
■ Microphone installation
To operate from even longer distances, the optional 6 meter long OPC-1541*
can be used between the transceiver and the OPC-1540
. Up to two OPC-1541 can be added.
* For the HM-195.
You can also install the cable connector as a built-in plug on a cabinet or wall.
NOTE:
transceiver.
D Installation
1.
Insert the connection cable connector into the command microphone jack, and
tighten the nut.
2.
To use the cable connector as a wall socket, install it as shown below.
3.
Using the mounting base as a template, carefully mark the holes where the cable
and 3 screws will be fastened.
4.
Drill holes at these marks.
5.
Install the mounting base using the supplied screws, as shown below.
Mounting base
Gasket
Gasket
Screw holes
mm, 1/16 inch)
Locking nut
Nut
Cap
ut
