4.4.1.5 One Line Mode #2
In One Line mode #2 format, data is received most significant bit first on the first DAI_SCLK after a
DAI_LRCK transition and is valid on the rising edge of DAI_SCLK. DAI_SCLK must operate at a 256 Fs
rate. DAI_LRCK identifies the start of a new frame and is equal to the sample period. DAI_LRCK is sam-
pled as valid on the same clock edge as the most significant bit of the first data sample and must be held
high for 128 DAI_SCLK periods. Each time slot is 24 bits wide, with the valid data sample left-justified with-
in the time slot. Valid data lengths are 16, 18, 20, or 24 bits. Valid samples rates for this mode are 32 kHz
to 96 kHz.
DAI_LRCK
DAI_SCLK
DAI_SDIN1 MSB
PWMOUTA1
24 clks
4.4.1.6 TDM Mode
In TDM mode format, data is received most significant bit first on the first DAI_SCLK after a DAI_LRCK
transition and is valid on the rising edge of DAI_SCLK. DAI_SCLK must operate at a 256 Fs rate.
DAI_LRCK identifies the start of a new frame and is equal to the sample period. DAI_LRCK is sampled
as valid on the proceeding clock edge as the most significant bit of the first data sample and must be held
valid for at least 1 DAI_SCLK period. Each time slot is 32 bits wide, with the valid data sample left-justified
within the time slot. Valid data lengths are 16, 18, 20, 24 or 32 bits. Valid samples rates for this mode are
32 kHz to 96 kHz.
DAI_LRCK
DAI_SCLK
DAI_SDIN1 MSB
PWMOUTA1
32 clks
DS633F1
128 clks
Left Channels
LSB MSB LSB MSB
PWMOUTA2 PWMOUTA3
24 clks 24 clks

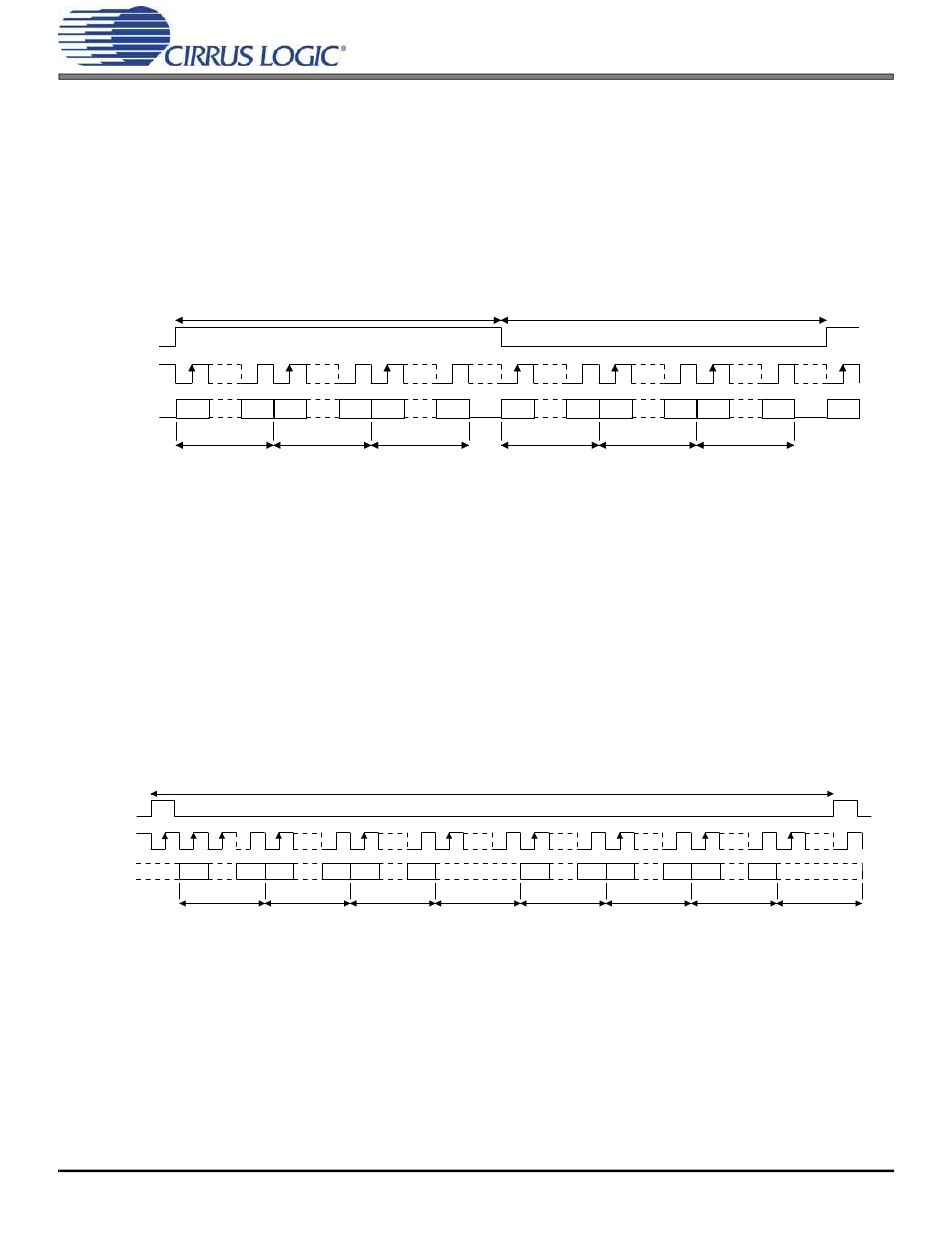

Figure 21. One Line Mode #2 Serial Audio Format
LSB MSB LSB MSB LSB
PWMOUTA2 PWMOUTA3
32 clks 32 clks
Figure 22. TDM Mode Serial Audio Format
LSB MSB LSB MSB
PWMOUTB1 PWMOUTB2
24 clks
256 clks
MSB LSB MSB
PWMOUTB1 PWMOUTB2
32 clks 32 clks
CS44600
128 clks
Right Channels
LSB MSB LSB
PWMOUTB3
24 clks 24 clks
LSB MSB LSB
PWMOUTB3
32 clks 32 clks 32 clks
MSB
