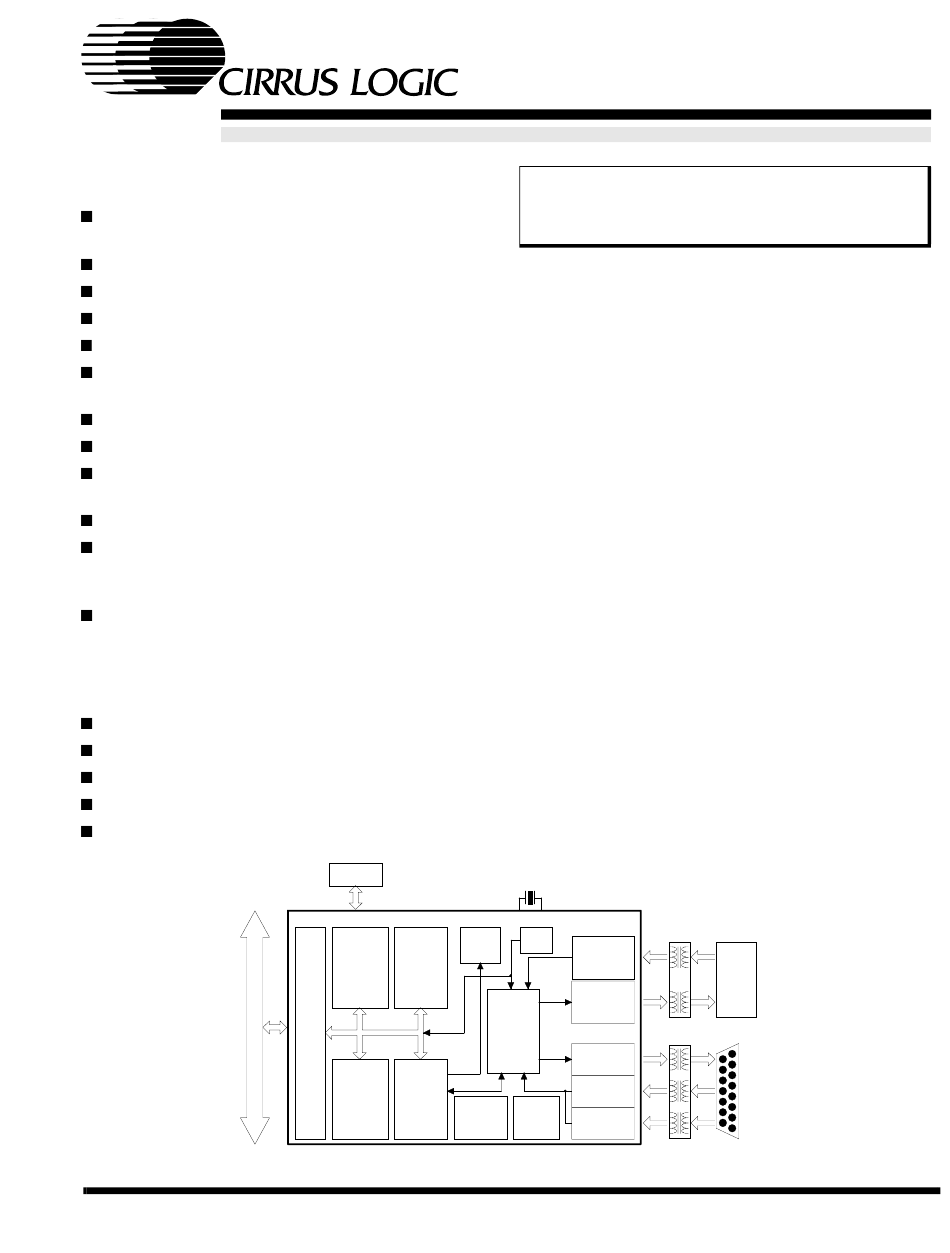

Cirrus Logic Crystal LAN CS8900A Series Product Data Sheet

Hide thumbs Also See for Crystal LAN CS8900A Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
FEATURES
Single-Chip IEEE 802.3 Ethernet Controller with
Direct ISA-Bus Interface
Maximum Current Consumption = 55 mA (5V Supply)
3 V Operation
Industrial Temperature Range
Comprehensive Suite of Software Drivers Available
Efficient PacketPage™ Architecture Operates in
I/O and Memory Space, and as DMA Slave
Full Duplex Operation
On-Chip RAM Buffers Transmit and Receive Frames
10BASE-T Port with Analog Filters, Provides:
— Automatic Polarity Detection and Correction
AUI Port for 10BASE2, 10BASE5 and 10BASE-F
Programmable Transmit Features:
— Automatic Re-transmission on Collision
— Automatic Padding and CRC Generation
Programmable Receive Features:
— Stream Transfer™ for Reduced CPU Overhead
— Auto-Switch Between DMA and On-Chip Memory
— Early Interrupts for Frame Pre-Processing
— Automatic Rejection of Erroneous Packets
EEPROM Support for Jumperless Configuration
Boot PROM Support for Diskless Systems
Boundary Scan and Loopback Test
LED Drivers for Link Status and LAN Activity
Standby and Suspend Sleep Modes
I
S
A
DS271PP3
EEPROM
CS8900A ISA Ethernet Controller
LED
Control
EEPROM
RAM
Control
ISA
Bus
Logic
802.3
Memory
MAC
Boundary
Manager
Engine
Scan
Test Logic
CIRRUS LOGIC PRODUCT DATA SHEET
Copyright © Cirrus Logic, Inc. 1999
(All Rights Reserved)
&U\VWDO /$1 ™ ISA Ethernet
Controller
DESCRIPTION
The CS8900A is a low-cost Ethernet LAN Controller op-
timized for Industry Standard Architecture (ISA)
Personal Computers. Its highly-integrated design elimi-
nates the need for costly external components required
by other Ethernet controllers. The CS8900A includes
on-chip RAM, 10BASE-T transmit and receive filters,
and a direct ISA-Bus interface with 24 mA Drivers.
In addition to high integration, the CS8900A offers a
broad range of performance features and configuration-
options.
Its
unique
automatically adapts to changing network traffic pat-
terns and available system resources. The result is
increased system efficiency.
The CS8900A is available in a 100-pin TQFP package-
ideally suited for small form-factor, cost-sensitive
Ethernet applications. With the CS8900A, system engi-
neers can design a complete Ethernet circuit that
occupies less than 1.5 square inches (10 sq. cm) of
board space.
ORDERING INFORMATION
CS8900A-CQ
CS8900A-IQ
CS8900A-CQ3 0° to 70° C
CS8900A-IQ3
CRD8900A-1
20 MHz
XTAL
Clock
10BASE-T
RX Filters &
Receiver
10BASE-T
TX Filters &
Encoder/
Transmitter
Decoder
&
PLL
AUI
Transmitter
AUI
Collision
Power
AUI
Manager
Receiver
CS8900A
Product Data Sheet
PacketPage
architecture
0° to 70° C
5V
TQFP-100
-40° to 85° C 5V
TQFP-100
3.3V
TQFP-100
-40° to 85° C 3.3V
TQFP-100
Evaluation Kit
RJ-45 10BASE-T
Attachment
Unit
Interface
(AUI)
MAR '99
