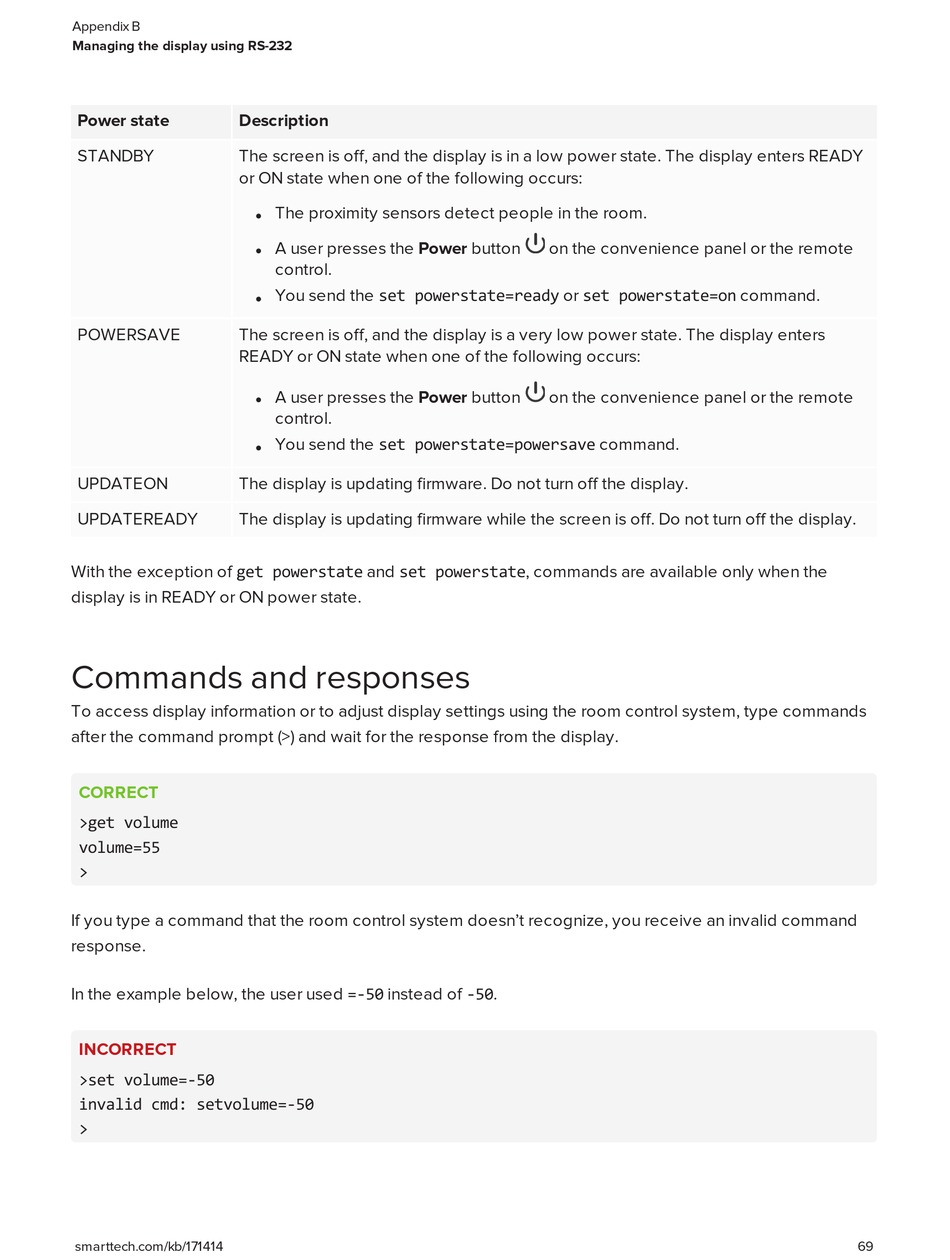

Appendix B
Managing the display using RS-232
Power state Description
STANDBY The screen is off, and the display is in a low power state. The display enters READY
or ON state when one of the following occurs:
POWERSAVE The screen is off, and the display is a very low power state. The display enters
READY or ON state when one of the following occurs:
UPDATEON The display is updating firmware. Do not turn off the display.
UPDATEREADY The display is updating firmware while the screen is off. Do not turn off the display.
With the exception of get powerstate and set powerstate, commands are available only when the
display is in READY or ON power state.

Commands and responses

To access display information or to adjust display settings using the room control system, type commands
after the command prompt (>) and wait for the response from the display.
CORRECT
>get volume
volume=55
>
If you type a command that the room control system doesn't recognize, you receive an invalid command
response.
In the example below, the user used =-50 instead of -50.
INCORRECT
>set volume=-50
invalid cmd: setvolume=-50
>
smarttech.com/kb/171414
The proximity sensors detect people in the room.
l
A user presses the Power button
l
control.
You send the set powerstate=ready or set powerstate=on command.
l
A user presses the Power button
l
control.
You send the set powerstate=powersave command.
l
on the convenience panel or the remote
on the convenience panel or the remote
69
