The PowerCube-M2 modules' grounding is based on metal directly
touch between the module's surface and rack's surface. So it needn't
grounding cables at all. If uses normal rack, remove the paint at the
corresponding place.

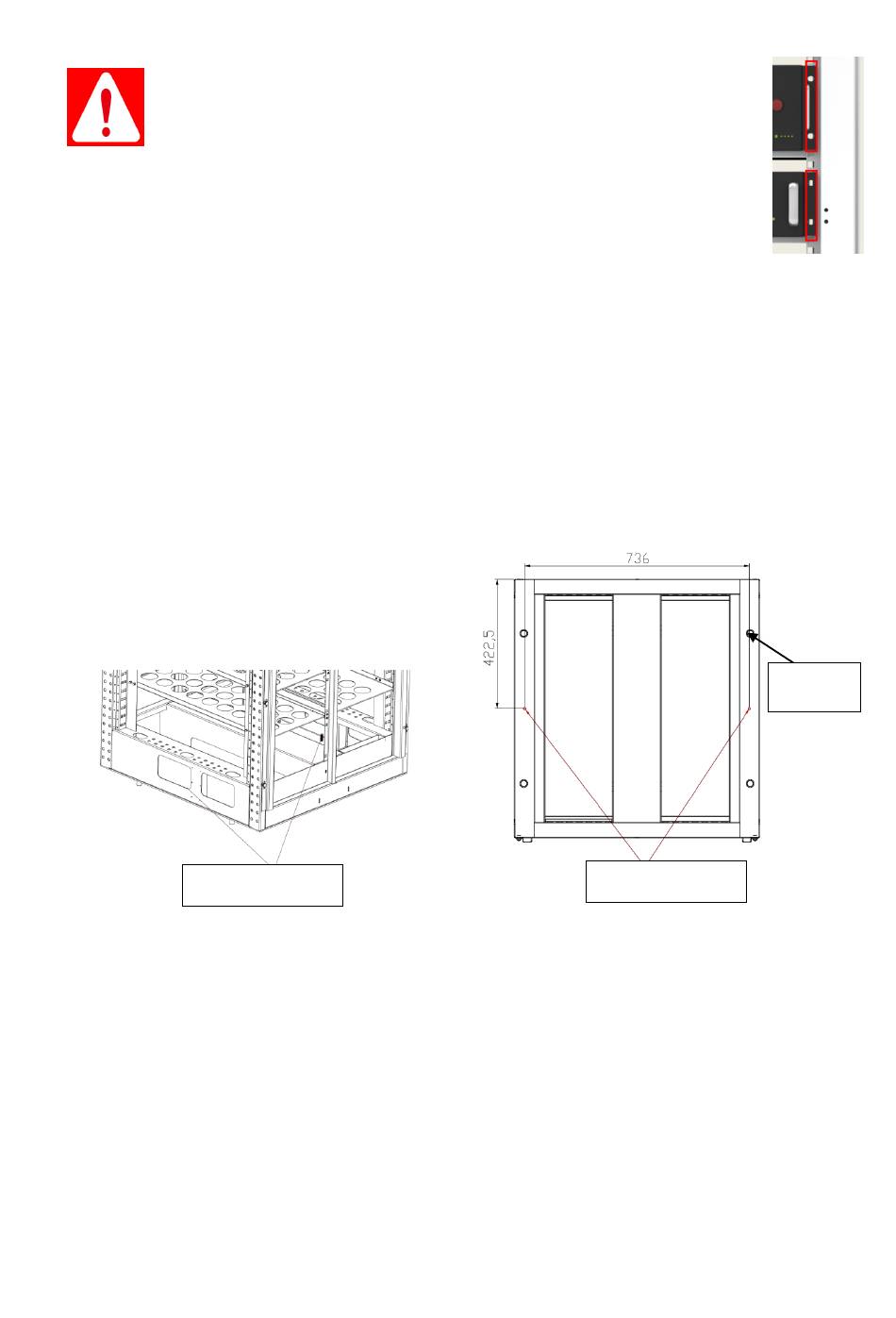

Rack Grounding:
If there is a grounding metal frame outside the rack, for example, the metal angle steel frame at
the bottom of the container, the fix hole of the fix frame can be fixed directly with the metal
frame of the container. Then through the grounding of the container to ensure reliable
grounding.
The cable shall be copper with yellow-green color.
If want to connect the ground cable, it can be connected to the M8 grounding bolt on the
frame base. Grounding cable must be ≥4AWG.
Grounding Bolt

3.6.2 Cables Connection

Note: The terminal has a plastic cover, which must use attached special tool to. Insert the tool
into the 4 holes of the cover.
Grounding Bolt
24
Fix Hole
× 4
