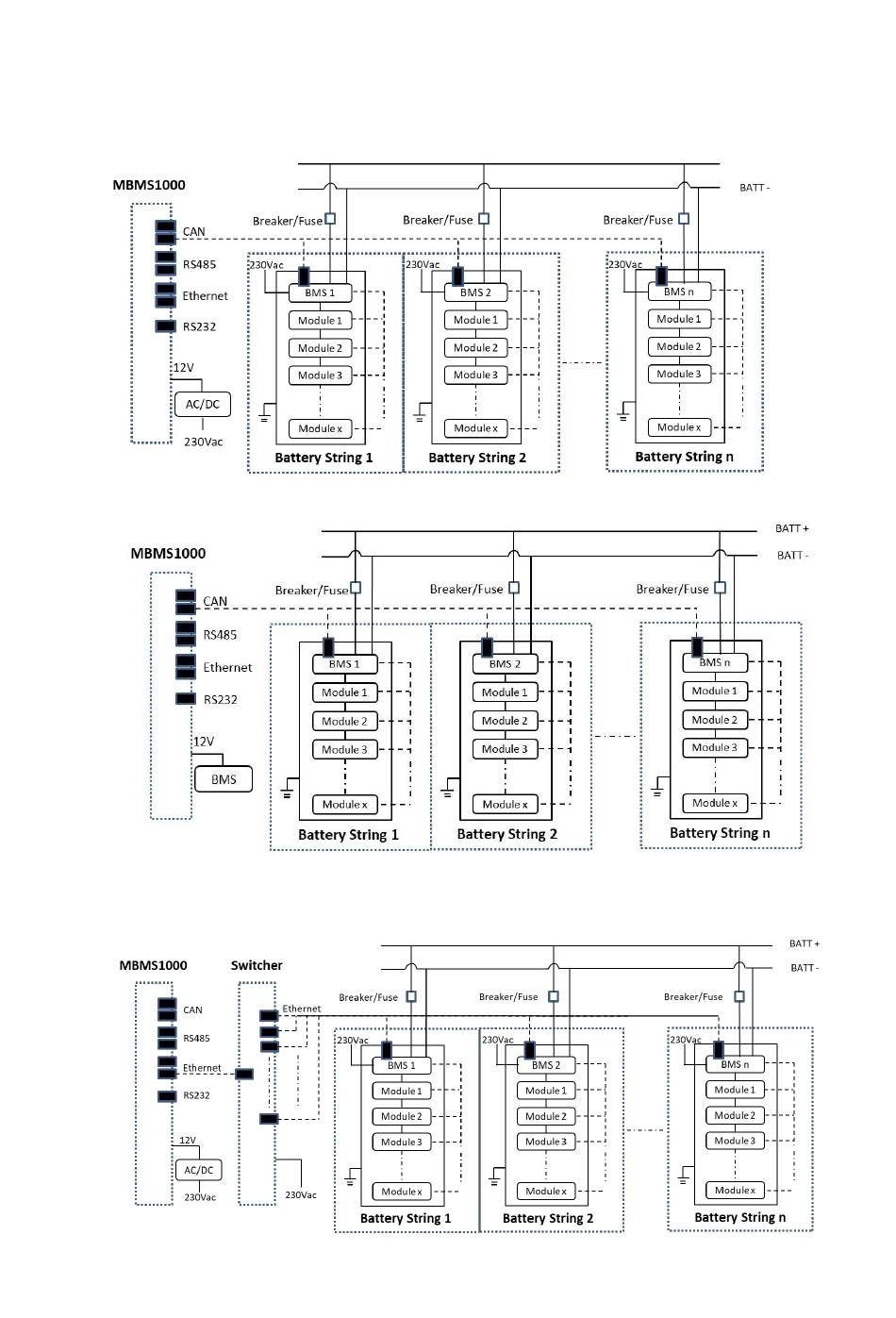

2.3 System Diagram
2.3.1 Multiple battery string parallel connection by CAN communication between MBMS and
BMS diagram (battery string qty. ≤6)
2.3.1.1 External power supply block
2.3.1.2 Internal power supply block
2.3.2 Multi battery string parallel connection by Ethernet communication between MBMS and
BMS diagram (battery string qty. ≥1 set)
