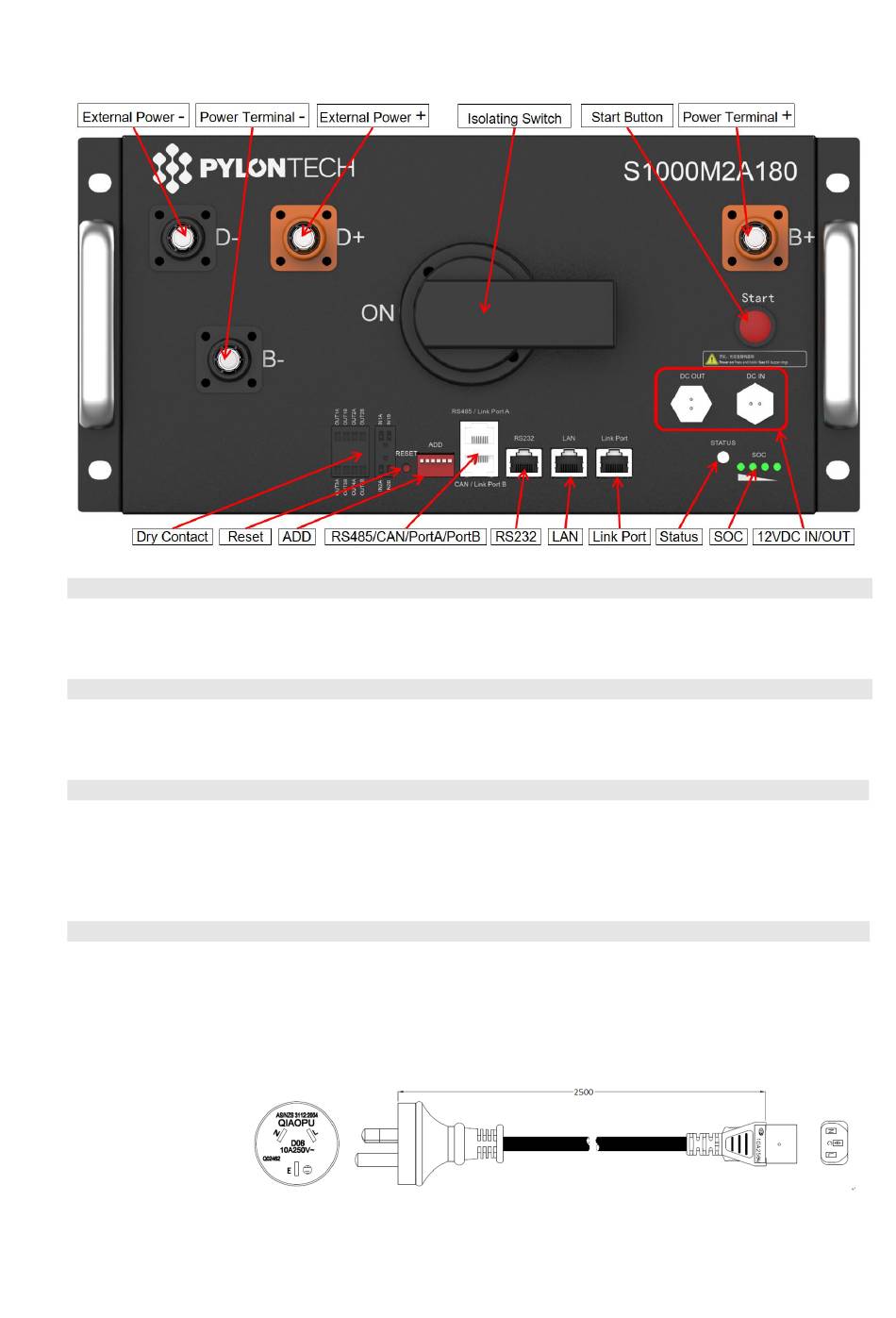

Control Module (S1000M2A180J)
External Power Terminal D+/D-
Connect battery system with Inverter.
Power Terminal B+/B-
To connect battery power cables in series.
12VDC In / Out
In: For input 12Vdc/10Amps to power supply the BMS separately.
OUT: Power supply for MBMS, to connect with MBMS' 12VDC IN.
AC Input
AC Socket and Control Module Power Switch: External power supply Control Module has an
Australia or Europe standard AC Power input socket and power switch. It is applied with UPS
system.
Australia Standard
Front Interface
