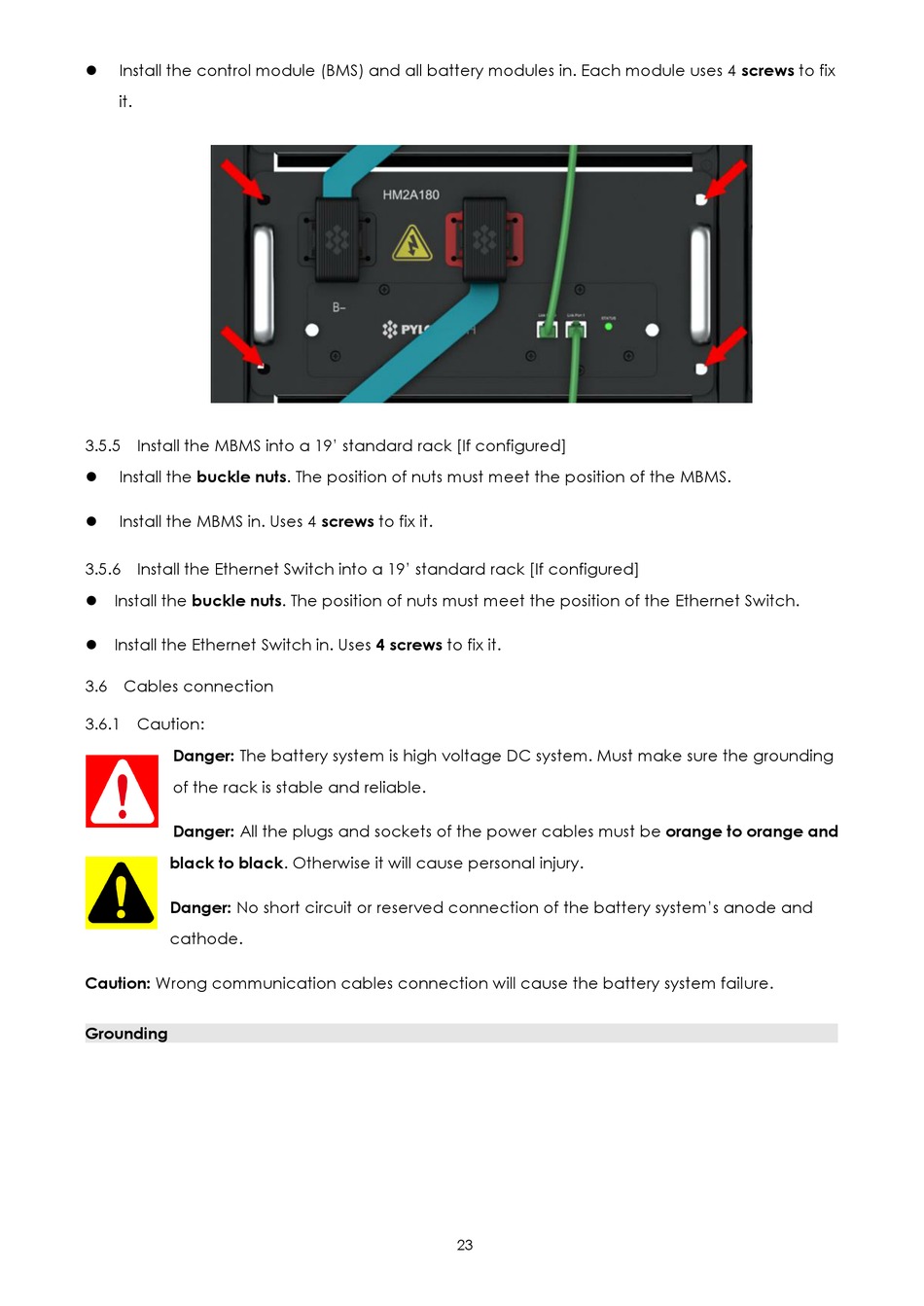

Install the control module (BMS) and all battery modules in. Each module uses 4 screws to fix

it.

3.5.5 Install the MBMS into a 19' standard rack [If configured]

Install the buckle nuts. The position of nuts must meet the position of the MBMS.

Install the MBMS in. Uses 4 screws to fix it.


3.5.6 Install the Ethernet Switch into a 19' standard rack [If configured]

Install the buckle nuts. The position of nuts must meet the position of the Ethernet Switch.

Install the Ethernet Switch in. Uses 4 screws to fix it.


3.6 Cables connection

3.6.1 Caution:

Danger: The battery system is high voltage DC system. Must make sure the grounding
of the rack is stable and reliable.
Danger: All the plugs and sockets of the power cables must be orange to orange and
black to black. Otherwise it will cause personal injury.
Danger: No short circuit or reserved connection of the battery system's anode and
cathode.
Caution: Wrong communication cables connection will cause the battery system failure.
Grounding
