Under Ethernet Communication Between Mbms And Bms (Battery String Qty. 1~32 Set); Mbms Communication Mode - Pylontech PowerCube-M2 Operation Manual

The address is configured follow ASCII code: ("X" is terminal resistance).

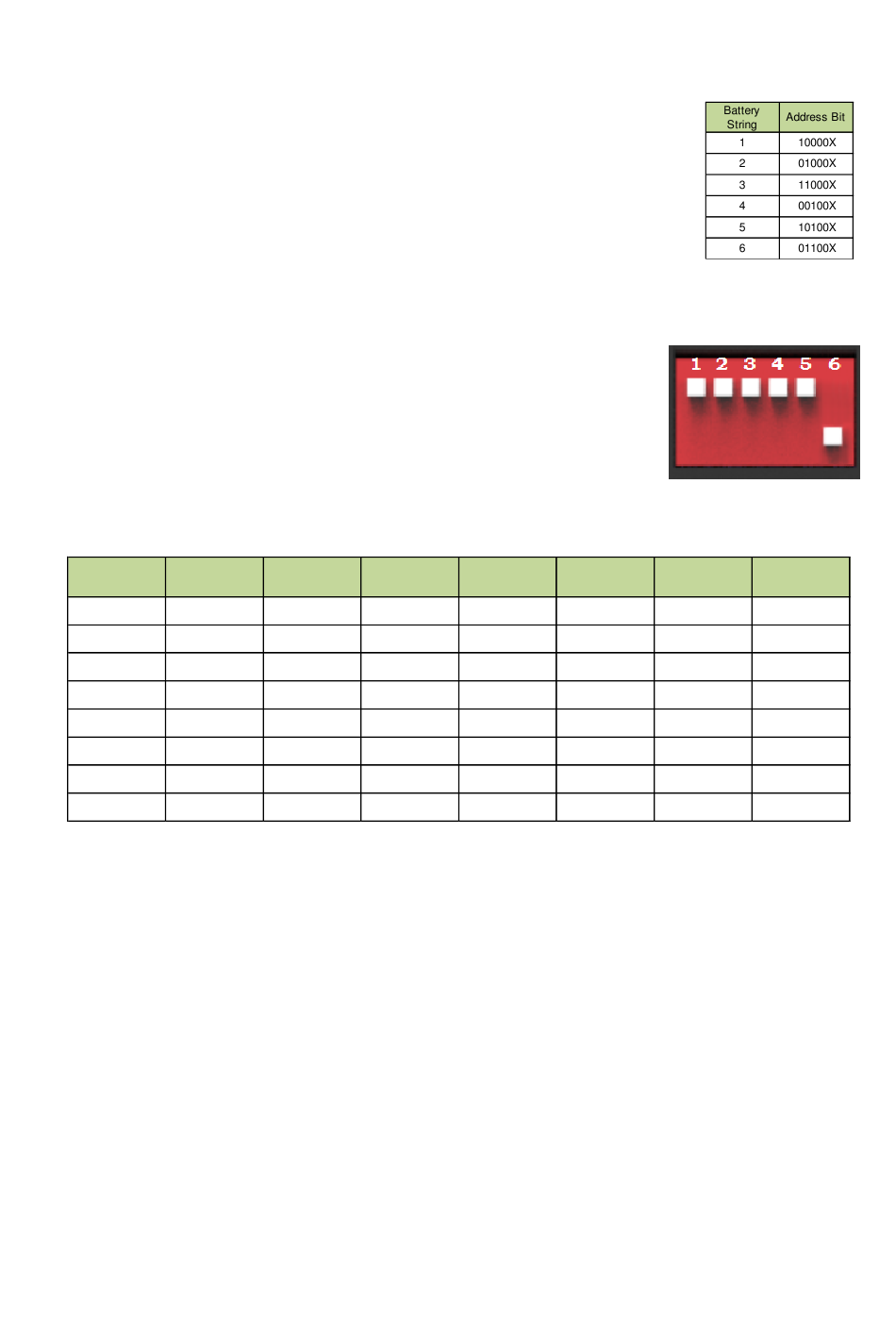

BMS's Address Configure Table:
The MBMS's ADD Switch set with "000011". The last 2 bits are terminal
resistances.
Note: the 1 to 4 bit dial for MBMS refer to 3.6.3.4.
st th

3.6.3.3 Under Ethernet communication between MBMS and BMS (battery string qty. 1~32 set)

The BMS's first five bits must set in above <BMS's Address Configure
Table>. The BMS' terminal resistance must set in "0".
The address is configured follow ASCII code: ("X" is terminal
resistance).
BMS's Address Configure Table:
Battery
Address Bit
String
1 10000X
2 01000X
3 11000X
4 00100X
5 10100X
6 01100X
7 11100X
8 00010X
The MBMS's ADD Switch set with "000011". The last 2 bits are terminal resistances.
Note: the 1 to 4 bit dial for MBMS refer to 3.6.3.4.
st th

3.6.3.4 MBMS Communication Mode

In some project it configures multi Energy Storage Systems. In this case will have multi MBMS. The
address of MBMS must follow <MBMS's Address Configure Table>
Battery
Address Bit
String
9 10010X
10 01010X
11 11010X
12 00110X
13 10110X
14 01110X
15 11110X
16 00001X
Battery
Address Bit
String
17 10001X
18 01001X
19 11001X
20 00101X
21 10101X
22 01101X
23 11101X
24 00011X
29
Battery
Address Bit
String
25 10011X
26 01011X
27 11011X
28 00111X
29 10111X
30 01111X
31 11111X
32 00000X
