3 - Hopper Module Replacement Procedure

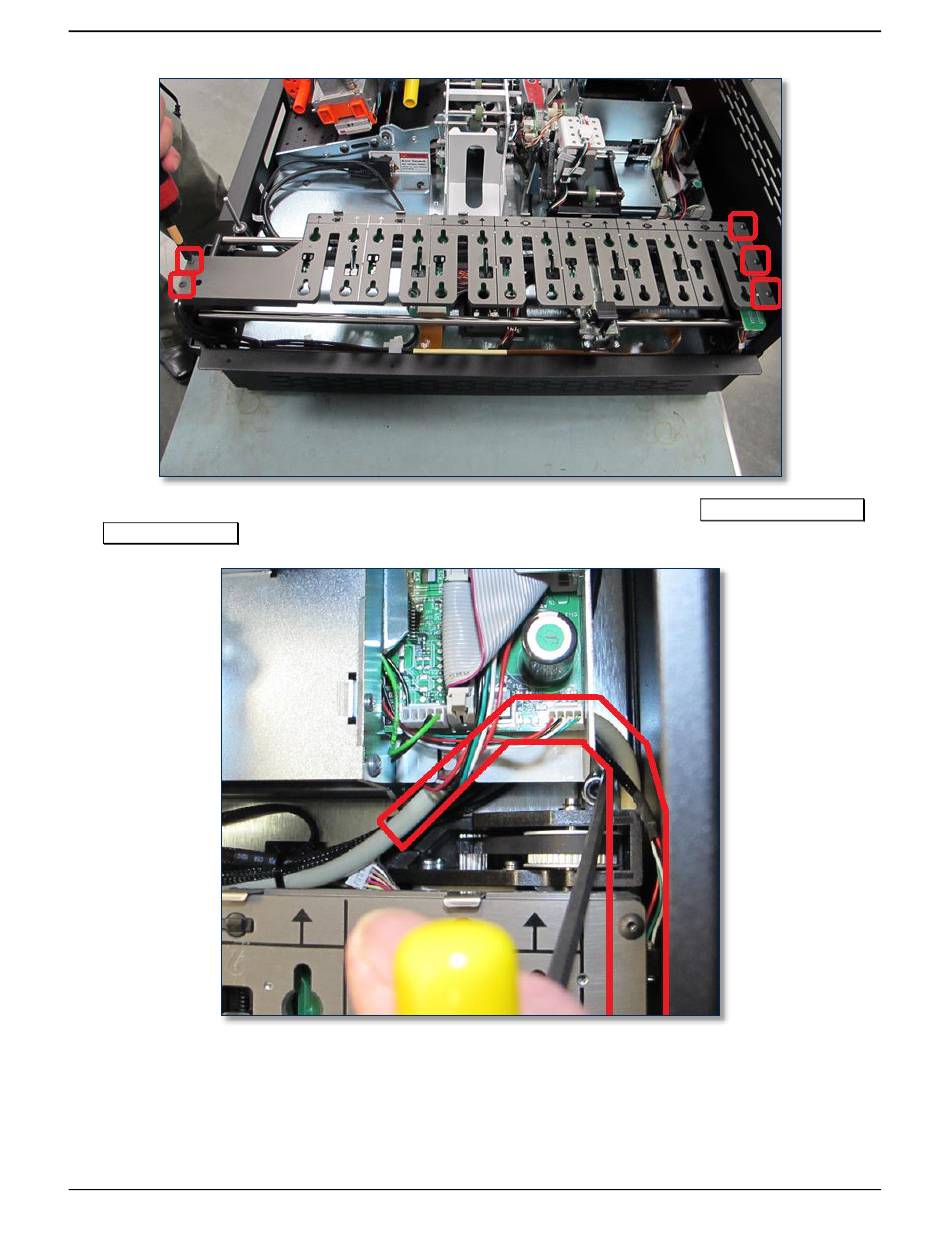

42) Use a hex wrench to push the thick, light-colored sensor cable and the smaller
HOME SENSOR
cable under the image printer shielding to take up any slack.
43) Trace the thick, light-colored cable to the circuit board on the hopper deck plate, and make sure there
is no slack in the two cables. They should be routed down toward the rear of the device and out of the
path of the hopper shuttle.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
Page 39 of 42 (D99875700-30)
HOPPER SHUTTLE
