3 - Hopper Module Replacement Procedure

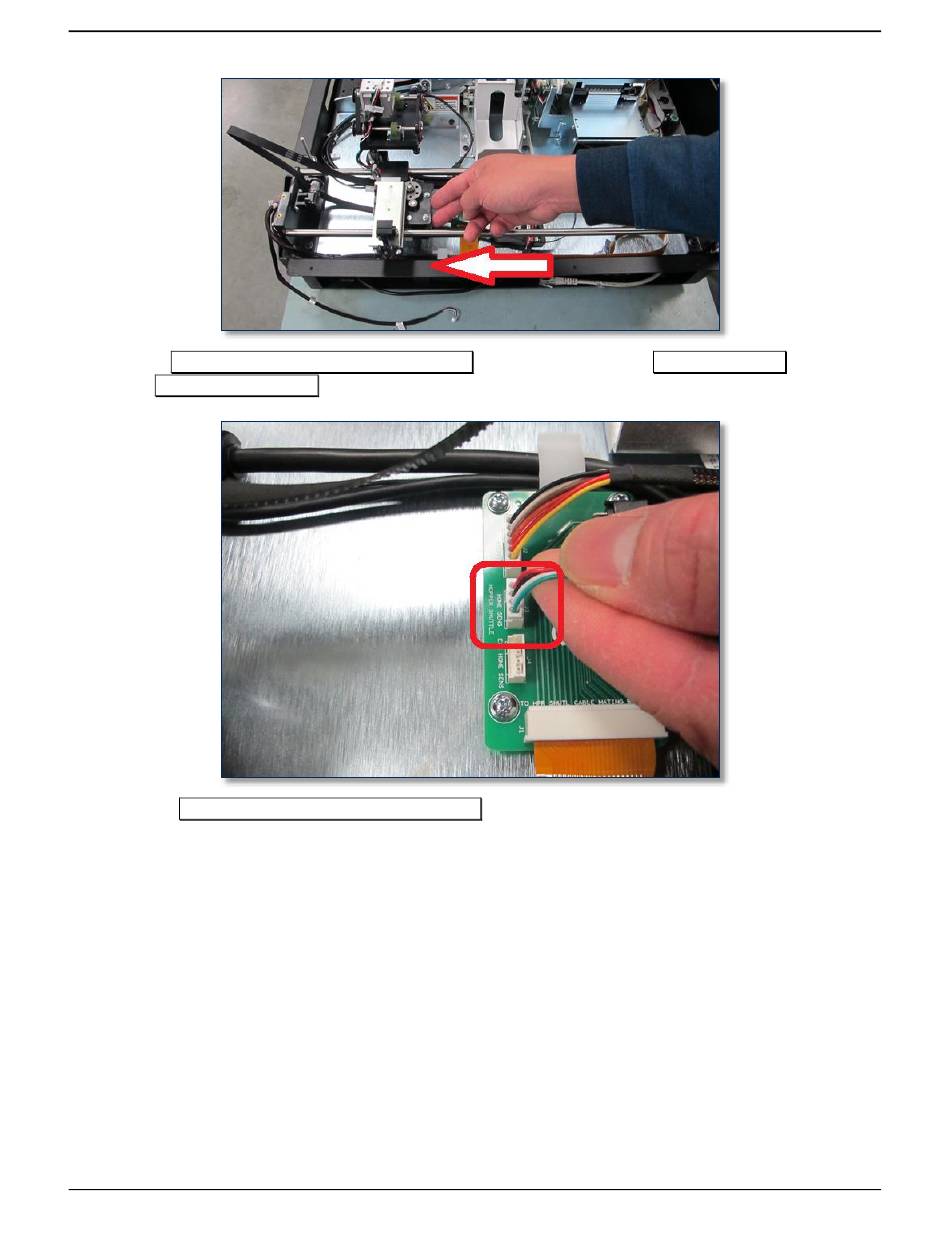

22) Find the
HOPPER SHUTTLE HOME SENSOR
on the
HOPPER SHUTTLE
23) Trace the
HOPPER SHUTTLE HOME SENSOR
ties holding it.
ExpressCard 2000| Instant Issuance Card Personalization System | Hopper Module Replacement Procedure
cable connected to the
circuit board and disconnect it.
cable back to the hopper module and cut any cable
Page 16 of 42 (D99875700-30)
J3 HOME SENS
connector
